Airbags


The front, front side, and side curtain airbags are deployed according to the direction and severity of impact. Both side curtain airbags are deployed in a rollover.

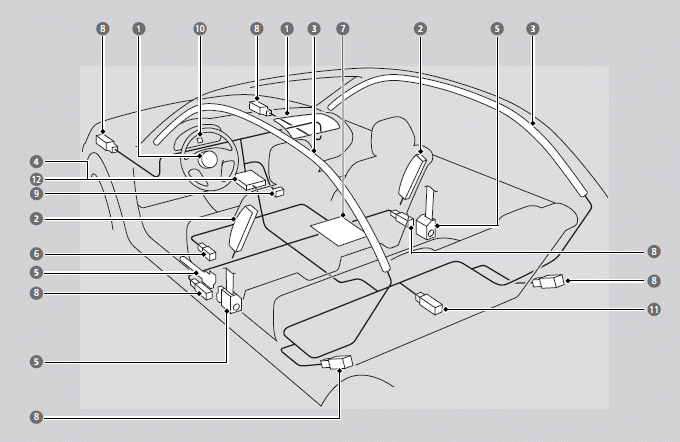

The airbag system includes:

  1. Two SRS (Supplemental Restraint System) front airbags. The driver's airbag is stored in the center of the steering wheel; the front passenger's airbag is stored in the dashboard. Both are marked SRS AIRBAG.
  2. Two side airbags, one for the driver and one for a front passenger. The airbags are stored in the outer edges of the seatbacks.

    Both are marked SIDE AIRBAG.

  3. Two side curtain airbags, one for each side of the vehicle. The airbags are stored in the ceiling, above the side windows.

    The front and rear pillars are marked SIDE CURTAIN AIRBAG.

  4. An electronic control unit that continually monitors and can record information about the sensors, the airbag activators, the seat belt tensioners, and driver and front passenger seat belt use when the ignition switch is in ON (II)*1.
  5. Automatic front seat belt tensioners. The driver's and front passenger's seat belts incorporate sensors that detect whether or not they are fastened.
  6. A driver's seat position sensor. If the seat is too far forward, the airbag will inflate with less force.
  7. Weight sensors in the front passenger's seat. The front passenger's airbag will be turned off if the weight on the seat is 65 lbs (29 kg) or less (the weight of an infant or small child).
  8. Impact sensors that can detect a moderate-to-severe front or side impact.
  9. An indicator near the shift lever that alerts you that the front passenger's front airbag has been turned off.
  10. An indicator on the instrument panel that alerts you to a possible problem with your airbag system or seat belt tensioners.
  11. Safing Sensor
  12. A rollover sensor that detects whether the vehicle is about to roll over.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

■Important Facts About Your Airbags

Airbags can pose serious hazards. To do their job, airbags must inflate with tremendous force. So, while airbags help save lives, they can cause burns, bruises, and other minor injuries, sometimes even fatal ones if occupants are not wearing their seat belts properly and sitting correctly.

What you should do: Always wear your seat belt properly, and sit upright and as far back from the steering wheel as possible while allowing full control of the vehicle. A front passenger should move their seat as far back from the dashboard as possible.

Remember, however, that no safety system can prevent all injuries or deaths that can occur in a severe crash, even when seat belts are properly worn and the airbags deploy.

Do not place hard or sharp objects between yourself and a front airbag.

Carrying hard or sharp objects on your lap, or driving with a pipe or other sharp object in your mouth, can result in injuries if your front airbag inflates.

Do not attach or place objects on the front airbag covers. Objects on the covers marked SRS AIRBAG could interfere with the proper operation of the airbags or be propelled inside the vehicle and hurt someone if the airbags inflate.

Do not attempt to deactivate your airbags. Together, airbags and seat belts provide the best protection.

When driving, keep hands and arms out of the deployment path of the front airbag by holding each side of the steering wheel. Do not cross an arm over the airbag cover.

Types of Airbags

Your vehicle is equipped with three types of airbags:

  • Front airbags: Airbags in front of the driver's and front passenger's seats.
  • Side airbags: Airbags in the driver's and front passenger's seat-backs.
  • Side curtain airbags: Airbags above the side windows.

Each is discussed in the following pages.

The airbags can inflate whenever the ignition switch is in ON II*1.

After an airbag inflates in a crash, you may see a small amount of smoke. This is from the combustion process of the inflator material and is not harmful.

People with respiratory problems may experience some temporary discomfort. If this occurs, get out of the vehicle as soon as it is safe to do so.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

    READ NEXT:

     Front Airbags (SRS)

    The front SRS airbags inflate in a moderate-to-severe frontal collision to help protect the head and chest of the driver and/or front passenger. SRS (Supplemental Restraint System) indicates that th

     Side Airbags

    The side airbags help protect the torso and pelvis of the driver or a front passenger during a moderate-to-severe side impact. Make sure you and your front seat passenger always sit upright. Leaning

     Side Curtain Airbags

    The side curtain airbags help protect the heads of the driver and passengers in outer seating positions during a moderate-to-severe side impact. The side curtain airbags equipped in this vehicle are
