Honda HR-V: HFL Menus

The ignition switch must be in ACCESSORY (I) or ON (II) to use HFL.

To use HFL, you must first pair your Bluetooth-compatible cell phone to the system while the vehicle is parked.

Some functions are limited while driving. A message appears on the screen when the vehicle is moving and the operation is canceled.

Bluetooth HandsFreeLink


Bluetooth HandsFreeLink


Bluetooth HandsFreeLink


Bluetooth HandsFreeLink


*1: Appears only when a phone is connected to HFL

■Phone Setup

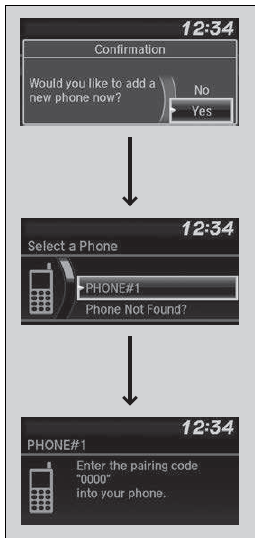

■ To pair a cell phone (No phone has been paired to the system)

1. Press the button or the
button.


2. Rotate to select Yes, then
press .


3. Make sure your phone is in search or discoverable mode, then press .


  • HFL automatically searches for a Bluetooth device.

4. When your phone appears on the list, select it by pressing .


  • If your phone doesn't appear, select Phone Not Found? and search for Bluetooth devices using your phone.

    From your phone, select HandsFreeLink.

5. The system gives you a pairing code on the audio/information screen.

  • Confirm if the pairing code on the screen and your phone match.

    This may vary by phone.

6. A notification appears on the screen if pairing is successful

Bluetooth HandsFreeLink


Your Bluetooth-compatible phone must be paired to HFL before you can make and receive hands-free calls.

Phone Pairing Tips:

  • You cannot pair your phone while the vehicle is moving.
  • Up to six phones can be paired.
  • Your phone's battery may drain faster when it is connected to HFL.
  • If your phone is not ready for pairing or not found by the system within three minutes, the system will time out and returns to idle.

Once you have paired a phone, you can see it displayed on the screen with one or two icons on the right side.

These icons indicate the following:

: The phone can be used
with HFL.

: The phone is compatible
with Bluetooth Audio.

■ To Change the currently paired phone

1. Press the button or the
button.


2. Rotate to select Phone Setup,
then press .


3. Rotate to select Bluetooth
Setup, then press .


4. Rotate to select Connect a
Phone, then press .


  • The screen changes to a device list.

5. Rotate to select a desired
device name, then press .


  • HFL disconnects the connected phone and starts searching for another paired phone.

Bluetooth HandsFreeLink

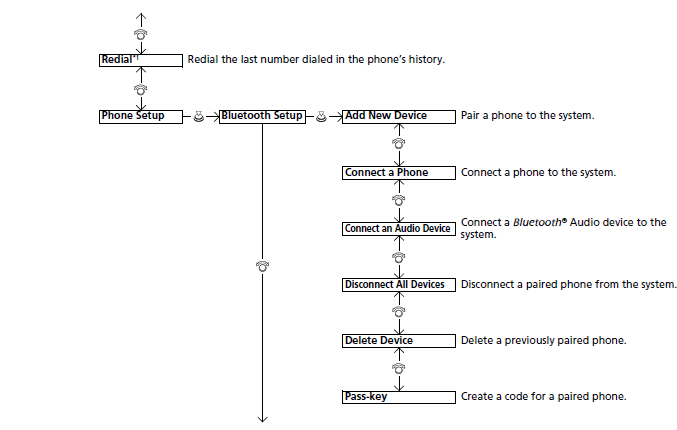

You can pair a phone in the following steps.

Phone Setup Bluetooth
Setup
Add New
Device
confirmation
message
Yes

confirmation message
OK
Select a Phone

Pairing code.

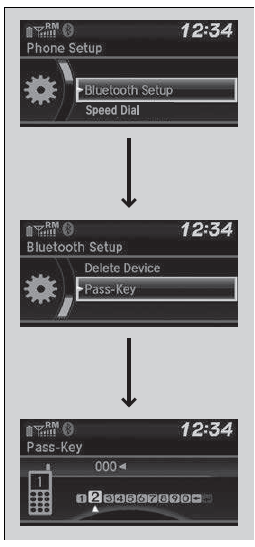

■ To change the pairing code setting

1. Press the button or the
button.


2. Rotate to select Phone Setup,
then press .


3. Rotate to select Bluetooth
Setup, then press .


4. Rotate to select Pass-Key,
then press .


5. Input a new pairing code, then press .


Bluetooth HandsFreeLink

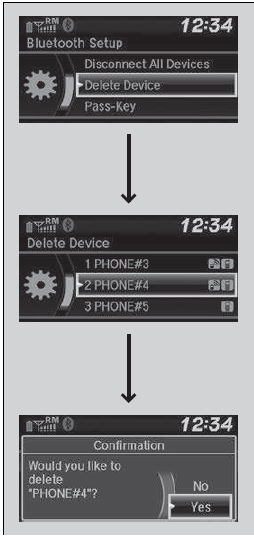

■ To delete a paired phone

1. Press the button or the
button.


2. Rotate to select Phone Setup,
then press .


3. Rotate to select Bluetooth
Setup, then press .


4. Rotate to select Delete
Device, then press .


  • The screen changes to a device list.

5. Rotate to select a phone
you want to delete, then press .


6. A confirmation message appears on the screen. Rotate to select Yes, then press .


Bluetooth HandsFreeLink


■Ring Tone

You can change the ring tone setting

1. Press the button or the
button.


2. Rotate to select Phone Setup,
then press .


3. Rotate to select Ringtone,
then press .


4. Rotate to select Fixed or
Mobile Phone, then press .


Bluetooth HandsFreeLink


Fixed: The fixed ring tone sounds from the speakers.

Mobile Phone: The ring tone stored in the connected cell phone sounds from the speakers.

■Caller's ID Information

You can select a caller's information to be displayed when you have an incoming call.

1. Press the button or the
button.


2. Rotate to select Phone Setup,
then press .


3. Rotate to select Caller ID
Info, then press .


4. Rotate to select a mode you
want, then press .



Name Priority: A caller's name is displayed if it is stored in the phonebook.

Number Priority: A caller's phone number is displayed.

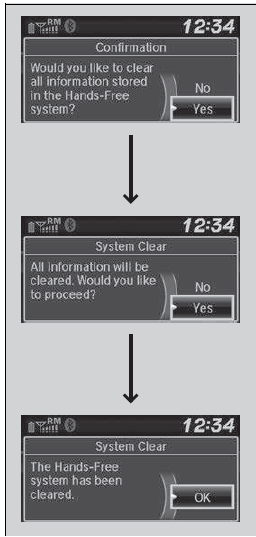

■To Clear the System

Pairing codes, paired phones, all stored voice tags, all speed dial entries, all call history data, and all imported phonebook data are erased.

1. Press the button or the
button.


2. Rotate to select Phone Setup,
then press .


3. Rotate to select System Clear,
then press .


4. Rotate to select Yes, then
press .


5. A confirmation message appears on the screen. Rotate to select Yes,
then press .


6. A notification appears on the screen. Press .


Bluetooth HandsFreeLink


■Automatic Import of Cellular Phonebook and Call History

When your phone is paired, the contents of its phonebook and call history are automatically imported to HFL.

Bluetooth HandsFreeLink


When you select a person from the list in the cellular phonebook, you can see up to three category icons.

The icons indicate what types of numbers are stored for that name.

Bluetooth HandsFreeLink


If a name has four or more numbers, ... appears instead of category icons.

On some phones, it may not be possible to import the category icons to HFL.

The phonebook is updated after every connection.

Call history is updated after every connection or call.
