Honda HR-V: DTC Advanced Diagnostics
DTC ADVANCED DIAGNOSTICS EPS RELATED DTCS
NOTE
DTC Advanced Diagnostics
- Initial Diagnosis: The initial on-board diagnosis occurs right after the vehicle condition is turned to the ON mode, and the EPS indicator comes on, and continues until the indicator goes off.
- Regular Diagnosis: The regular on-board diagnosis begins right after the EPS indicator goes off, and it continues until the vehicle condition is turned to the OFF (LOCK) mode.
- Review "How to troubleshoot the EPS system" before doing the DTC troubleshooting procedure.
- Test-drive the vehicle according to local traffic conditions and regulations. Do not test-drive on a lift unless specified.
- The possible causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

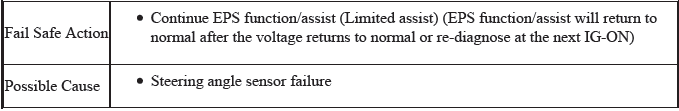

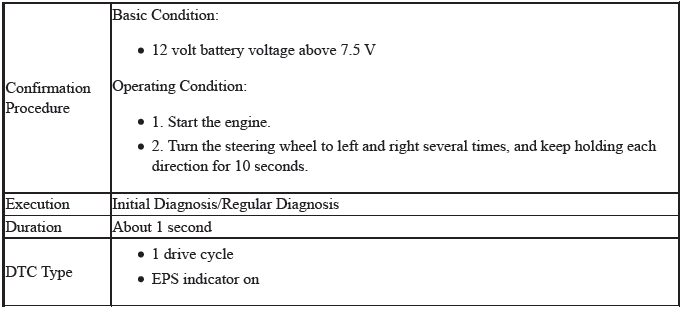

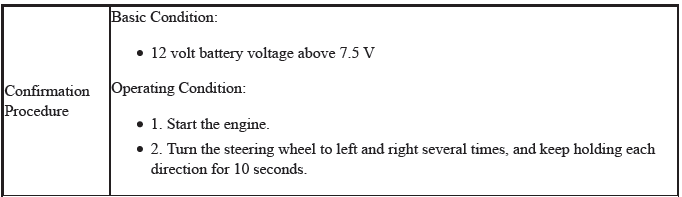

DTC C0051-96: Steering Angle Sensor Malfunction
.png)
.png)

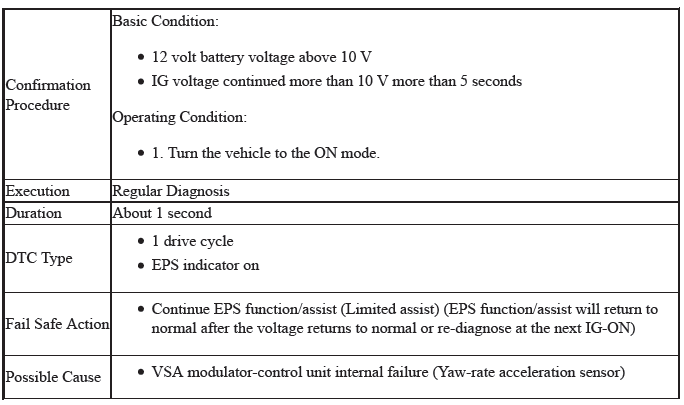

DTC C0063-96: Yaw-Rate Sensor Malfunction
.png)

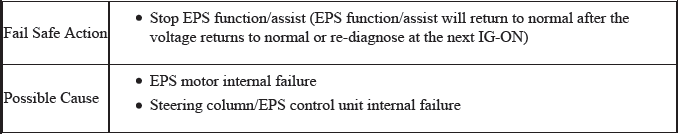

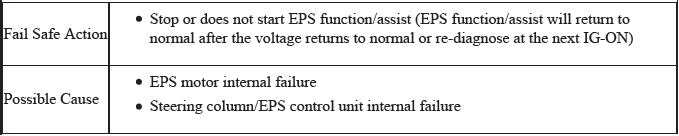

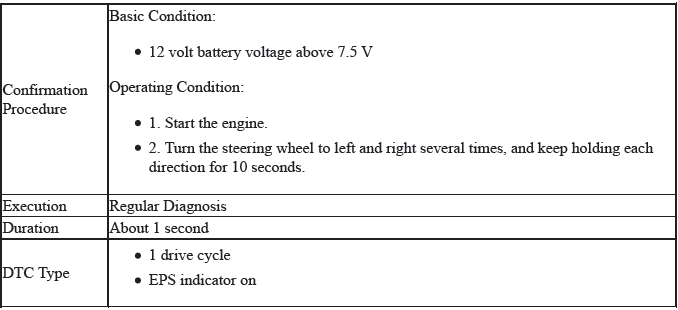

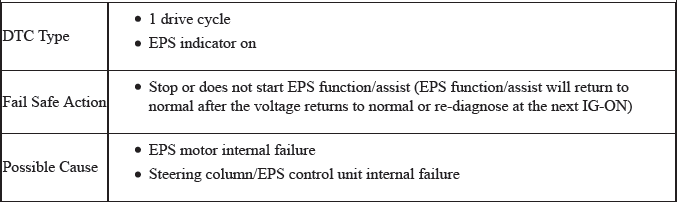

DTC C1400-13: EPS Motor Circuit Open
.png)
.png)

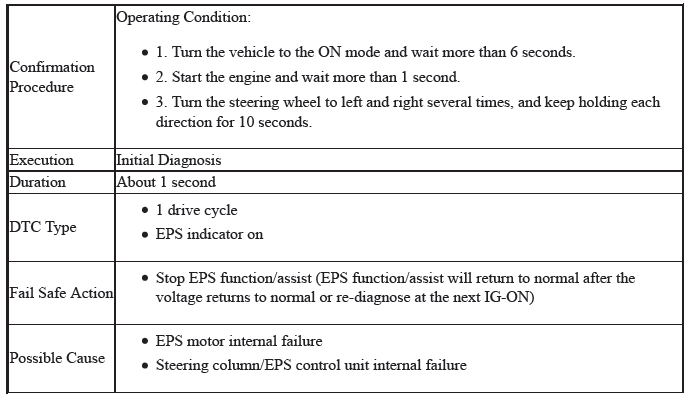

DTC C1400-14: Motor Voltage Malfunction
.png)

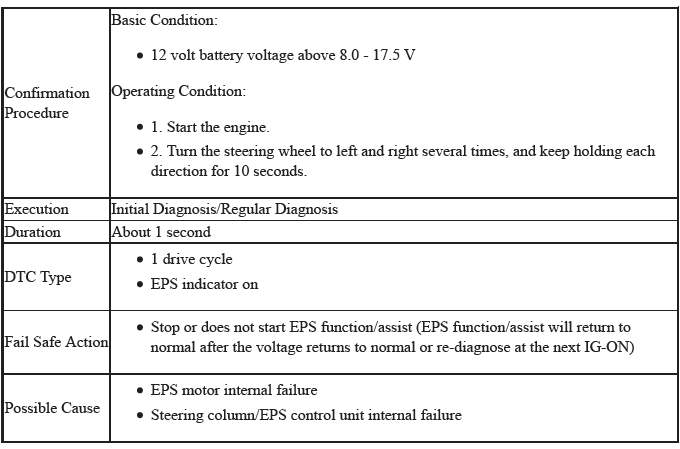

DTC C1400-1D: EPS Motor Current Incorrect Correlation
.png)
.png)

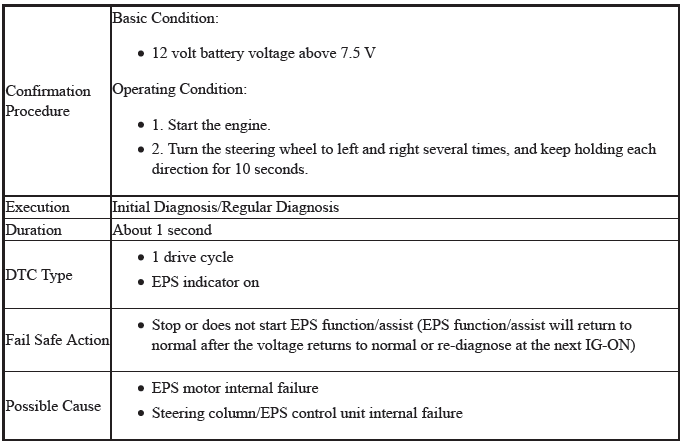

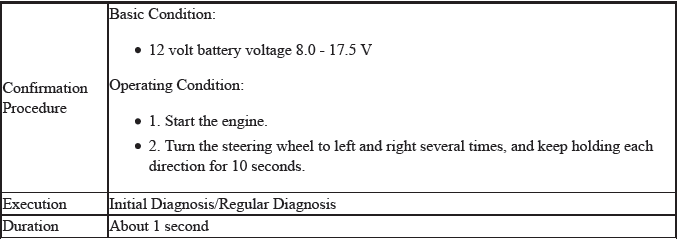

DTC C1403-14: Motor Angle Sensor (SIN/COS) Signals Incorrect
.png)

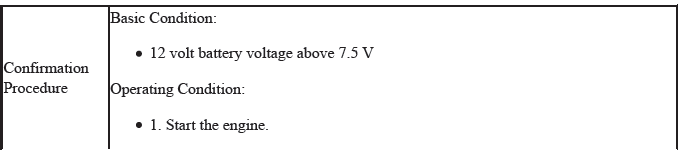

DTC C1403-29: Motor Angle Sensor (SIN/COS) Signals Incorrect Correlation
.png)
.png)

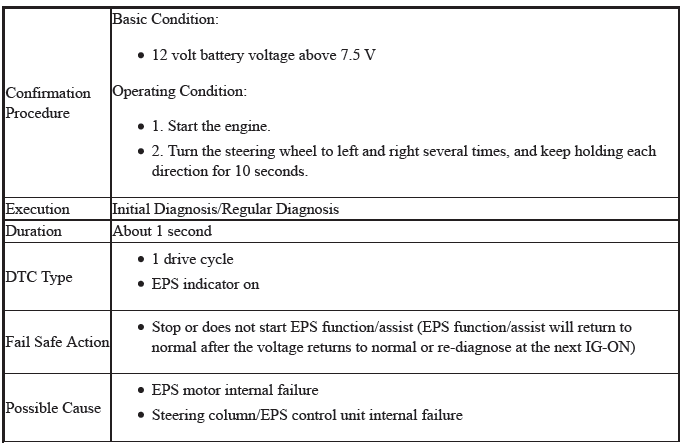

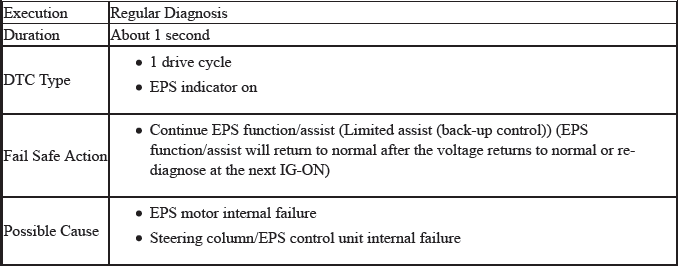

DTC C1404-11: EPS Motor U Phase Circuit Low Voltage
.png)
DTC C1404-13: EPS Motor U Phase Circuit High Voltage
.png)
.png)

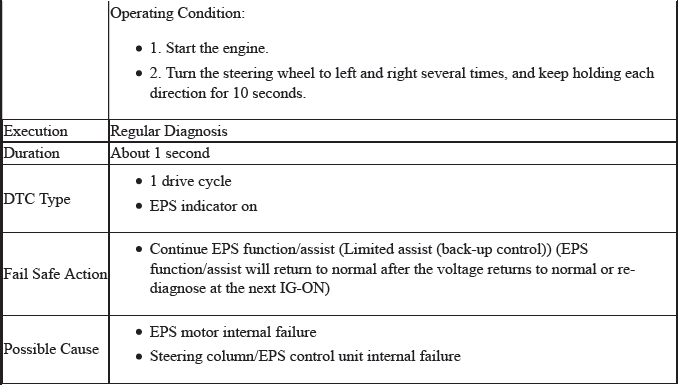

DTC C1405-11: EPS Motor V Phase Circuit Low Voltage
.png)
DTC C1405-13: EPS Motor V Phase Circuit High Voltage
.png)
.png)

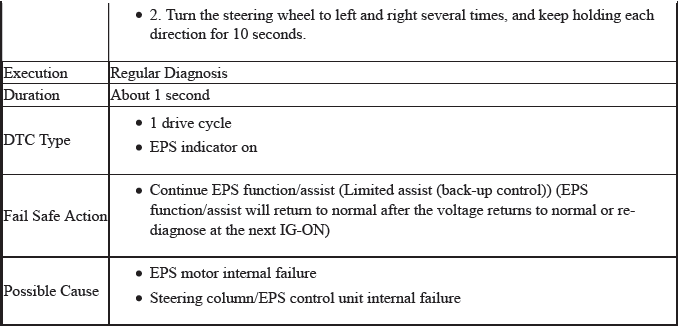

DTC C1406-11: EPS Motor W Phase Circuit Low Voltage
.png)
DTC C1406-13: EPS Motor W Phase Circuit High Voltage
.png)
.png)
DTC C1420-29: Main Torque Sensor and Sub Torque Sensor Incorrect Correlation
.png)

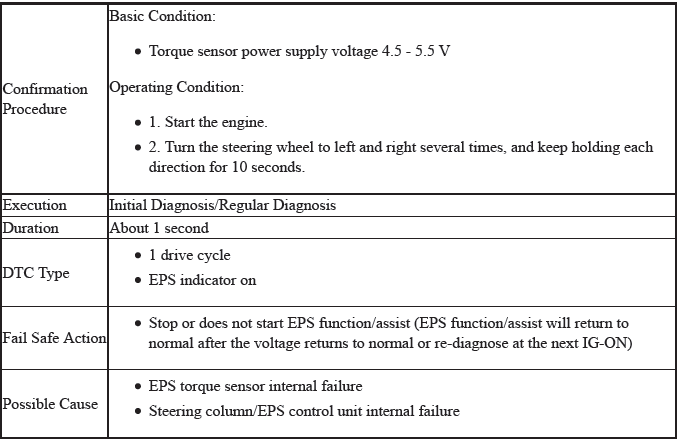

DTC C1421-14: Main Torque Sensor Malfunction
.png)
.png)

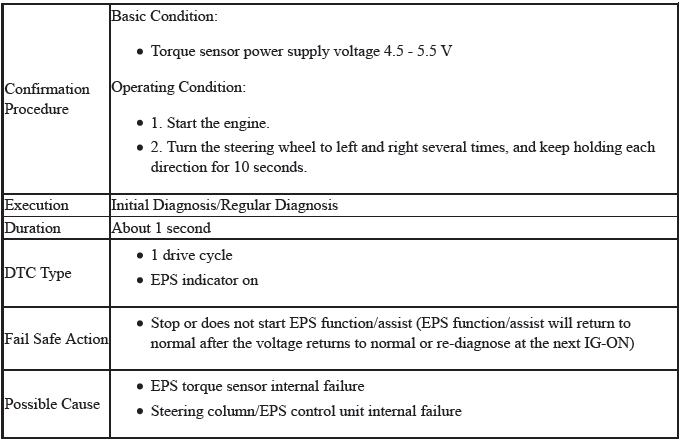

DTC C1422-14: Sub Torque Sensor Malfunction
.png)

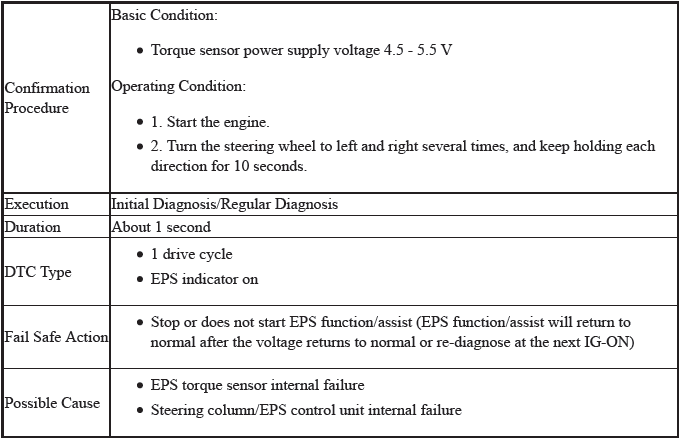

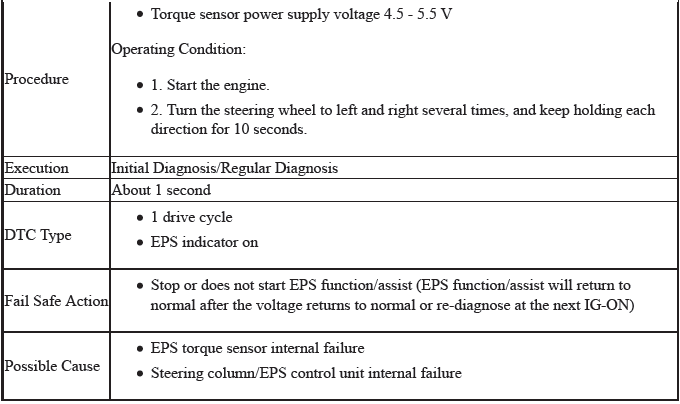

DTC C1423-14: Torque Sensor Power Source Circuit Malfunction
.png)

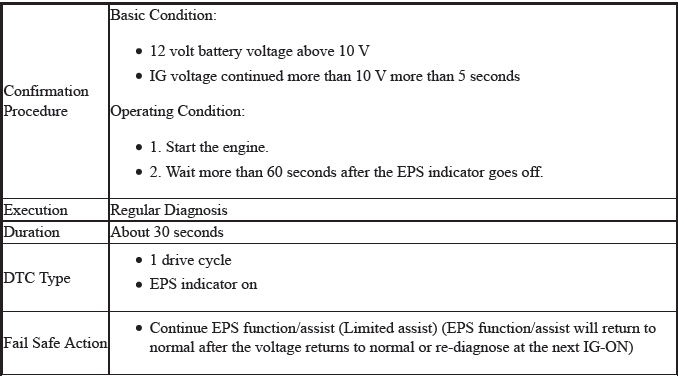

DTC C1432-62: Vehicle Speed and the Engine Speed Incorrect Correlation
.png)
.png)

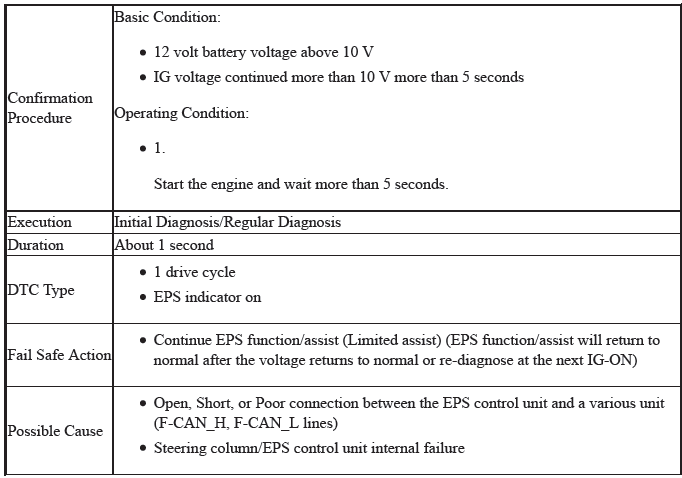

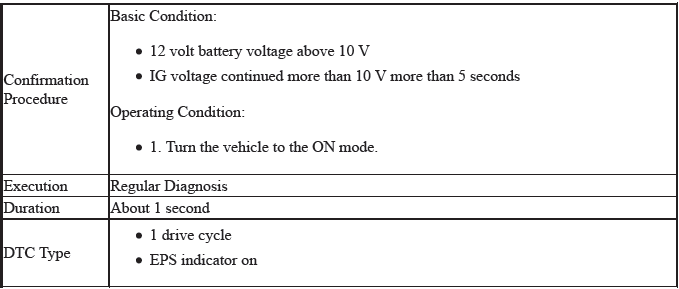

DTC U0029-00: F-CAN Malfunction (Bus-Off)
.png)

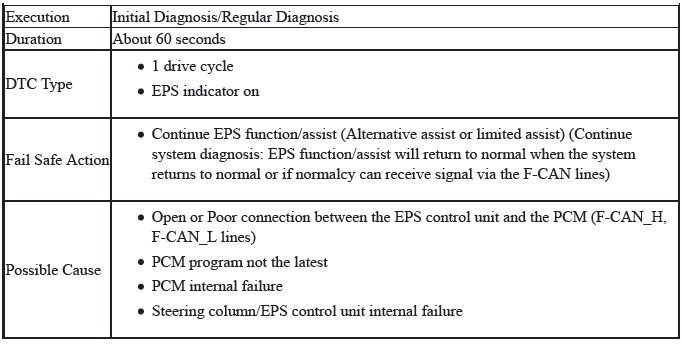

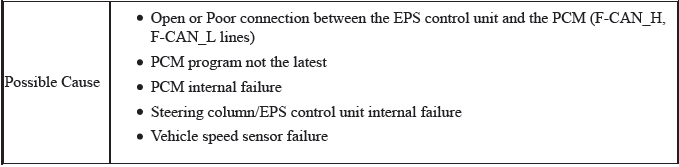

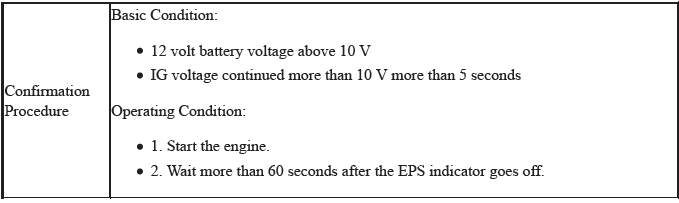

DTC U0100-00: F-CAN Malfunction (EPS Control Unit-PCM)
.png)
.png)

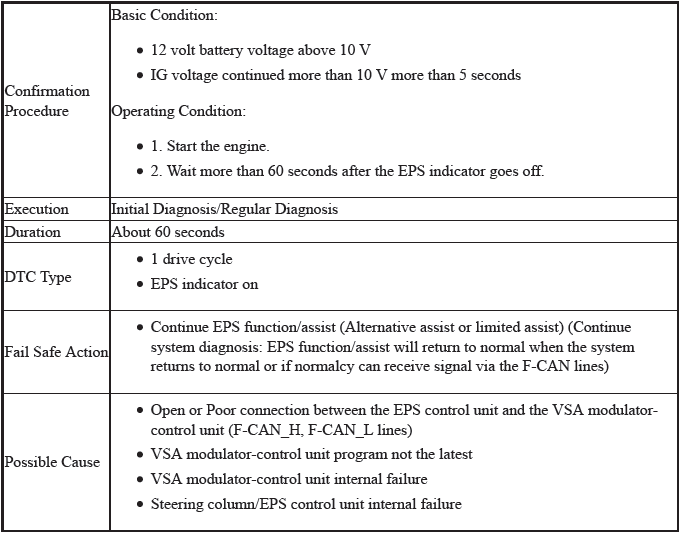

DTC U0122-00: F-CAN Malfunction (EPS Control Unit-VSA Modulator-Control Unit)
.png)

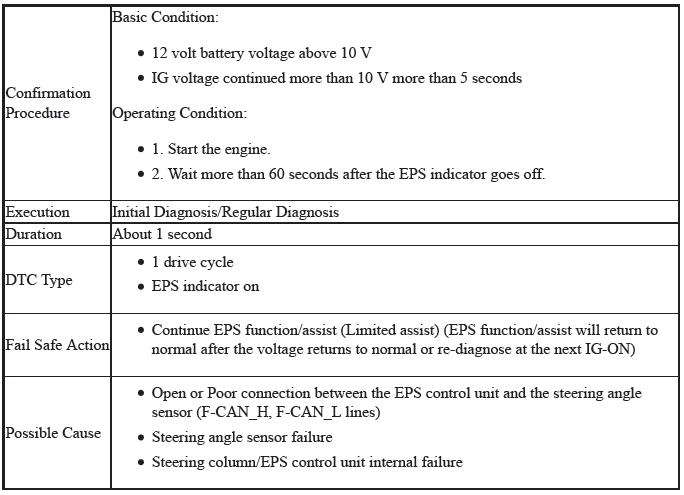

DTC U0126-00: F-CAN Malfunction (EPS Control Unit-Steering Angle Sensor)
.png)
DTC U0416-68: VSA System Malfunction
.png)
.png)

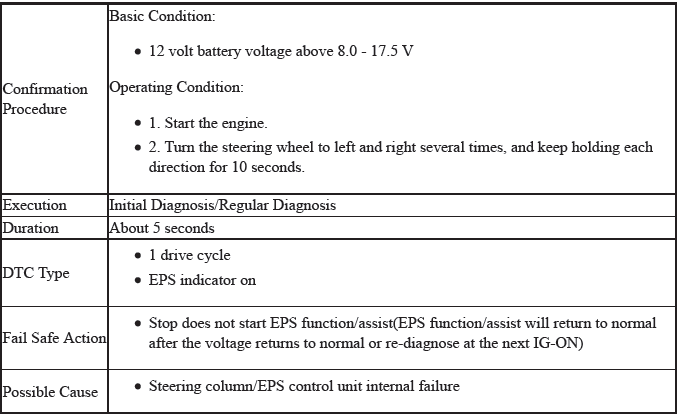

DTC U3000-49: EPS Control Unit Internal Circuit Malfunction
.png)

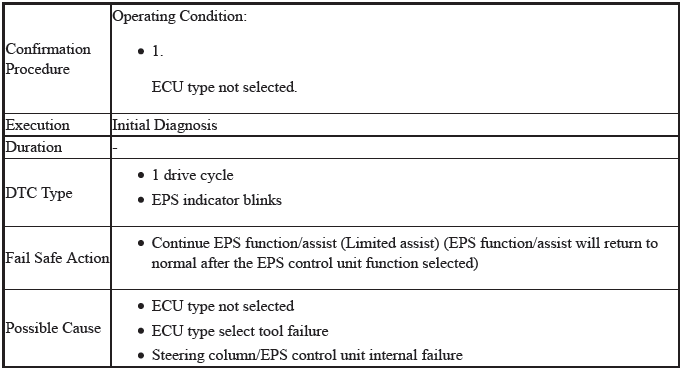

DTC U3000-55: EPS Control Unit Internal Malfunction
.png)

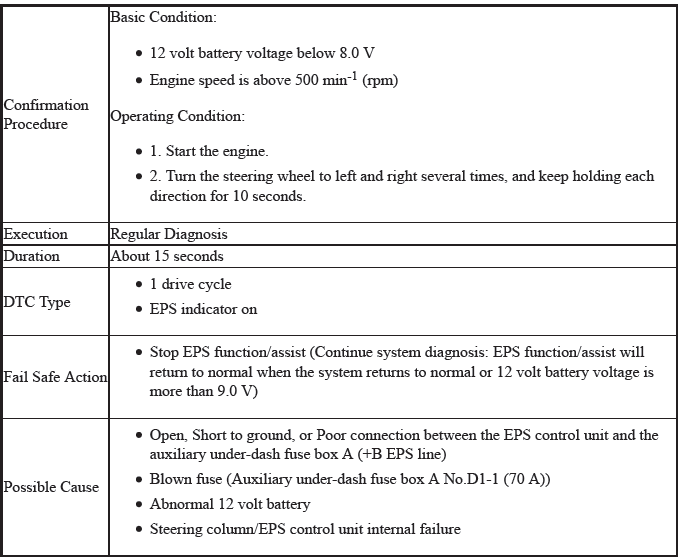

DTC U3003-16: Battery Voltage Low
.png)

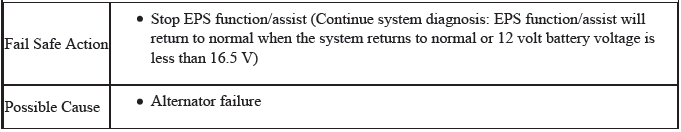

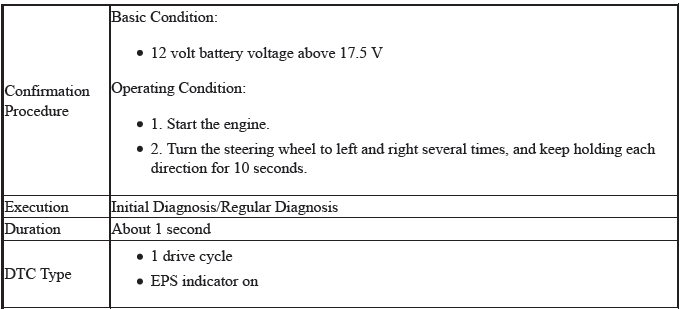

DTC U3003-17: Battery Voltage High
.png)
.png)
