Honda HR-V: Audio Error Messages
Honda HR-V (2015-2021) Owner's Manual / Features / Audio Error Messages

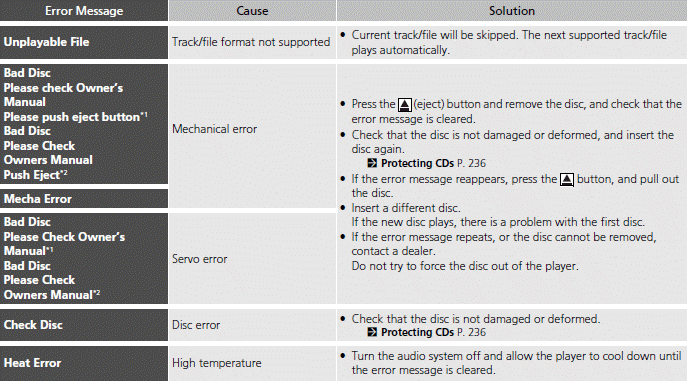

CD Player
If a disc error occurs, you may see the following error messages.
.png)
*1: Display audio system *2: Color audio system

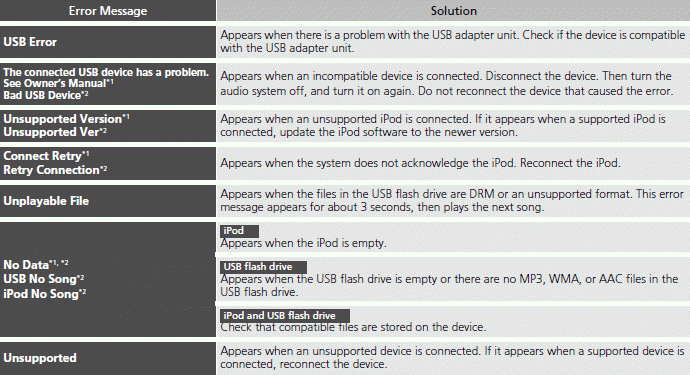

iPod/USB Flash Drive
If an error occurs while playing an iPod or USB flash drive, you may see the following error messages. If you cannot clear the error message, contact a dealer.
.png)
*1: Display audio system *2: Color audio system
Models with display audio system

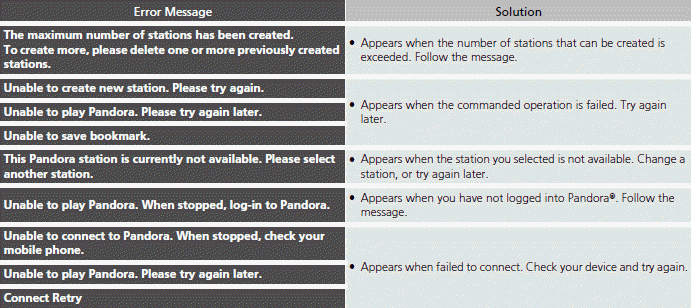

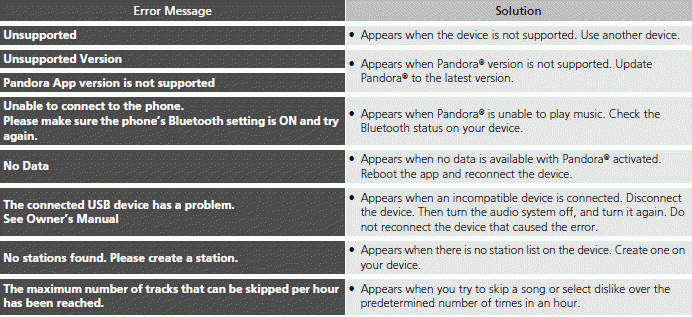

Pandora
If an error occurs while playing Pandora, you may see the following error messages.
If you cannot clear the error message, contact a dealer.
.png)
.png)
