Honda HR-V: General Information on the Audio System
Recommended CDs
- Use only high-quality CD-R or CD-RW discs labeled for audio use.
- Use only CD-R or CD-RW discs on which the recordings are closed.

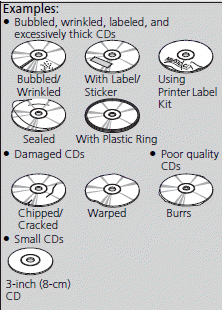

- Play only standard round-shaped CDs.
.png)
A Dual-disc cannot play on this audio unit. If recorded
under certain conditions, a CD-R or CD-RW may not
play either.
■CDs with MP3, WMA, or AAC files
- Some software files may not allow for audio play or text data display.
- Some versions of MP3, WMA, or AAC formats may be unsupported.
■ Protecting CDs
Follow these precautions when handling or storing CDs:
- Store a CD in its case when it is not being played.
- When wiping a CD, use a soft clean cloth from the center to the outside
edge.
- Handle a CD by its edge. Never touch either surface.
- Never insert foreign objects into the CD player.
- Keep CDs out of direct sunlight and extreme heat.
- Do not place stabilizer rings or labels on the CD.
- Avoid fingerprints, liquids, and felt-tip pens on the CD.
NOTICE
Do not insert a damaged CD. It may be stuck inside
and damage the audio unit.
.png)
Compatible iPod, iPhone, and USB Flash Drives

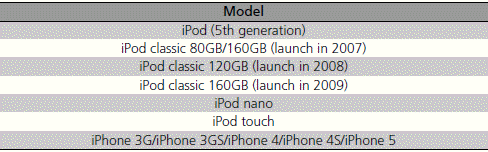

■iPod and iPhone Model Compatibility
.png)
This system may not work with all software versions
of these devices.
■USB Flash Drives
- Use a recommended USB flash drive of 256 MB or higher.
- Some digital audio players may not be compatible.
- Some USB flash drives (e.g., a device with security lockout) may not
work.
- Some software files may not allow for audio play or text data display.
- Some versions of MP3, WMA, or AAC formats may be unsupported.
Files on the USB flash drive are played in their stored
order. This order may be different from the order
displayed on your PC or device.
