Honda HR-V: Customized Features

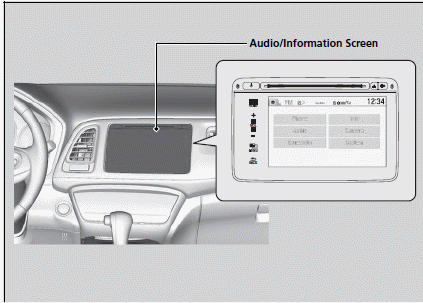

Use the audio/information screen to customize certain features.
When you customize settings:
- Make sure that the vehicle is at a complete stop.
Continuously variable transmission models
- Shift to (P).
Manual transmission models
- Set the parking brake.
Models with navigation system
See the navigation system manual for information of the customized features.
Models with color audio system
■ How to customize

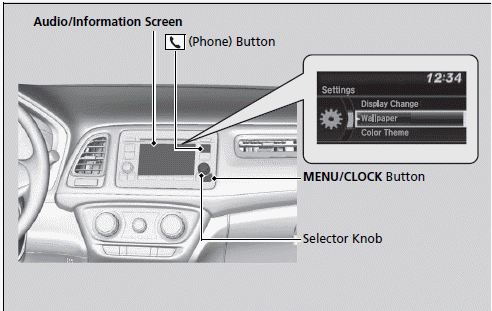

While the vehicle is at a complete stop with the ignition switch in ON (II),
press the
MENU/CLOCK button, then select Settings. To customize the phone settings,
press the
button, then select
Phone Setup.
.png)
These indications are used to show how to operate the selector knob.
Rotate
to select.
Press
to enter.
To customize other features, select Settings, rotate
, then press .

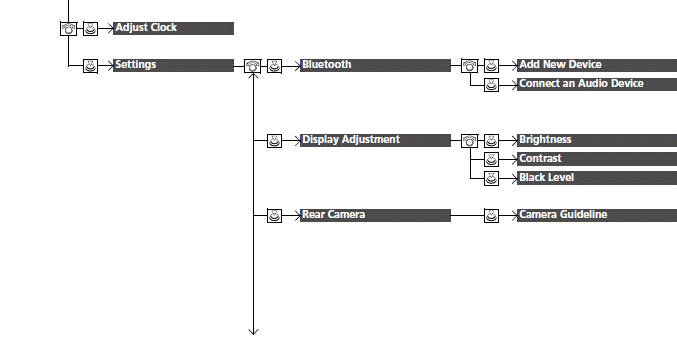

Models with color audio system

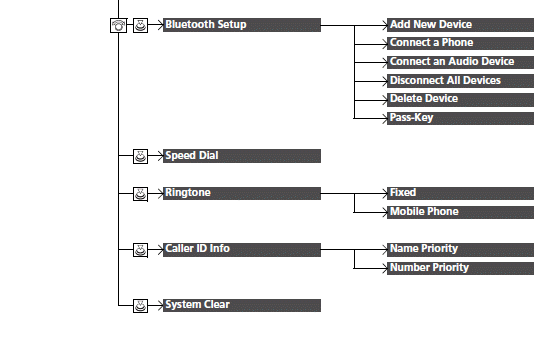

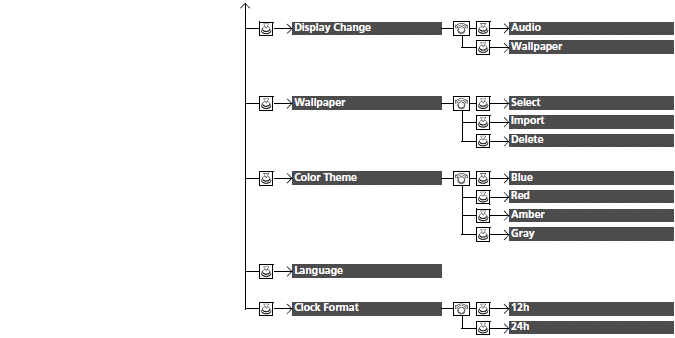

■ Customization Flow
Press the MENU/CLOCK button.
.png)
.png)
Press the
button and rotate
to select Phone Setup, then press
.
.png)
Models with color audio system

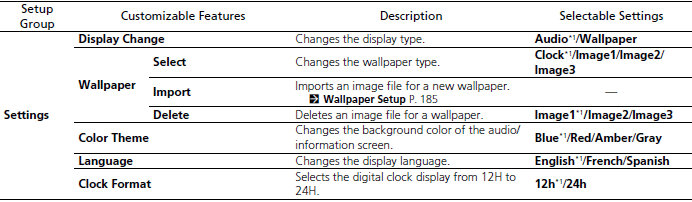

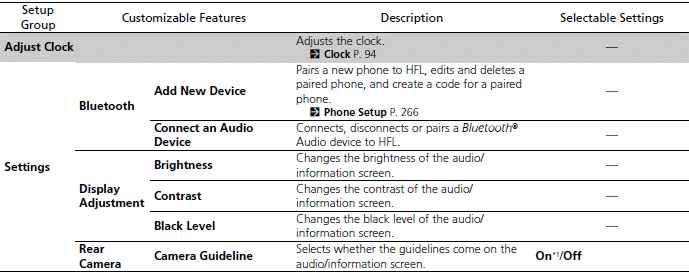

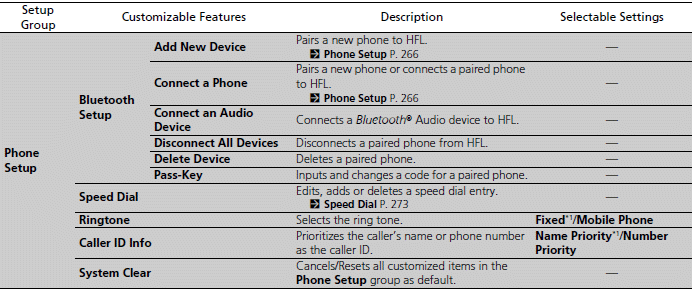

■ List of customizable options
.png)
.png)
.png)
*1:Default Setting
When you customize settings:
- Make sure that the vehicle is at a complete stop.
- Continuously variable transmission models
Shift to (P).
- Manual transmission models
Set the parking brake.
Models with display audio system
■ How to customize
While the vehicle is at a complete stop with the ignition switch in ON (II)*1, select Settings, then select a setting item.
.png)
To customize other features, select Settings.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

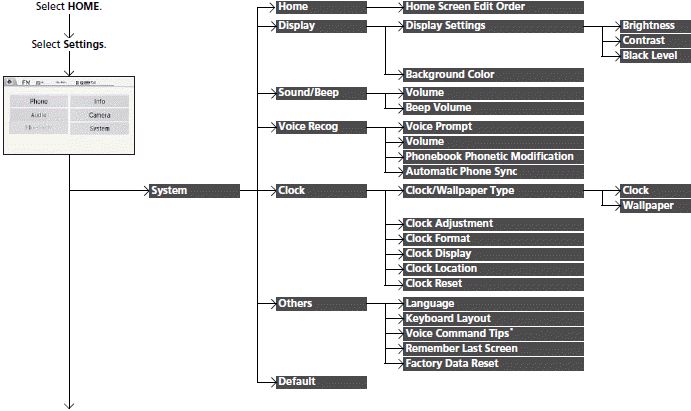

Models with display audio system

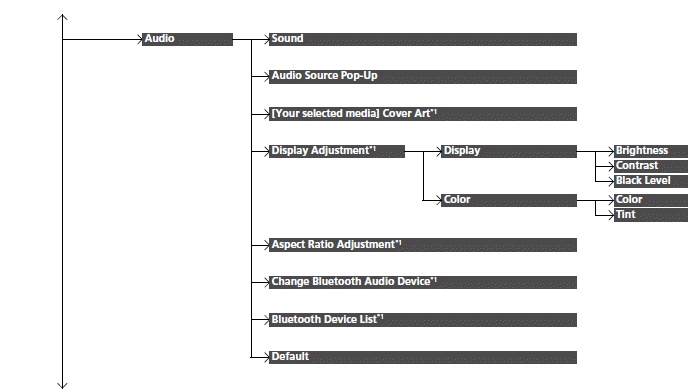

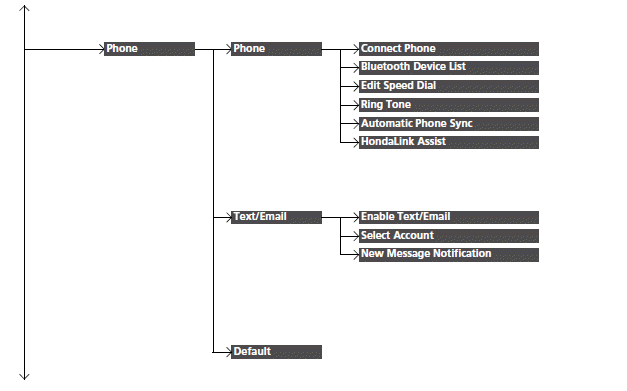

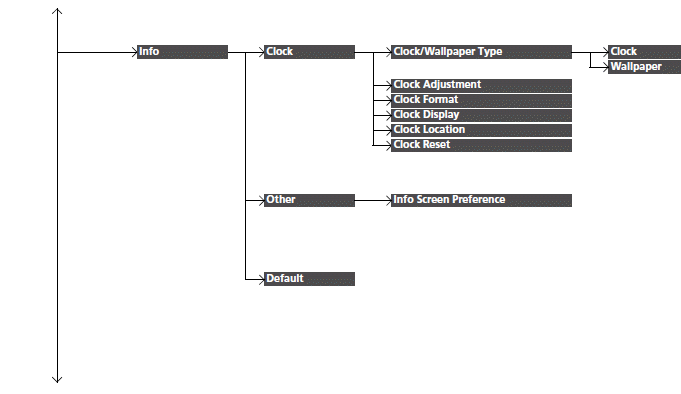

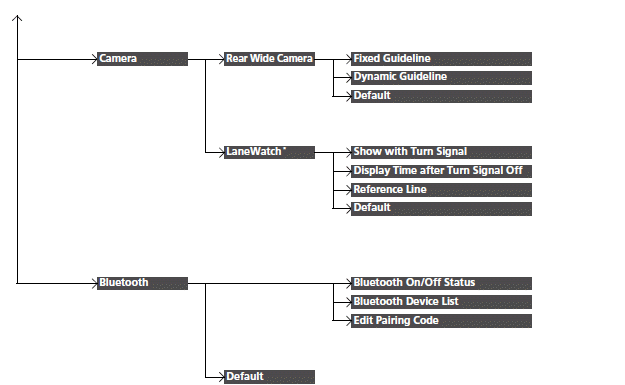

■ Customization Flow
.png)
.png)
.png)
.png)
.png)
*1: May change depending on your currently selected source.

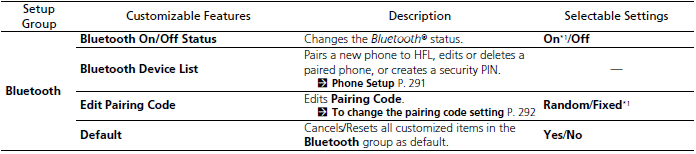

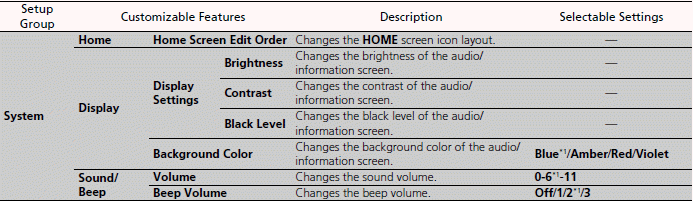

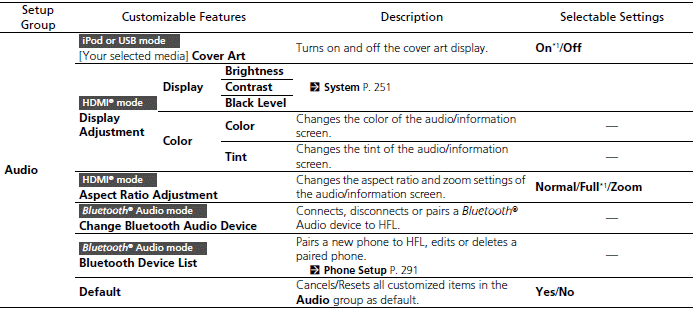

Models with display audio system

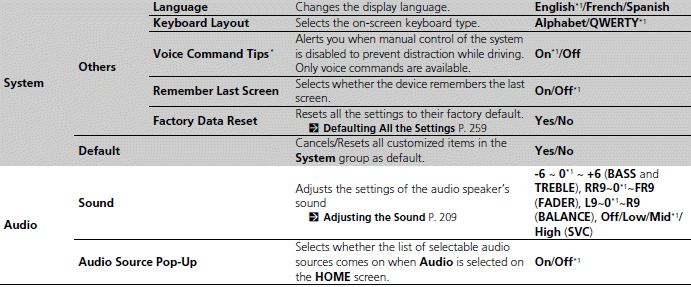

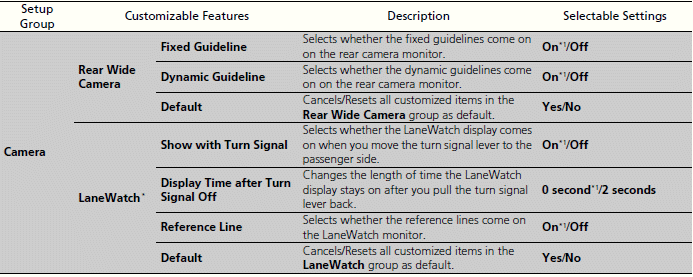

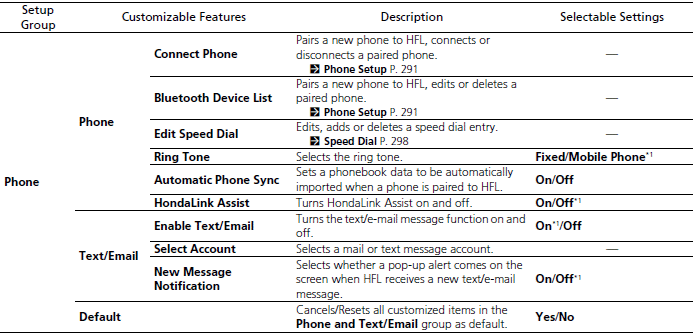

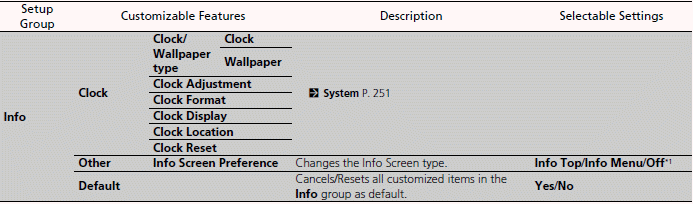

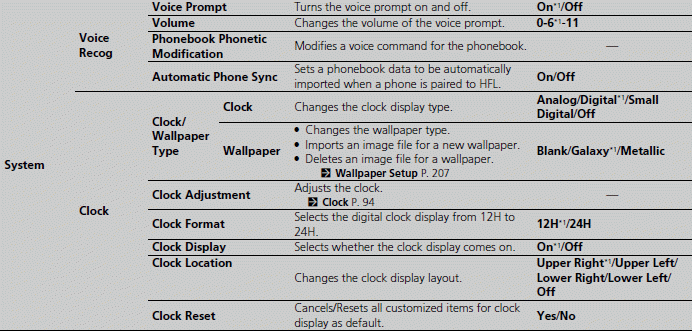

■ List of customizable options
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
*1:Default Setting
Defaulting All the Settings
Models with display audio system
Reset all the menu and customized settings as the factory defaults.
1. Select HOME.
2. Select Settings.
3. Select System.
- Repeat the procedure to select the Others tab, then Factory Data Reset.
- The confirmation message will appear.
4. Select Yes to reset the settings.
5. Select Yes again to reset the settings.
- The confirmation message will appear.
Select OK.
.png)
When you transfer the vehicle to a third party, reset all settings to default and delete all personal data.
The following settings will be reset:
- Audio preset settings
- Phonebook entries
- Other display and personal settings.
