Honda HR-V: Center Console Panel Removal and Installation

Removal & Installation

1. Shift Lever Knob - Remove

  • CVT Models
  • M/T Models

2. Center Console Switch Trim - Remove

Interior Trim - Service Information

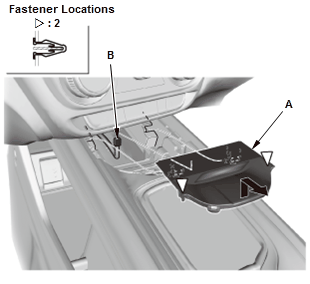

  1. Remove the center console switch trim (A)
  2. Disconnect the connector (B).

3. Center Console Panel - Remove

Interior Trim - Service Information

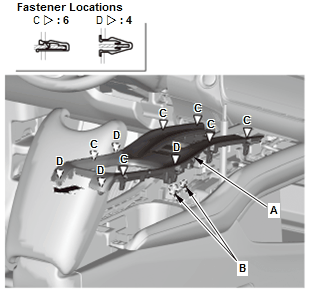

  1. Remove the center console panel (A)
  2. Disconnect the connectors (B). (for some models)

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

CENTER CONSOLE REAR TRIM REMOVAL AND INSTALLATION

Removal & Installation

1. Center Console Rear Trim - Remove

Interior Trim - Service Information

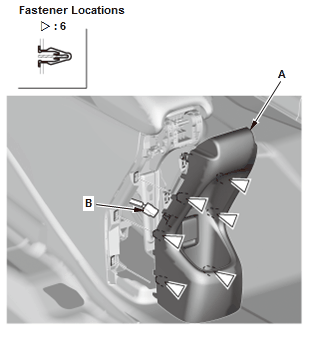

  1. Remove the center console rear trim (A)
  2. Disconnect the connector (B).

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

CENTER CONSOLE REMOVAL AND INSTALLATION

Removal & Installation

NOTE : SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. Passenger's Dashboard Undercover - Remove

2. Center Console Panel - Remove

3. Center Console Pad - Remove

4. Center Console Rear Trim - Remove

5. Console Middle Cover - Remove

Interior Trim - Service Information

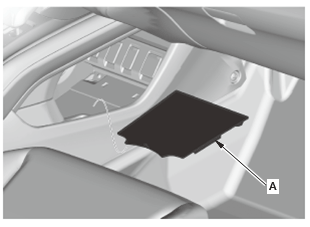

  1. Remove the console front mat (A).

Interior Trim - Service Information

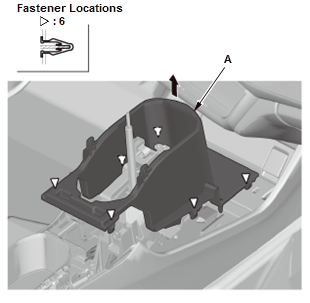

  1. Remove the console middle cover (A).

6. Center Console - Remove

Interior Trim - Service Information

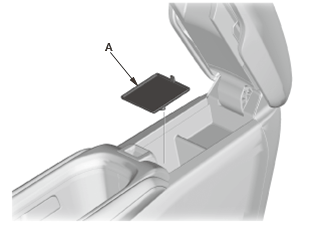

  1. Remove the console box mat (A).

Interior Trim - Service Information

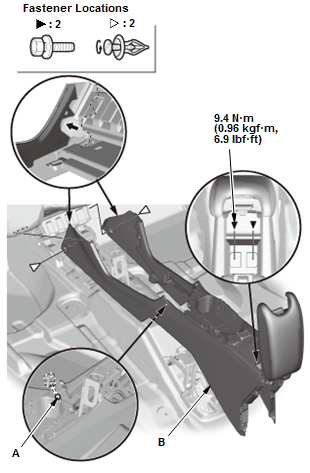

  1. Remove the bolts and clips
  2. Remove the harness clip (A)
  3. Remove the center console (B).

7. All Removed Parts -Install

  1. Install the parts in the reverse order of removal.
