Honda HR-V: Dashboard Meter Visor Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Interior Trim - Service Information / Dashboard Meter Visor Removal and Installation

Removal & Installation

1. Dashboard Meter Visor - Remove

Interior Trim - Service Information

  1. Adjust the steering column to the full tilt down position, and to the full telescopic out position

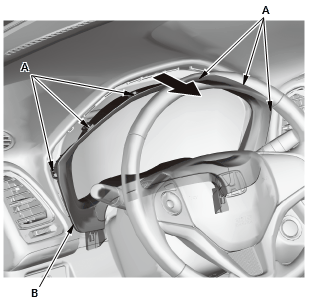

  2. Release the hooks (A) while pulling forward the upper part of the meter visor (B).

Interior Trim - Service Information

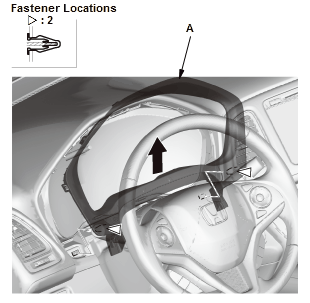

  1. Release the clips, then remove the dashboard meter visor (A).

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
