Honda HR-V: Circuit Diagram, Inputs and Outputs

CIRCUIT DIAGRAM

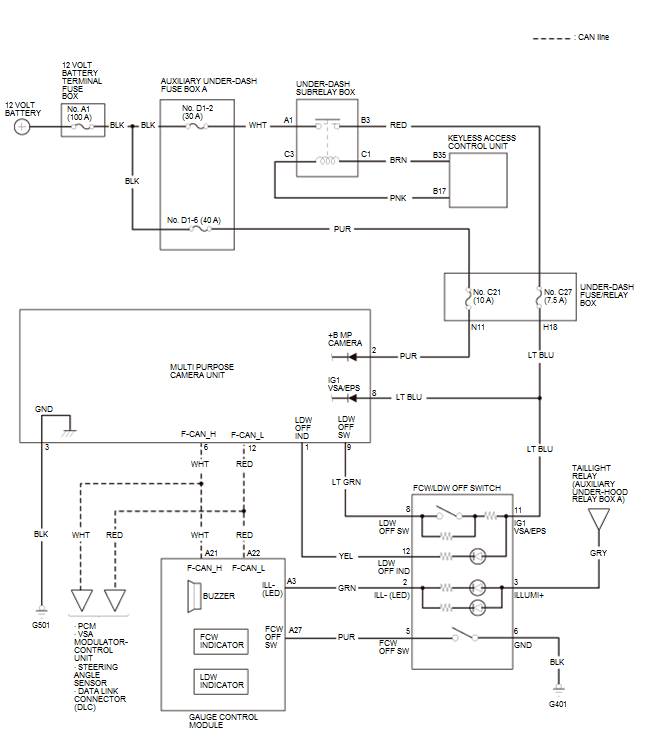

FORWARD COLLISION WARNING (FCW) CIRCUIT DIAGRAM

Driving Assistance Warning - Testing & Troubleshooting

LANE DEPARTURE WARNING (LDW) CIRCUIT DIAGRAM

Driving Assistance Warning - Testing & Troubleshooting

INPUTS AND OUTPUTS

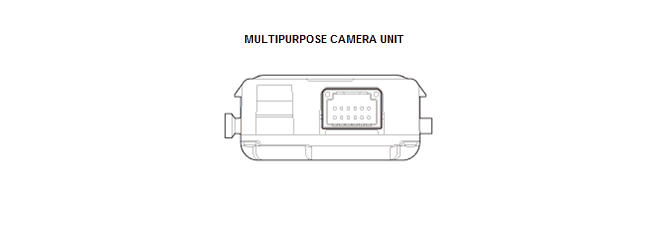

FORWARD COLLISION WARNING (FCW) (MULTIPURPOSE CAMERA UNIT) CONNECTOR FOR INPUTS AND OUTPUTS

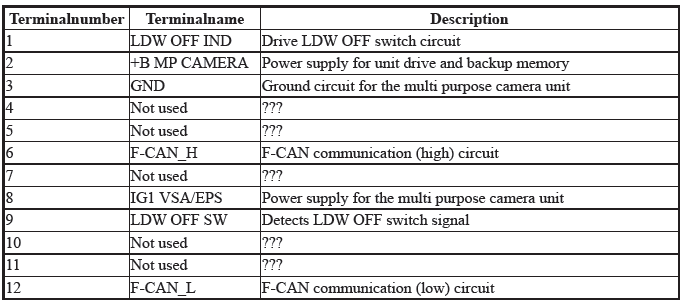

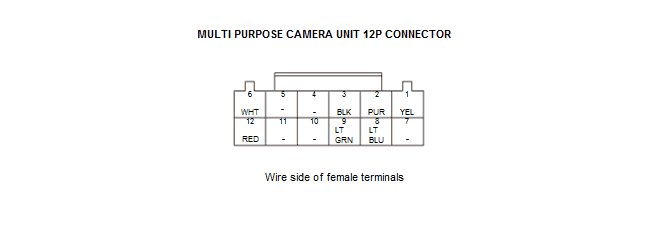

MultiPurpose Camera Unit 12P Connector Inputs and Outputs

Driving Assistance Warning - Testing & Troubleshooting

Driving Assistance Warning - Testing & Troubleshooting

Driving Assistance Warning - Testing & Troubleshooting

FORWARD COLLISION WARNING SYSTEM (FCW) ELECTRONIC WIRING DIAGRAM

Refer to: Warning Systems

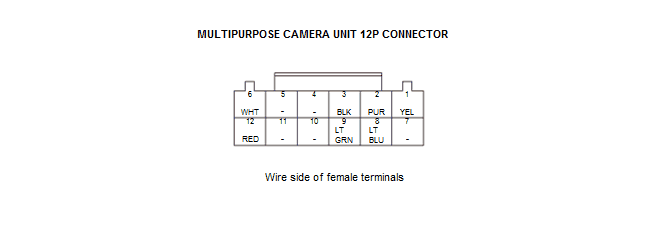

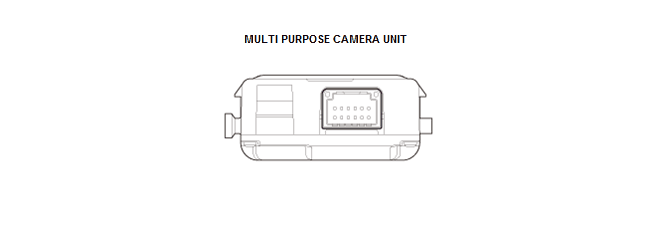

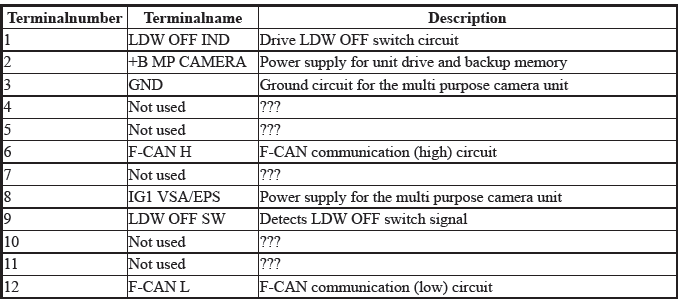

LANE DEPARTURE WARNING (LDW) (MULTIPURPOSE CAMERA UNIT) CONNECTOR FOR INPUTS AND OUTPUTS

Driving Assistance Warning - Testing & Troubleshooting

Driving Assistance Warning - Testing & Troubleshooting

Driving Assistance Warning - Testing & Troubleshooting

LANE DEPARTURE WARNING SYSTEM (LDW) ELECTRONIC WIRING DIAGRAM

File is missing

COMPONENT LOCATION INDEX

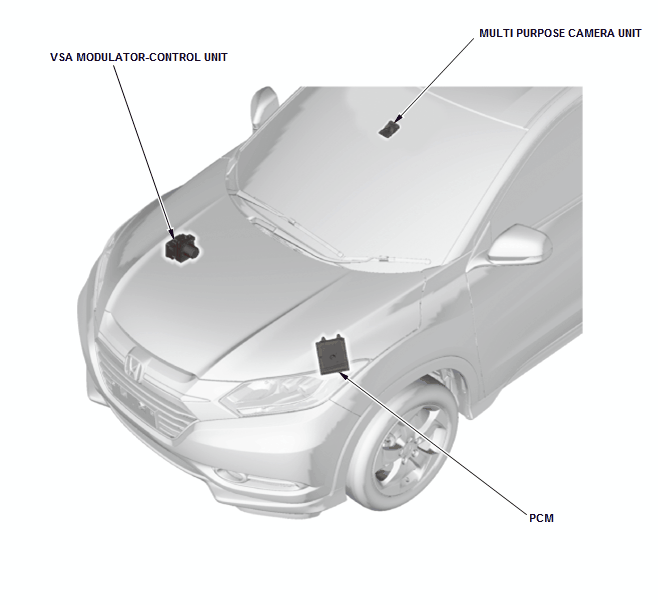

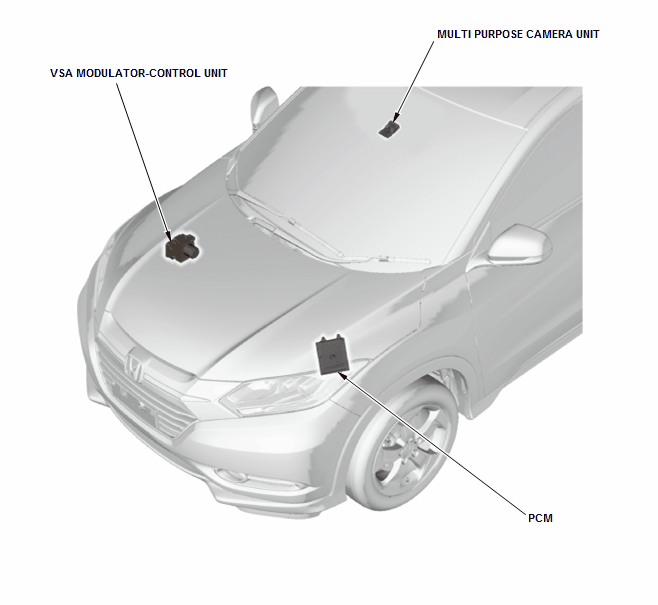

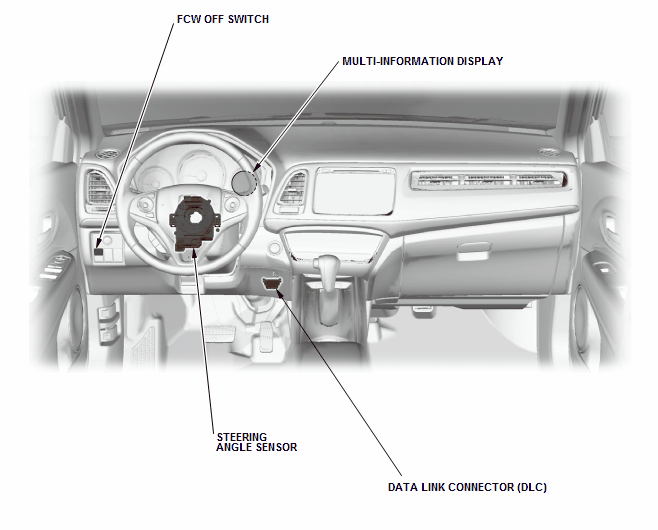

FORWARD COLLISION WARNING (FCW) COMPONENT LOCATION INDEX

Driving Assistance Warning - Testing & Troubleshooting

Driving Assistance Warning - Testing & Troubleshooting

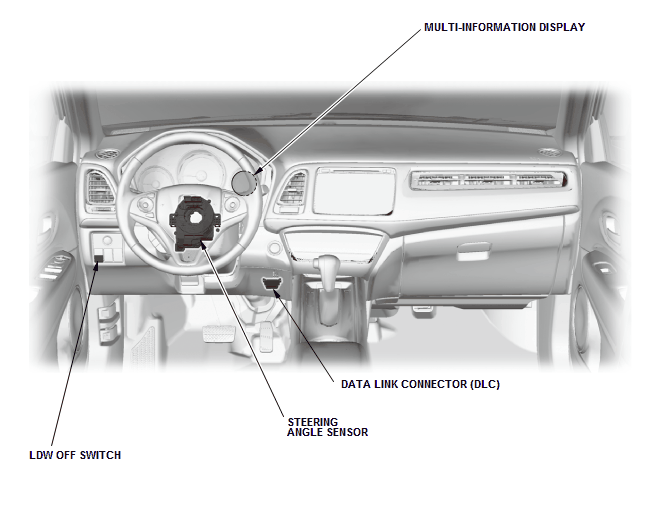

LANE DEPARTURE WARNING (LDW) COMPONENT LOCATION INDEX

Driving Assistance Warning - Testing & Troubleshooting

Driving Assistance Warning - Testing & Troubleshooting
