Honda HR-V: Clutch Trouble Shooting
Honda HR-V (2015-2021) Service Manual / General Information / Clutch Trouble Shooting
* PLEASE READ THIS FIRST *
NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. For model-specific information see appropriate articles where available.
ALL MODELS
NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. For model-specific information see appropriate articles where available.

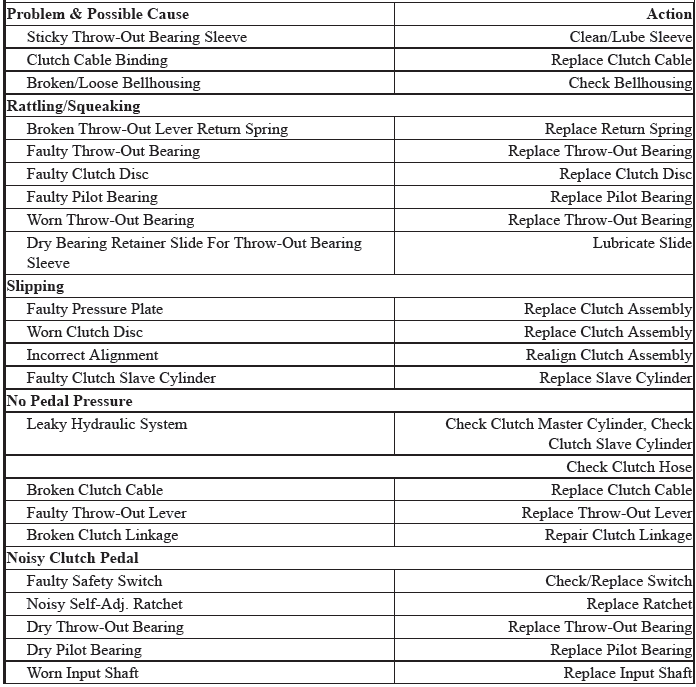

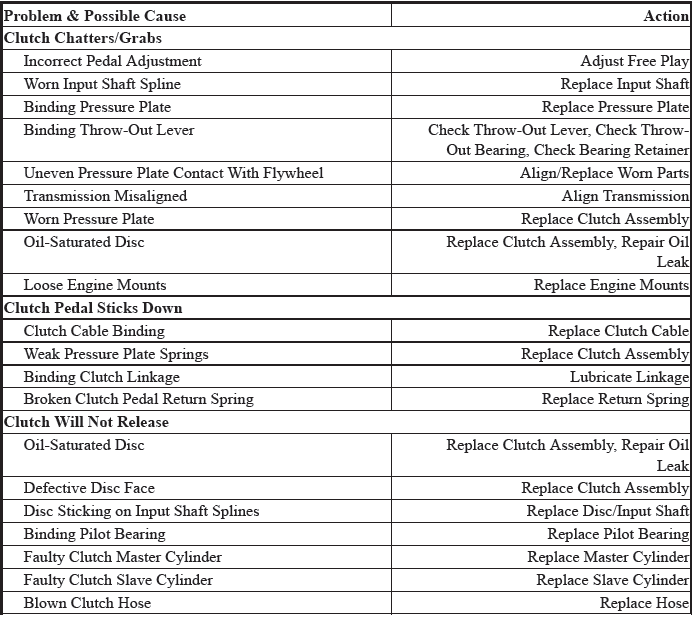

CLUTCH TROUBLE SHOOTING
READ NEXT:
