Honda HR-V: Audio Remote Switch Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Audio Visual Systems - Service Information / Audio Remote Switch Removal and Installation

Removal & Installation

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. Driver's Airbag - Remove

2. Lower Garnish Assembly - Remove

Audio Visual Systems - Service Information

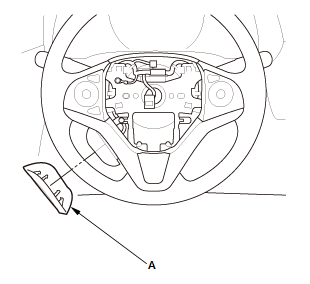

  1. Remove the garnish (A).

Audio Visual Systems - Service Information

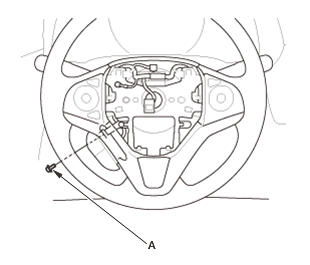

  1. Remove the screw (A).

Audio Visual Systems - Service Information

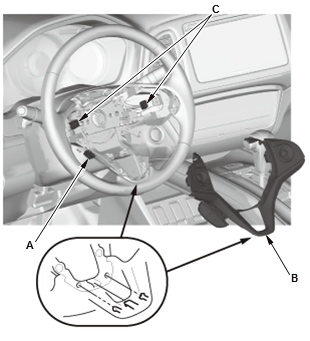

  1. Disconnect the connector (A)
  2. Pull out the lower garnish assembly (B)
  3. Disconnect the connector(s) (C), then remove the lower garnish assembly.

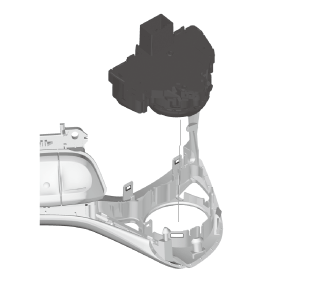

3. Audio Remote Switch - Remove

Audio Visual Systems - Service Information

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
