Honda HR-V: DTC C1840-14 (47-02): Differential Fluid Pressure Sensor Circuit Low Voltage (AWD)

Honda HR-V (2015-2021) Service Manual / Driveline & Axles / AWD System - Diagnostics / DTC C1840-14 (47-02): Differential Fluid Pressure Sensor Circuit Low Voltage (AWD)

NOTE: Before you troubleshoot, review the General Troubleshooting Information for the AWD with intelligent control system.

AWD System - Diagnostics

1. Problem verification:

  1. Start the engine.

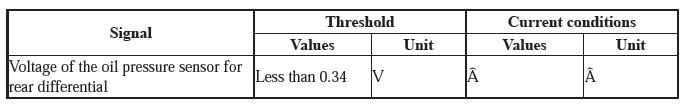

  2. Check the parameter(s) below with the HDS.

AWD System - Diagnostics

Do the current condition(s) match the threshold?

YES

The failure is duplicated. Go to step 2.

NO

Intermittent failure, the system is OK at this time. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the Freeze data/on-board snapshot.

2. Determine possible failure area (PS1 line, others):

  1. Turn the vehicle to the OFF (LOCK) mode.
  2. Disconnect the following connector.

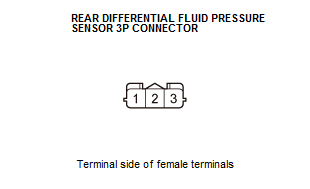

Rear differential fluid pressure sensor 3P connector

  1. Turn the vehicle to the ON mode.
  2. Check the parameter(s) below with the HDS.

AWD System - Diagnostics

Do the current condition(s) match the threshold?

YES

Go to step 4.

NO

Go to step 3.

3. Shorted wire check (PS1 line):

  1. Turn the vehicle to the OFF (LOCK) mode.
  2. Disconnect the following connector.

AWD control unit 24P connector

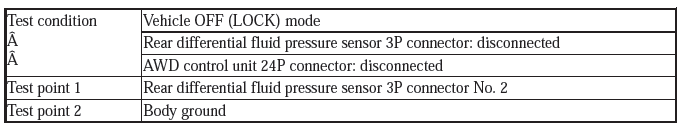

  1. Check for continuity between test points 1 and 2.

AWD System - Diagnostics

AWD System - Diagnostics

Is there continuity?

YES

Repair a short to ground or the SG wire in the PS1 wire between the rear differential fluid pressure sensor and the AWD control unit.

NO

Update the AWD control unit if it does not have the latest software, or substitute a known-good AWD control unit, and recheck. If the symptom/indication goes away with the updated AWD control unit, troubleshooting is complete. If the symptom/indication goes away with a known-good AWD control unit, replace the original AWD control unit.

4. Determine possible failure area (rear differential fluid pressure sensor, SVCC line):

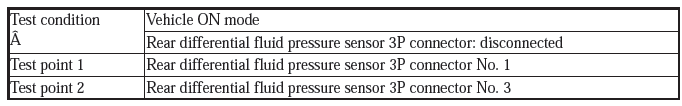

Measure the voltage between test points 1 and 2.

AWD System - Diagnostics

AWD System - Diagnostics

Is there about 5 V?

YES

Replace the rear differential fluid pressure sensor.

NO

Go to step 5.

5. Open wire check (SVCC line):

  1. Turn the vehicle to the OFF (LOCK) mode.
  2. Disconnect the following connector.

AWD control unit 24P connector

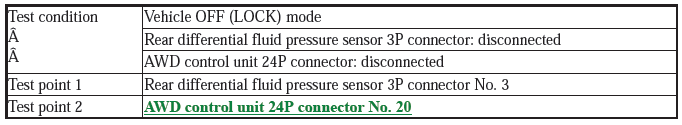

  1. Check for continuity between test points 1 and 2.

AWD System - Diagnostics

AWD System - Diagnostics

Is there continuity?

YES

Update the AWD control unit if it does not have the latest software, or substitute a known-good AWD control unit, and recheck. If the symptom/indication goes away with the updated AWD control unit, troubleshooting is complete. If the symptom/indication goes away with a known-good AWD control unit, replace the original AWD control unit.

NO

Repair an open in the SVCC wire between the rear differential fluid pressure sensor and the AWD control unit.
