Honda HR-V: Fuse to Components Index

FUSE TO COMPONENTS INDEX

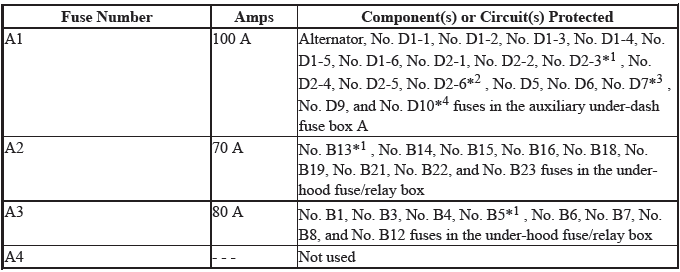

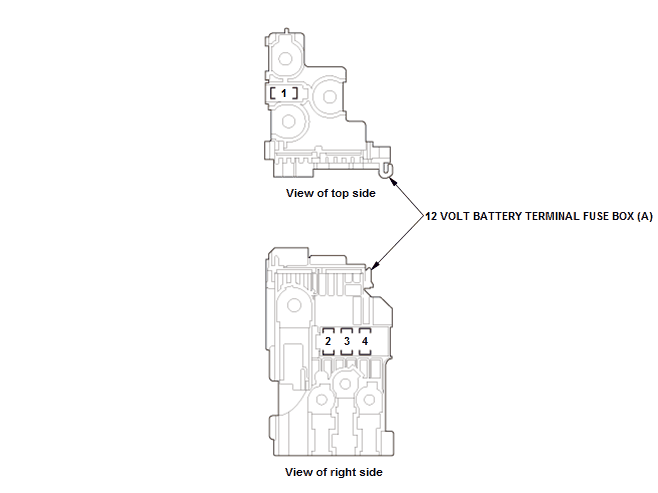

12 Volt Battery Terminal Fuse Box (A)

Electrical System - Testing & Troubleshooting

*1: With keyless access system
*2: AWD
*3: With rear accessory power socket
*4: With console accessory power socket

Electrical System - Testing & Troubleshooting

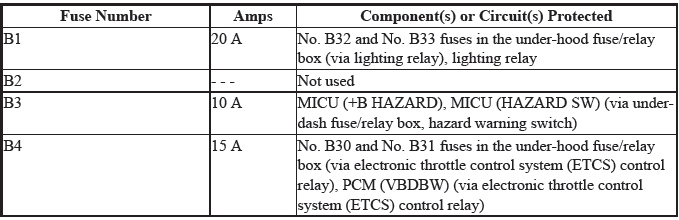

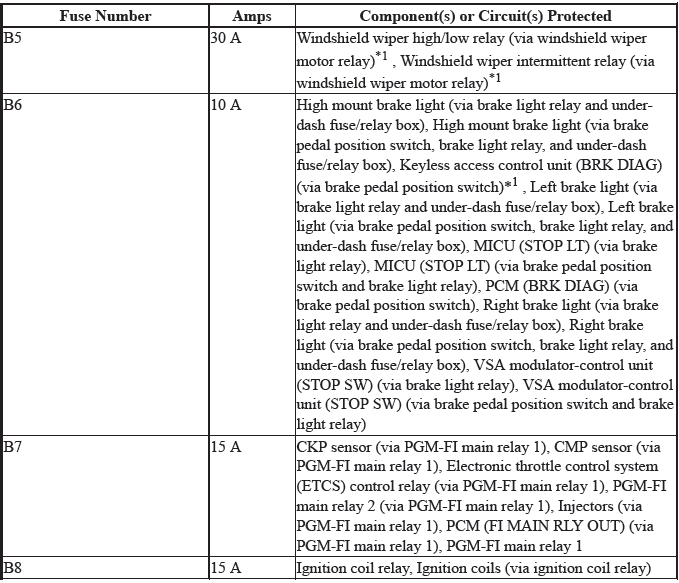

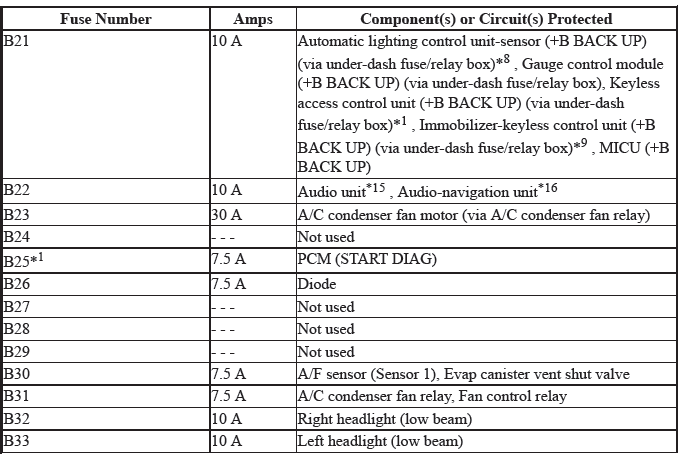

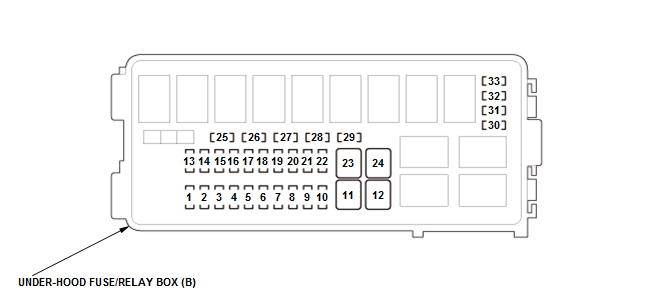

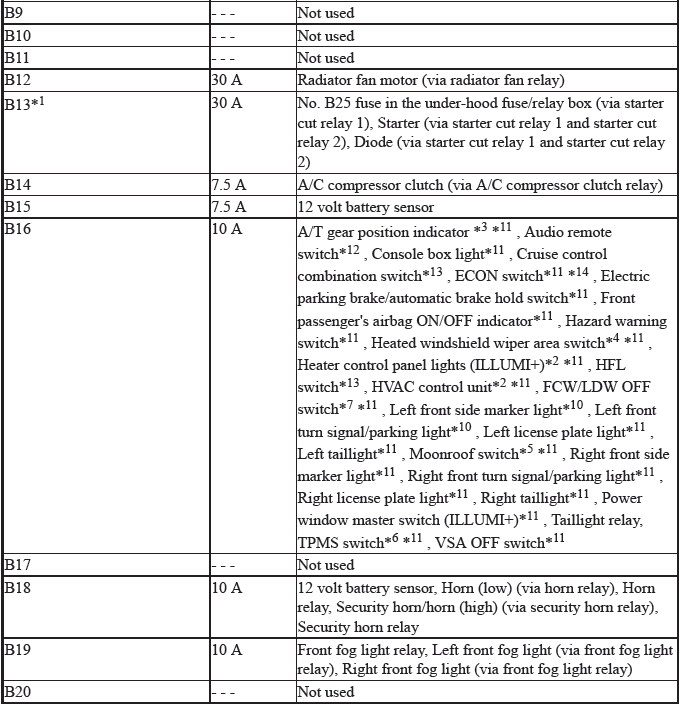

Under-Hood Fuse/Relay Box (B)

Electrical System - Testing & Troubleshooting

*1: With keyless access system
*2: Without climate control
*3: CVT
*4: With heated windshield wiper area
*5: With moonroof
*6: With TPMS
*7: With forward collision warning or lane depature warning
*8: With automatic lighting
*9: Without keyless access system
*10: Via taillight relay
*11: Via taillight relay and under-dash fuse/relay box
*12: Via taillight relay, under-dash fuse/relay box, and cable reel
*13: Via taillight relay, under-dash fuse/relay box, cable reel, and audio remote switch
*14: With ECON switch
*15: Without navigation
*16: With navigation

Electrical System - Testing & Troubleshooting

Electrical System - Testing & Troubleshooting

*1: With keyless access system
*2: Without climate control
*3: CVT
*4: With heated windshield wiper area
*5: With moonroof
*6: With TPMS
*7: With forward collision warning or lane depature warning
*8: With automatic lighting
*9: Without keyless access system
*10: Via taillight relay
*11: Via taillight relay and under-dash fuse/relay box
*12: Via taillight relay, under-dash fuse/relay box, and cable reel
*13: Via taillight relay, under-dash fuse/relay box, cable reel, and audio remote switch
*14: With ECON switch
*15: Without navigation
*16: With navigation

Electrical System - Testing & Troubleshooting

*1: With keyless access system
*2: Without climate control
*3: CVT
*4: With heated windshield wiper area
*5: With moonroof
*6: With TPMS
*7: With forward collision warning or lane depature warning
*8: With automatic lighting
*9: Without keyless access system
*10: Via taillight relay
*11: Via taillight relay and under-dash fuse/relay box
*12: Via taillight relay, under-dash fuse/relay box, and cable reel
*13: Via taillight relay, under-dash fuse/relay box, cable reel, and audio remote switch
*14: With ECON switch
*15: Without navigation
*16: With navigation

Electrical System - Testing & Troubleshooting

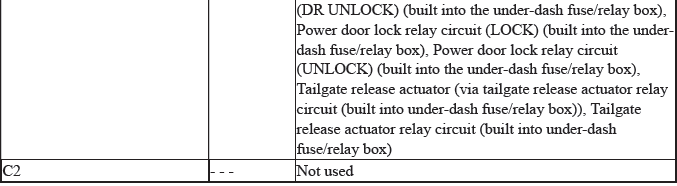

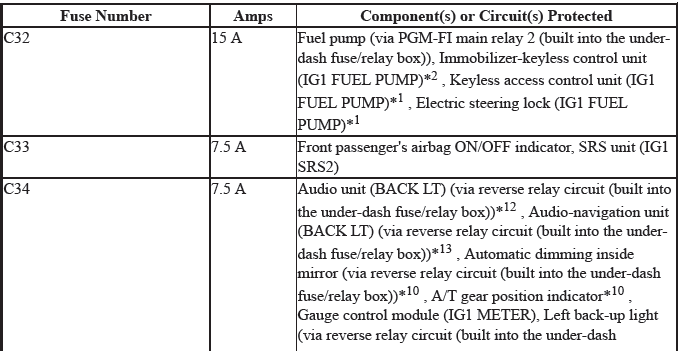

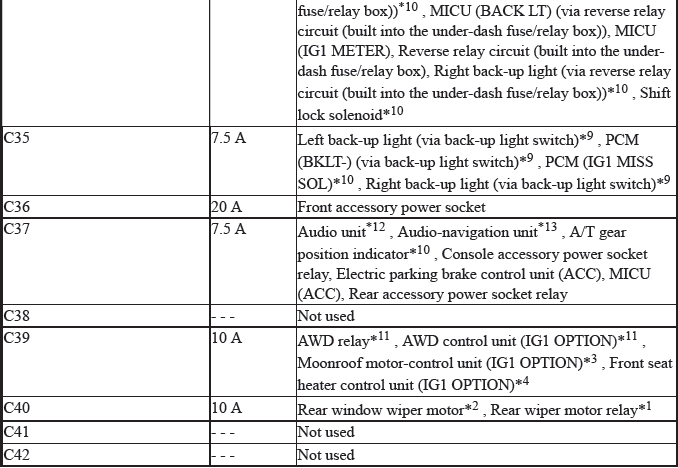

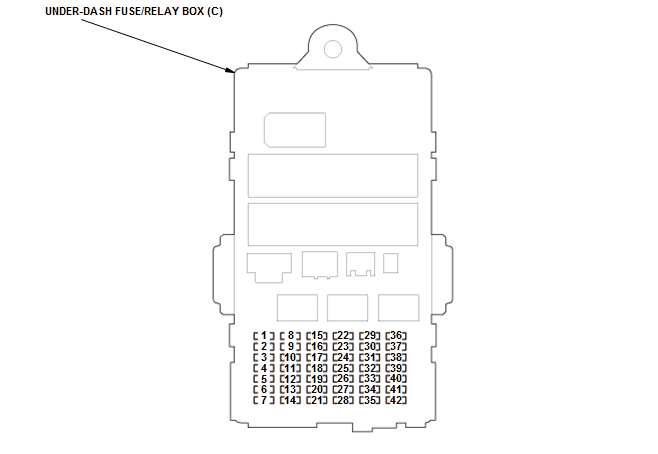

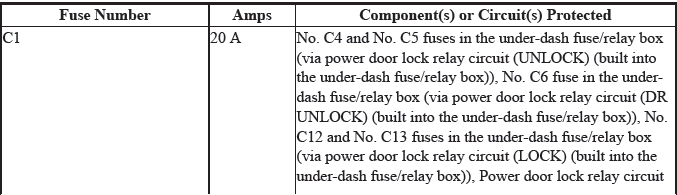

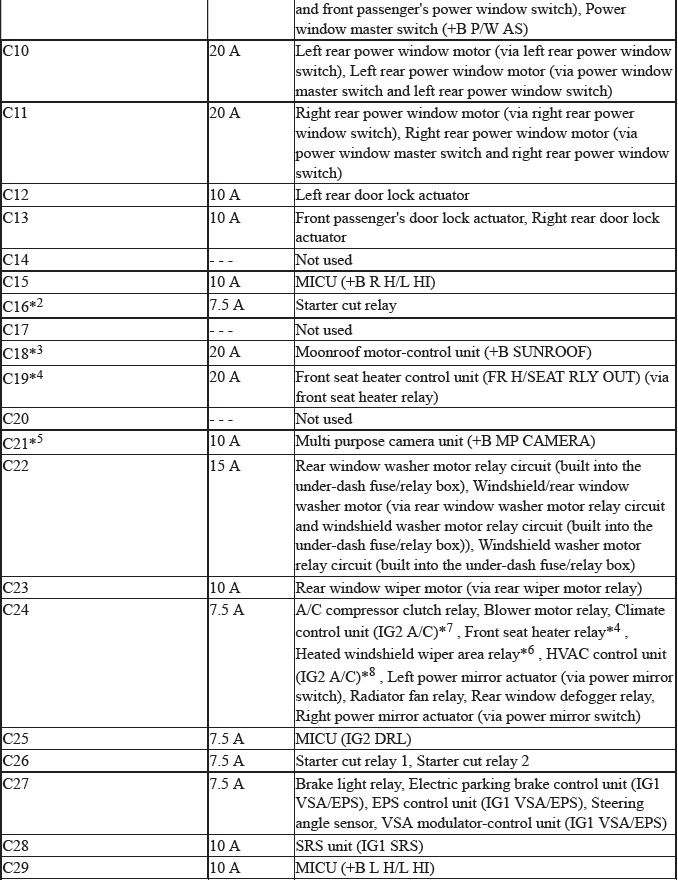

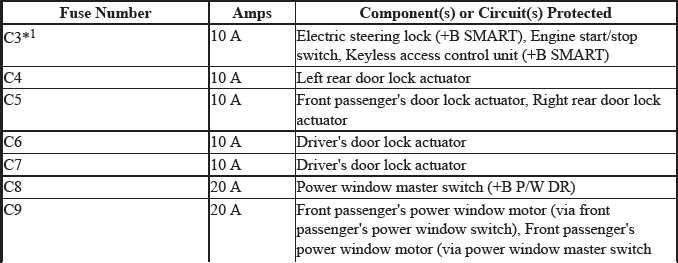

Under-Dash Fuse/Relay Box (C)

Electrical System - Testing & Troubleshooting

Electrical System - Testing & Troubleshooting

*1: With keyless access system
*2: Without keyless access system
*3: With moonroof
*4: With seat heater
*5: With forward collision warning
*6: With heated windshield wiper area
*7: With climate control
*8: Without climate control
*9: M/T
*10: CVT
*11: AWD
*12: Without navigation
*13: With navigation

Electrical System - Testing & Troubleshooting

Electrical System - Testing & Troubleshooting

Electrical System - Testing & Troubleshooting

*1: With keyless access system
*2: Without keyless access system
*3: With moonroof
*4: With seat heater
*5: With forward collision warning
*6: With heated windshield wiper area
*7: With climate control
*8: Without climate control
*9: M/T
*10: CVT
*11: AWD
*12: Without navigation
*13: With navigation

Electrical System - Testing & Troubleshooting

Electrical System - Testing & Troubleshooting

*1: With keyless access system
*2: Without keyless access system
*3: With moonroof
*4: With seat heater
*5: With forward collision warning
*6: With heated windshield wiper area
*7: With climate control
*8: Without climate control
*9: M/T
*10: CVT
*11: AWD
*12: Without navigation
*13: With navigation

Electrical System - Testing & Troubleshooting

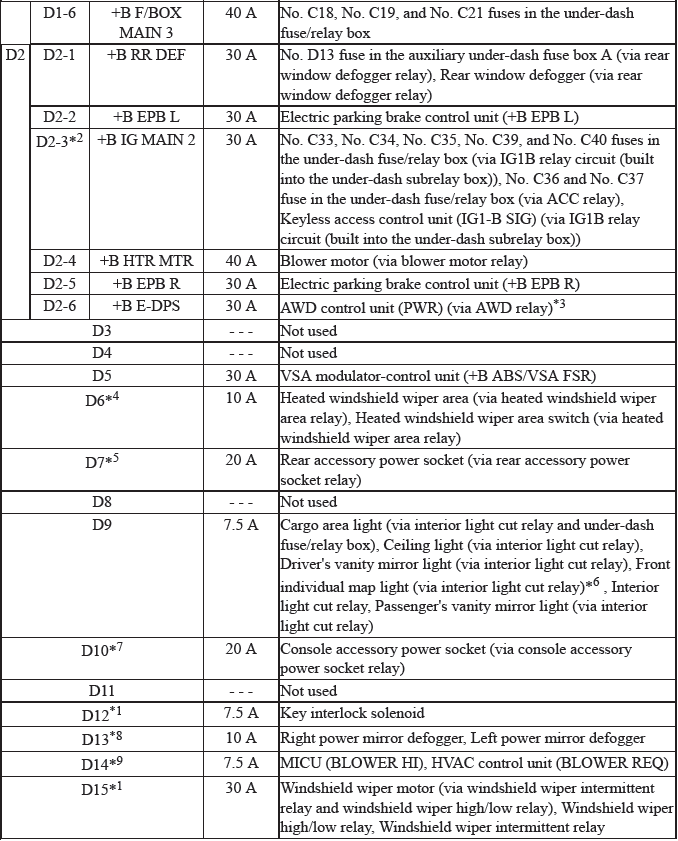

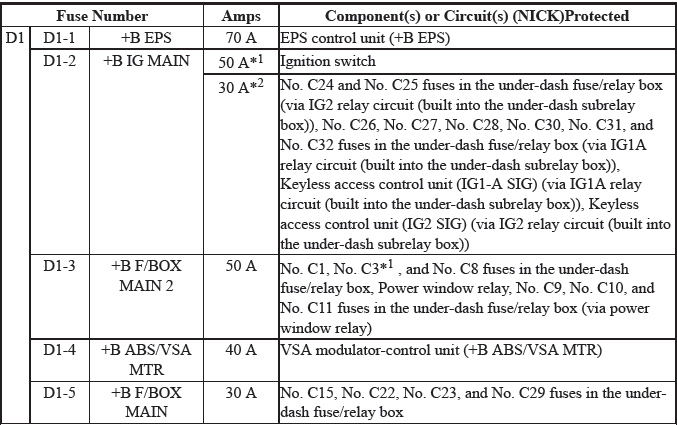

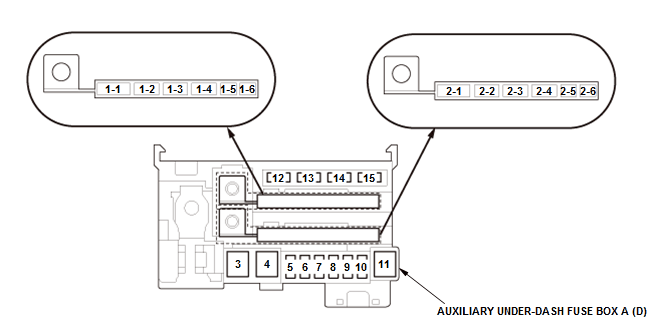

Auxiliary Under-Dash Fuse Box A (D)

Electrical System - Testing & Troubleshooting

Electrical System - Testing & Troubleshooting

*1: Without keyless access system
*2: With keyless access system
*3: AWD
*4: With heated windshield wiper area
*5: With rear accessory power socket
*6: With moonroof
*7: With console accessory power socket
*8: With power mirror defogger
*9: Without climate control

Electrical System - Testing & Troubleshooting
