WATER PUMP INSPECTION
Inspection
1. Water Pump Pulley Mounting Bolt - Loosen
.png)

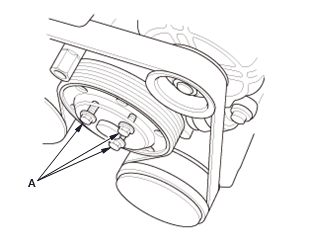

- Loosen the bolts (A).
2. Drive Belt - Remove

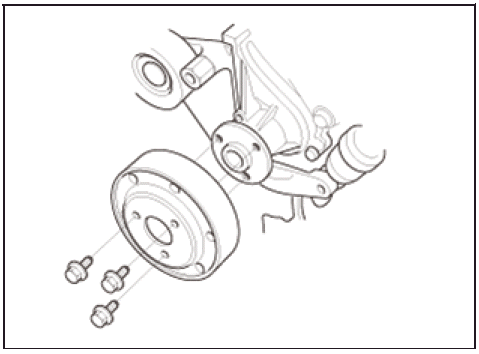

3. Water Pump Pulley - Remove
.png)
4. Water Pump - Inspect
.png)
- Turn the water pump flange counterclockwise, and check that it turns
freely. If it does not turn freely, replace the water pump.
NOTE: When you check the water pump, you may see a small amount of "weeping" from the bleed holes (A). This is normal.

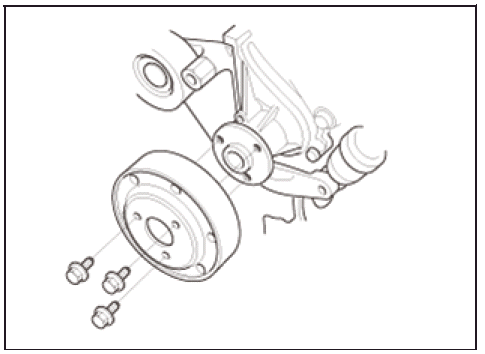

5. Water Pump Pulley - Loosely Install
.png)
6. Drive Belt - Install

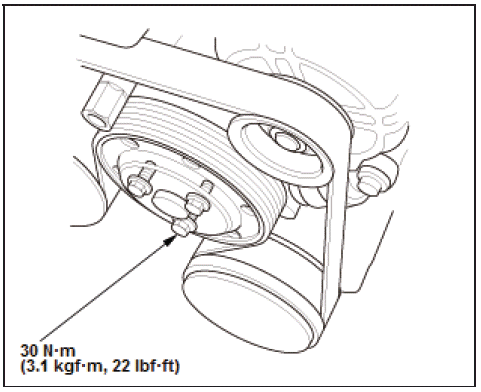

7. Water Pump Pulley Mounting Bolt - Tighten
.png)
