Honda HR-V: Interior Convenience Items

■Glove Box

Pull the handle to open the glove box.

Interior Lights/Interior Convenience Items


WARNING

An open glove box can cause serious injury to your passenger in a crash, even if the passenger is wearing the seat belt.

Always keep the glove box closed while driving.

■Console Compartment

Pull the handle to open the console compartment.

Interior Lights/Interior Convenience Items


■Beverage Holders

NOTICE

Spilled liquids can damage the upholstery, carpeting, and electrical components in the interior.

Be careful when you are using the beverage holders.

Hot liquid can scald you.

■ Front seat beverage holders

Interior Lights/Interior Convenience Items


■ Center console beverage holders

To put a short-size beverage: Push down the bottom plate

Interior Lights/Interior Convenience Items


To put a tall-size beverage: Pull up the bottom plate.

Interior Lights/Interior Convenience Items

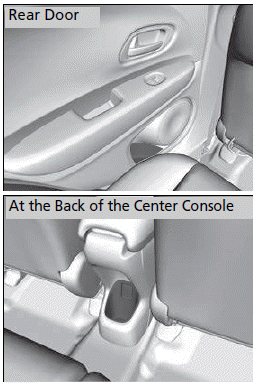

■ Rear seat beverage holders

Interior Lights/Interior Convenience Items

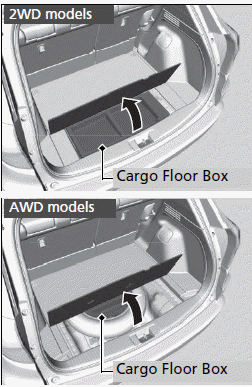

■Cargo Floor Box

Pull up the cargo area floor lid.

Interior Lights/Interior Convenience Items


■Accessory Power Sockets

NOTICE

Each accessory power socket is designed to supply power for 12 volt DC accessories that are rated 180 watts (15 amps) or less.

To prevent battery drain, only use the power socket with the engine running.

When both sockets are being used, the combined power rating of the accessories should not exceed Cover 180 watts (15 amps).

The accessory power socket can be used when the ignition switch is in ACCESSORY (I) or ON (II)*1.

■ Accessory power socket (console panel)

Open the cover to use it.

Interior Lights/Interior Convenience Items


■ Accessory power socket (rearward of center console)

Open the cover to use it.

Interior Lights/Interior Convenience Items


*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

■ Accessory power socket (cargo area)*

Open the cover to use it.

Interior Lights/Interior Convenience Items


■Coat Hook

There is a coat hook on the rear left grab handle. Pull it down to use it.

Interior Lights/Interior Convenience Items


The coat hook is not designed for large or heavy items.

■Tie-down Anchors

The tie-down anchors on the cargo area floor can be used to install a net for securing items.

Interior Lights/Interior Convenience Items


■Tonneau Cover

The tonneau cover can be used to conceal your items and protect them from direct sunlight.

■ To remove:

Pull out the tonneau cover rearwards and remove it.

Interior Lights/Interior Convenience Items

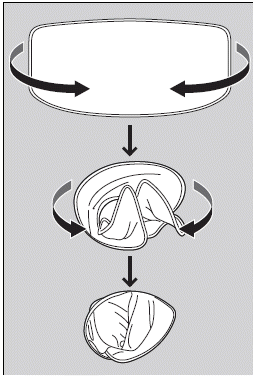

■ To fold:

The tonneau cover is collapsible.

1. Take the opposite sides, fold the cover halfway, then twist into opposite ways.

2. Curl to narrow the cover as shown.

Interior Lights/Interior Convenience Items


Do not let anyone access items in the cargo area while driving. Loose items can cause injury if you have to brake hard.

Do not stack objects higher than the top of the seat in the cargo area. They could block your view and be thrown about the vehicle during a sudden stop.

To prevent tonneau cover damage, do not:

  • Place items on the tonneau cover.
  • Put weight on the tonneau cover.

When reinstalling the tonneau cover, put the tagged side first.

Interior Lights/Interior Convenience Items


■Seat Heaters

The ignition switch must be in ON (II)*1 to use the seat heaters. The HI setting heats the seats faster than the LO setting.

Interior Lights/Interior Convenience Items


Touch the seat heater icon.

Once - The HI setting (two indicators on)

Twice - The LO setting

Three times - The OFF setting (no indicator on)

When a comfortable temperature is reached while using the seat heater in HI, select LO to keep the seat warm.

Interior Lights/Interior Convenience Items


WARNING

Heat induced burns are possible when using seat heaters.

Persons with a diminished ability to sense temperature (e.g., persons with diabetes, lower-limb nerve damage, or paralysis) or with sensitive skin should not use seat heaters.

Do not use the seat heaters even in LO when the engine is off. Under such conditions, the battery may be weakened, making the engine difficult to start.

In the LO setting, the heater runs continuously and does not automatically turn off.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
