CRUISE CONTROL SYMPTOM TROUBLESHOOTING INDEX

Cruise control system

Troubleshooting Index

Cruise Control System - Testing & Troubleshooting

Cruise Control System - Testing & Troubleshooting

Cruise Control System - Testing & Troubleshooting

Cruise Control System - Testing & Troubleshooting

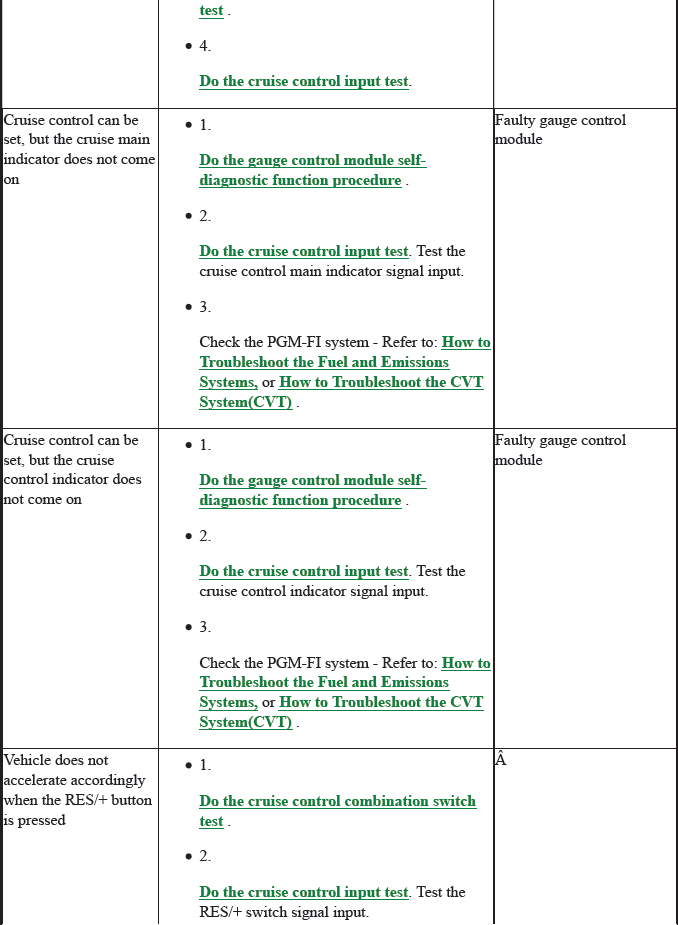

CRUISE CONTROL CAN BE SET, BUT THE CRUISE CONTROL INDICATOR DOES NOT COME ON

Diagnostic procedure

1. Entering The Self-Diagnostic Function (Manual Method)

2. Gauge Control Module Input Test. Test the cruise control indicator signal input.

3. How To Troubleshoot The Fuel And Emissions Systems.

CRUISE CONTROL CAN BE SET, BUT THE CRUISE MAIN INDICATOR DOES NOT COME ON

Diagnostic procedure

1. Entering The Self-Diagnostic Function (Manual Method).

2. Gauge Control Module Input Test. Test the cruise control indicator signal input.

3. How To Troubleshoot The Fuel And Emissions Systems.

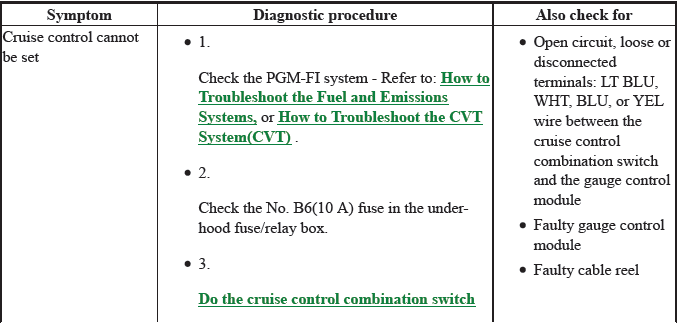

CRUISE CONTROL CANNOT BE SET

Diagnostic procedure

1. How To Troubleshoot The Fuel And Emissions Systems.

Check the No. B6(10 A) fuse in the under-hood fuse/relay box.

3. Cruise Control Combination Switch Removal, Installation, And Test

4. Cruise Control (ECM/PCM) Input Test

SET SPEED DOES NOT CANCEL (ENGINE RPM STAYS HIGH) WHEN THE CLUTCH PEDAL IS PRESSED FOR MORE THAN 5 SECONDS (M/T)

Diagnostic procedure

1. Cruise Control (ECM/PCM) Input Test

Test the clutch pedal stroke sensor signal input.

2. How To Troubleshoot The Electric Parking Brake

Also check for

Faulty clutch pedal stroke sensor

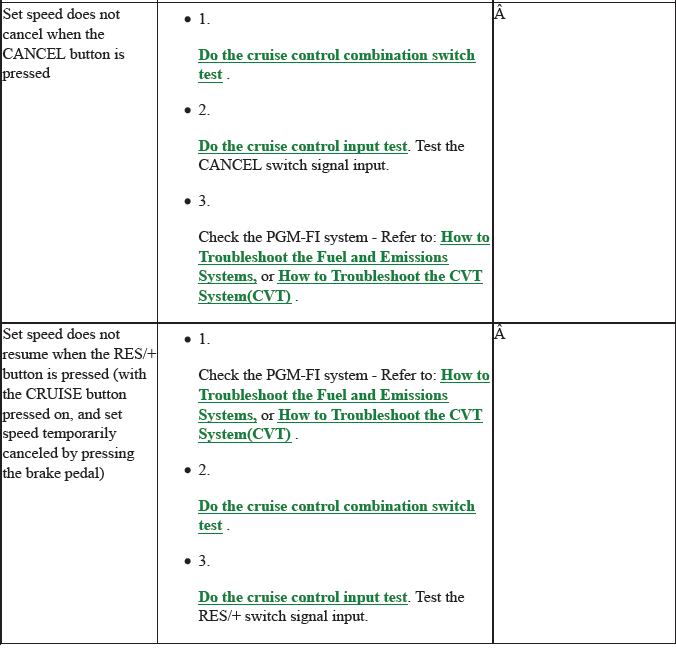

SET SPEED DOES NOT CANCEL WHEN THE CANCEL BUTTON IS PRESSED

Diagnostic procedure

1. Cruise Control Combination Switch Removal, Installation, And Test

2. Cruise Control (ECM/PCM) Input Test

Test the CANCEL switch signal input.

3. How To Troubleshoot The Fuel And Emissions Systems.

SET SPEED DOES NOT CANCEL WHEN THE MAIN BUTTON IS PRESSED

Diagnostic procedure

1. Cruise Control Combination Switch Removal, Installation, And Test

2. Cruise Control (ECM/PCM) Input Test

Test the CANCEL switch signal input.

3. How To Troubleshoot The Fuel And Emissions Systems.

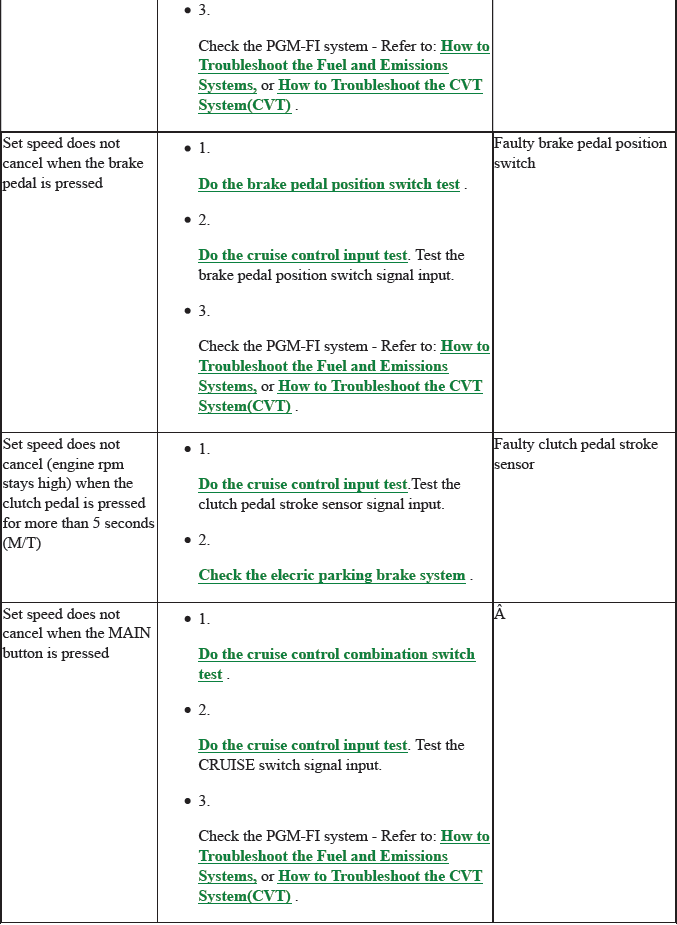

SET SPEED DOES NOT CANCEL WHEN THE BRAKE PEDAL IS PRESSED

Diagnostic procedure

1. Brake Pedal And Brake Pedal Position Switch Adjustment

2. Cruise Control (ECM/PCM) Input Test

Test the brake pedal position switch signal input.

3. How To Troubleshoot The Fuel And Emissions Systems.

Also check for

Faulty brake pedal position switch

SET SPEED DOES NOT RESUME WHEN THE RES/+ BUTTON IS PRESSED (WITH THE CRUISE BUTTON PRESSED ON, AND SET SPEED TEMPORARILY CANCELED BY PRESSING THE BRAKE PEDAL)

Diagnostic procedure

1. How To Troubleshoot The Fuel And Emissions Systems.

2. Cruise Control Combination Switch Removal, Installation, And Test

3. Cruise Control (ECM/PCM) Input Test

Test the RES/+ switch signal input.

VEHICLE DOES NOT ACCELERATE ACCORDINGLY WHEN THE RES/+ BUTTON IS PRESSED

Diagnostic Procedure

1. Cruise Control Combination Switch Removal, Installation, And Test

2. Cruise Control (ECM/PCM) Input Test

Test the RES/+ switch signal input.

3. How To Troubleshoot The Fuel And Emissions Systems.

CIRCUIT DIAGRAM

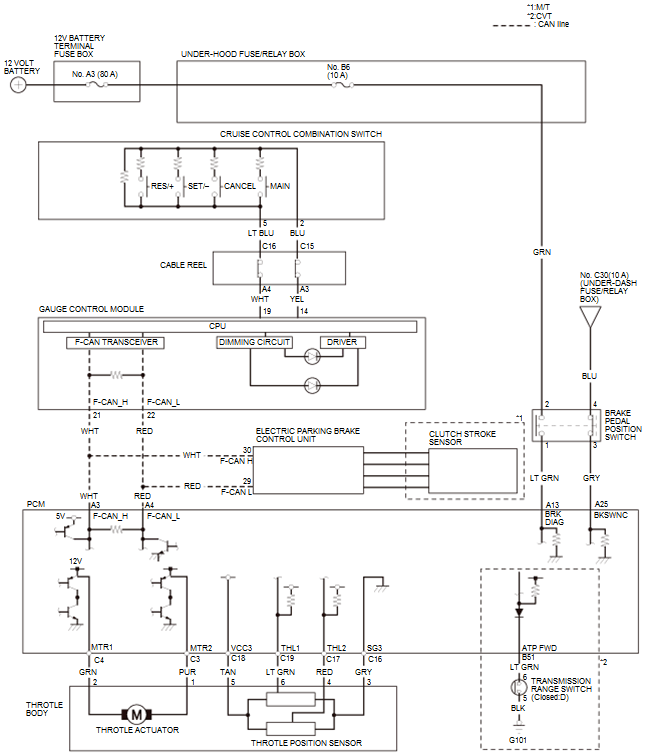

CRUISE CONTROL CIRCUIT DIAGRAM

Cruise Control System - Testing & Troubleshooting

WIRING DIAGRAM

CRUISE CONTROL ELECTRONIC WIRING DIAGRAM

Cruise Control

COMPONENT LOCATION INDEX

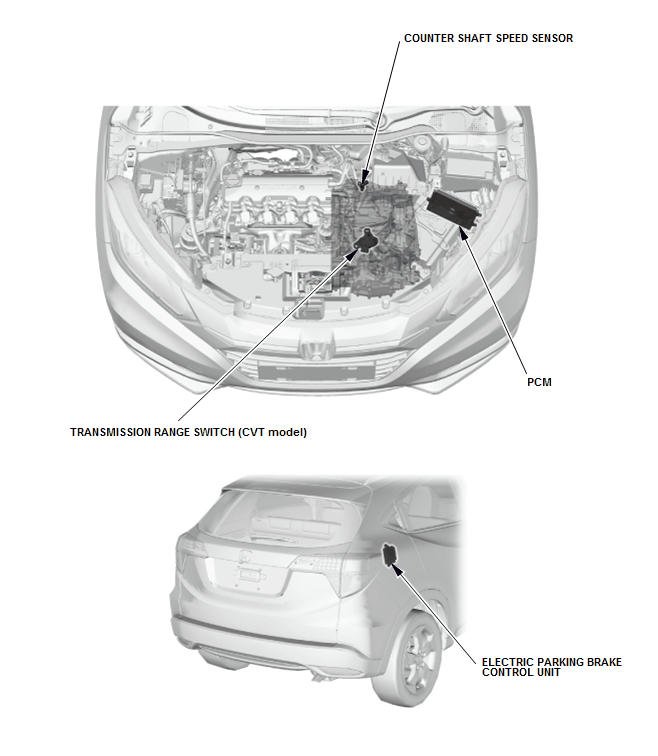

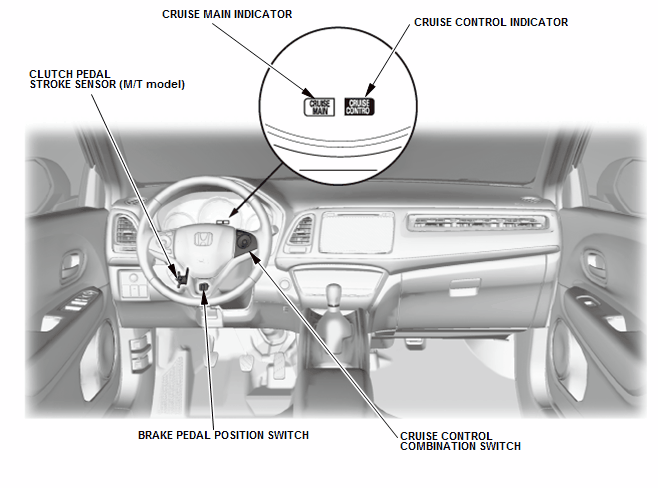

CRUISE CONTROL COMPONENT LOCATION INDEX

Cruise Control System - Testing & Troubleshooting

Cruise Control System - Testing & Troubleshooting
