Honda HR-V: Playing a CD

Your audio system supports audio CDs, CD-Rs, and CD-RWs in either MP3 or WMA, or AAC*1 format. With the CD loaded, select the CD mode.

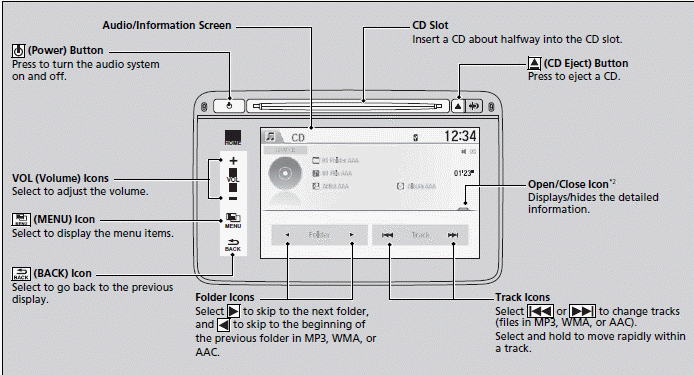

Audio System Basic Operation


*1: Only AAC format files recorded with iTunes are playable on this unit.

*2: Some or all of the lists may not be displayed.

NOTICE

Do not use CDs with adhesive labels. The label can cause the CD to jam in the unit.

WMA files protected by digital rights management (DRM) cannot be played.

The audio system displays Unplayable File, then skips to the next file.

Text data appears on the display under the following circumstances:

  • When you select a new folder, file, or track.
  • When you change the audio mode to CD.
  • When you insert a CD.

If you eject the CD but do not remove it from the slot, the system reloads the CD automatically after several seconds.

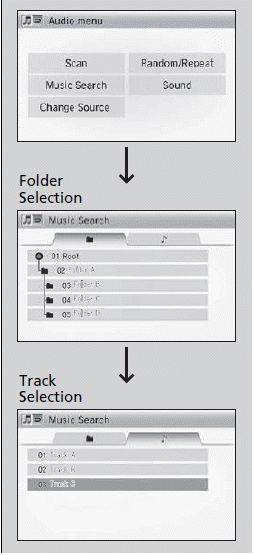

■How to Select a File from the Music Search List (MP3/WMA/ AAC)

1. Select MENU and select Music Search.

2. Select a folder.

3. Select a track.

Audio System Basic Operation


■How to Select a Play Mode

You can select scan, repeat, and random modes when playing a track or file.

1. Select MENU.

2. Select Scan or Random/Repeat.

3. Select a mode.

Audio System Basic Operation


Play Mode Menu Items

Scan

Scan Folders (MP3/WMA/AAC): Provides 10- second sampling of the first file in each of the main folders.

Scan Tracks: Provides 10-second sampling of all tracks on the CD (all files in the current folder in MP3, WMA, or AAC).

Random/Repeat

Repeat Folder (MP3/WMA/AAC): Repeats all files in the current folder.

Repeat Track: Repeats the current track/file.

Random in Folder (MP3/WMA/AAC): Plays all files in the current folder in random order.

Random All Tracks: Plays all tracks/files in random order.

■ To turn off a play mode

1. Select MENU.

2. Select the mode you want to turn off.
