Honda HR-V Owners & Service Manuals

Honda HR-V: Playing an iPod

Connect the iPod using your dock connector to the USB port, then select the iPod mode.

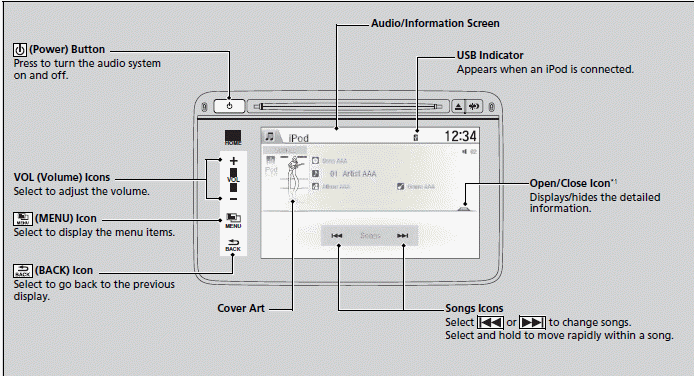

Audio System Basic Operation

*1: Some or all of the lists may not be displayed.

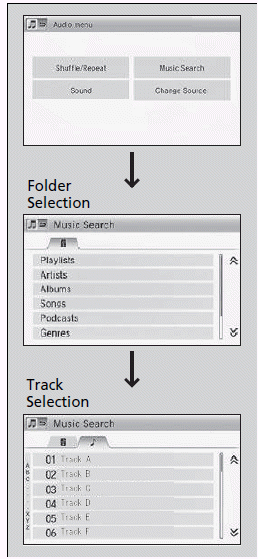

■How to Select a Song from the Music Search List

1. Select MENU and select Music Search.

2. Select the items on that menu.

Audio System Basic Operation

Available operating functions vary on models or versions. Some functions may not be available on the vehicle's audio system.

If there is a problem, you may see an error message on the audio/information screen.

If you operate the music app on your iPhone/iPod while the phone is connected to the display audio system, you may no longer be able to operate the same app on the display audio. Reconnect the device if necessary.

■How to Select a Play Mode

You can select repeat and shuffle modes when playing a file.

1. Select MENU.

2. Select Shuffle/Repeat.

3. Select a mode.

Audio System Basic Operation

Play Mode Menu Items

Repeat Song: Repeats the current file.

Shuffle Albums: Plays all available albums in a selected list (playlists, artists, albums, songs, genres, or composers) in random order.

Shuffle All Songs: Plays all available files in a selected list (playlists, artists, albums, songs, genres, or composers) in random order.

■ To turn off a play mode

1. Select MENU.

2. Select the mode you want to turn off.
