Honda HR-V: Side Turn Signal Light Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Exterior Lighting - Service Information / Side Turn Signal Light Removal and Installation

Removal

1. Power Mirror - Remove

2. Mirror Holder - Remove

3. Mirror Housing Cover - Remove

4. Side Turn Signal Light - Remove

Exterior Lighting - Service Information

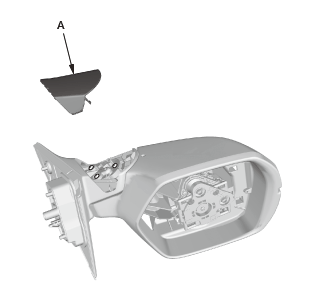

  1. Remove the cover (A).

Exterior Lighting - Service Information

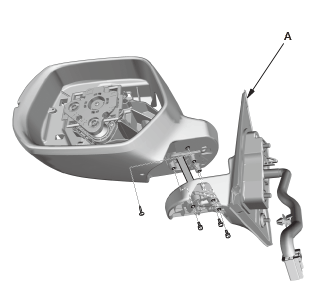

  1. Remove the bracket (A).

Exterior Lighting - Service Information

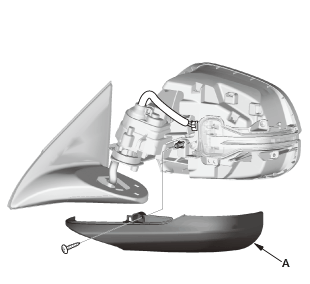

  1. Remove the mirror housing under cover (A).

Exterior Lighting - Service Information

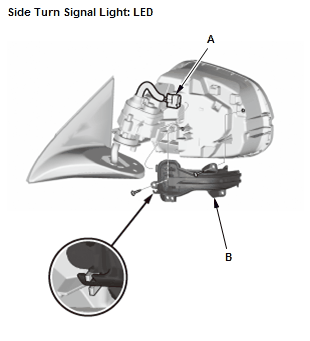

  1. Disconnect the connector (A)
  2. Remove the side turn signal light (B).

5. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

TAILLIGHT REMOVAL AND INSTALLATION

Removal & Installation

1. Taillight - Remove

Exterior Lighting - Service Information

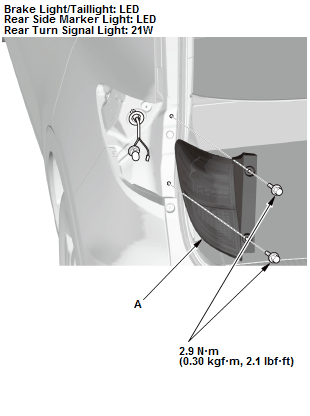

  1. Carefully slide and pull out the taillight (A).

    NOTE : Apply protective tape to the rear bumper

  2. Disconnect the connector and remove the rear turn signal light bulb socket.

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
