Honda HR-V: Specifications

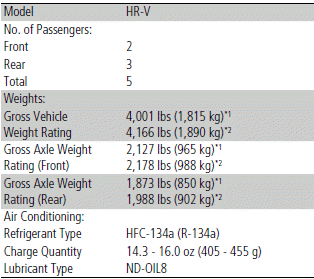

■Vehicle Specifications
.png)
*1: 2WD
*2: AWD
■Engine Specifications
.png)
■Fuel
.png)
■Washer Fluid
.png)

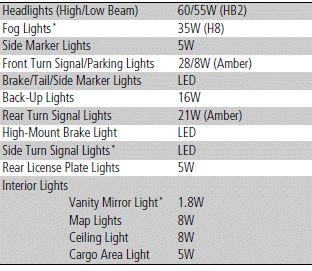

■Light Bulbs
.png)
■Brake Fluid
.png)
■Continuously Variable Transmission Fluid*
.png)
*1: 2WD
*2: AWD
■Manual Transmission Fluid*
.png)
■Rear Differential Fluid*
.png)

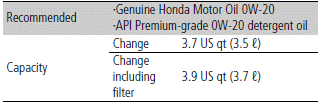

■Engine Oil
.png)

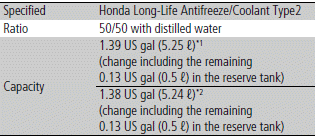

■Engine Coolant
.png)
*1: Continuously variable transmission models *2: Manual transmission models

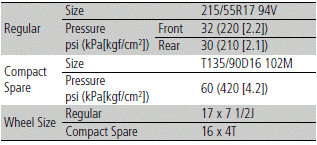

■Tire
.png)
Identification Numbers
Vehicle Identification Number (VIN), Engine Number and Transmission Number
Your vehicle has a 17-digit vehicle identification number (VIN) used to register your vehicle for warranty purposes, and for licensing and insuring your vehicle.

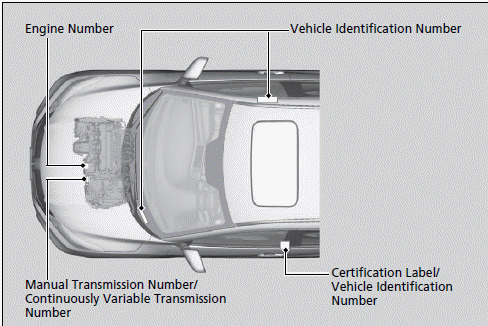

The locations of your vehicle's VIN, engine number and transmission number are shown as follows.
.png)
The interior vehicle identification number (VIN) is located under the cover.
.png)
Devices that Emit Radio Waves

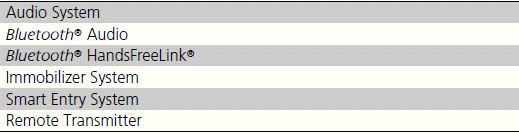

The following products and systems on your vehicle emit radio waves when in operation.
.png)
Each of the above complies with the appropriate requirements or the required standards of FCC (Federal Communications Commission) and Industry Canada Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
This device complies with Industry Canada Standard RSS-Gen/210/310.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
