Honda HR-V: USB Device Does Not Function (Without Navigation, Color Audio Type (5-inch Screen) )

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Audio Visual Systems - Testing & Troubleshooting / Symptom Troubleshooting / USB Device Does Not Function (Without Navigation, Color Audio Type (5-inch Screen) )

NOTE:

  • Check the vehicle 12 volt battery condition first.
  • Check the USB's specifications:
    • Mass-storage class ready digital audio player with USB 2.0 port
    • More than 256 MB storage space
    • Supports MP3, WMA, and AAC (encoded with the iTunes) files, DRM files are not supported
  • Not all players and player functions work with the USB adapter. Please see the Owner's Manual for more information. Always test the customer's USB device in a known-good vehicle of the same year and trim (if possible). Technologies change and are updated frequently which may result that USB devices may work in newer vehicles, but not in older vehicles of the same model.
  • Before doing this troubleshooting, check the USB Error Cords.
  • Check the connectors for poor connections or loose terminals.

1. Determine possible failure area (USB device, others).

Connect the customer's USB device to a known-good vehicle (same year/trim) that is equipped with a USB port, and check the USB device operation.

Does the USB device working properly in the known-good vehicle?

YES

Go to step 2.

NO

See the Owner's Manual for details about the USB device requirements and approved file types.

2. Problem verification:

  1. On the customer's vehicle, connect the customer's USB device to the USB port.
  2. Turn the vehicle to the ON mode.
  3. Check the USB device operation in the customer's vehicle.

Does the USB device work properly in the customer's vehicle?

YES

Intermittent failure, the system is OK at this time. Inspect the connectors of the USB device, USB port and USB adapter for wear.

NO

The failure is duplicated, go to step 3.

3. Open wire check (USB lines):

  1. Turn the vehicle to the OFF (LOCK) mode.
  2. Disconnect the following connectors.

Audio unit connector F (5P)

USB adapter 5P connector

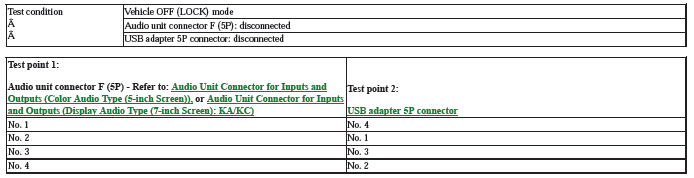

  1. Check for continuity between test points 1 and 2.

Audio Visual Systems - Testing & Troubleshooting

Is there continuity?

YES

The USB harness is OK. Go to step 4.

NO

There is an open in the wire (s) between the audio unit and the USB adapter. Replace the affected shielded harness.

4. Audio unit check (substitution):

  1. Substitute a known-good audio unit - Refer to: Audio Unit Removal and Installation (Display Audio Type (7-inch Screen) ), or Audio Unit Removal and Installation (Color Audio Type (5-inch Screen) ).
  2. Reconnect all the connectors, and recheck.

Does the symptom go away?

YES

Replace the original audio unit.

NO

Replace the USB adapter.
