Honda HR-V: Automatic Lighting Control Unit-Sensor Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Exterior Lighting - Service Information / Automatic Lighting Control Unit-Sensor Removal and Installation

Removal & Installation

1. Automatic Lighting Control Unit-Sensor - Remove

Exterior Lighting - Service Information

  1. Pull out the automatic lighting control unit-sensor (A).

    NOTE : Be careful not to damage the automatic lighting control unit-sensor and the dashboard

  2. Disconnect the connector (B).

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

BRAKE PEDAL POSITION SWITCH REMOVAL AND INSTALLATION

Removal & Installation

1. Brake Pedal Position Switch - Remove

Exterior Lighting - Service Information

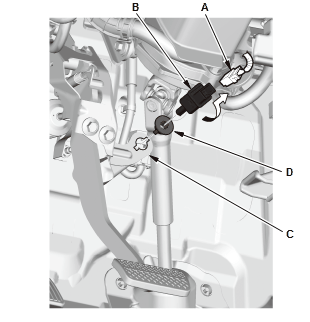

  1. Disconnect the connector (A)
  2. Turn the brake pedal position switch (B) 45º counterclockwise to remove the switch from the pedal bracket (C)
  3. Remove the attaching piece (D).

2. Brake Pedal and Brake Pedal Position Switch - Adjust

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
