Honda HR-V: Front Fog Light Bulb Removal and Installation
Removal & Installation
1. Front Inner Fender - Remove
- Remove the front inner fender as needed - Refer to: Front Inner Fender
Removal and
Installation, or Rear Inner Fender Removal and Installation.
2. Front Fog Light Bulb - Remove
.png)
- Disconnect the connector

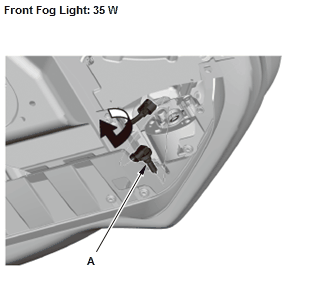

- Turn the bulb (A) 45º counterclockwise (left side) or clockwise (right
side) to remove it from the housing.
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
FRONT FOG LIGHT REMOVAL AND INSTALLATION
Removal & Installation
1. Front Bumper - Remove
2. Front Fog Light - Remove
.png)

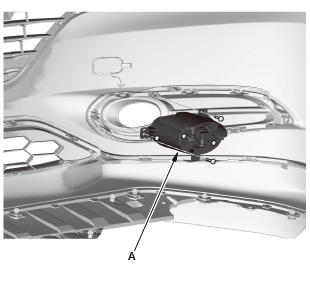

- Remove the front fog light (A) with the bracket.
.png)

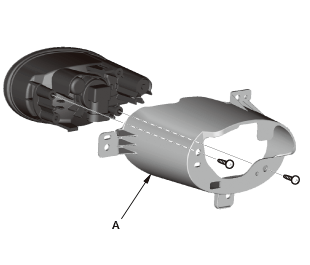

- Remove the bracket (A)
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
4. Front Fog Light - Adjust
HAZARD WARNING SWITCH REMOVAL AND INSTALLATION
Removal & Installation
1. Passenger's Dashboard Panel - Remove - Refer to: Passenger's Dashboard
Panel Removal and
Installation, or Driver's Dashboard Panel Removal and Installation

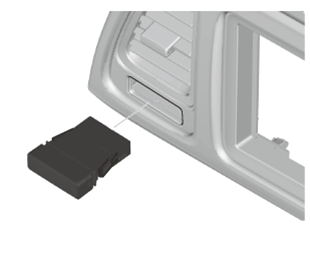

2. Hazard Warning Switch - Remove
.png)
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
