Honda HR-V: Battery Management System - General Information

Honda HR-V (2015-2021) Service Manual / Electrical / Battery Management System - General Information

DESCRIPTION

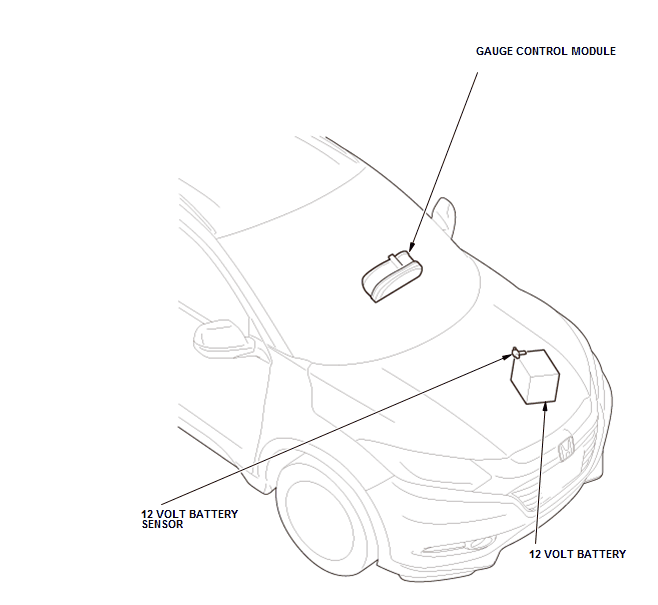

12 VOLT BATTERY MANAGEMENT SYSTEM DESCRIPTION - COMPONENTS

12 Volt Battery Sensor

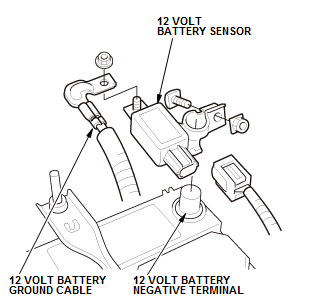

The 12 volt battery sensor is located between the 12 volt battery negative pole and the 12 volt battery ground cable.

Battery Management System - General Information

12 VOLT BATTERY MANAGEMENT SYSTEM DESCRIPTION - CONTROL/FUNCTION

The 12 volt battery sensor measures voltage, sensor temperature, and charge/discharge currents. According to these readings, 12 volt battery fluid temperature, internal resistance and state of charge are sent as signals from the 12 volt battery to the gauge control module.

Battery Management System - General Information

After turning the vehicle to the OFF mode, the 12 volt battery sensor observes the charge state of the 12 volt battery. When a designated threshold is reached, a signal is sent through the LIN circuit interface and displayed on the gauge control module. As a result, the sensor can alert the driver of over discharge condition when in the ACCESSORY position or automatically switch off room lamps through the MICU.

12 VOLT BATTERY MANAGEMENT SYSTEM DESCRIPTION - OVERVIEW

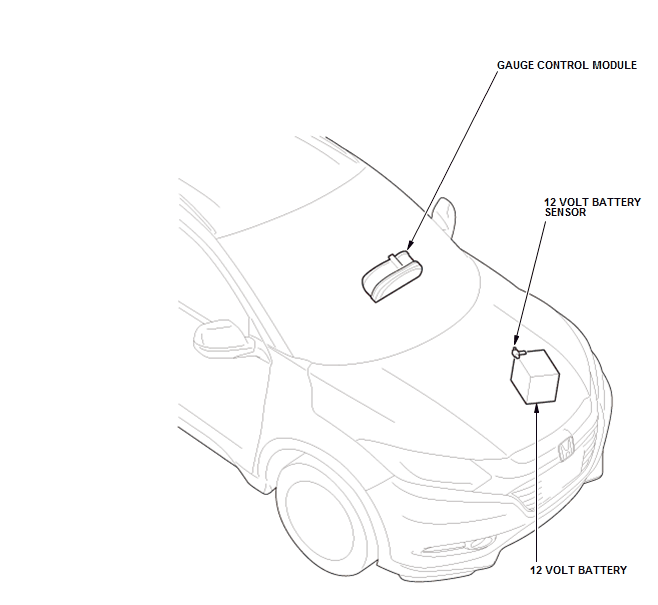

The 12 volt battery management system consists of the 12 volt battery sensor, the gauge control module, and the MICU. The 12 volt battery sensor measures current, voltage, and temperature values of the 12 volt battery. This data is used to control the interior lights.

Battery Management System - General Information

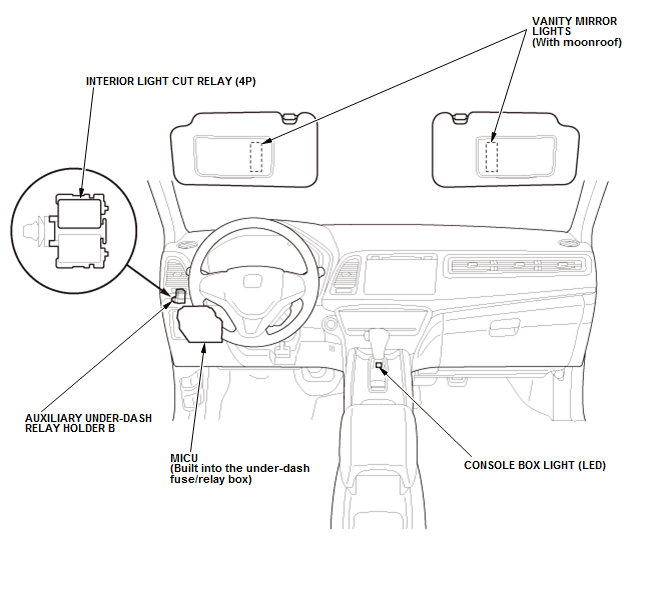

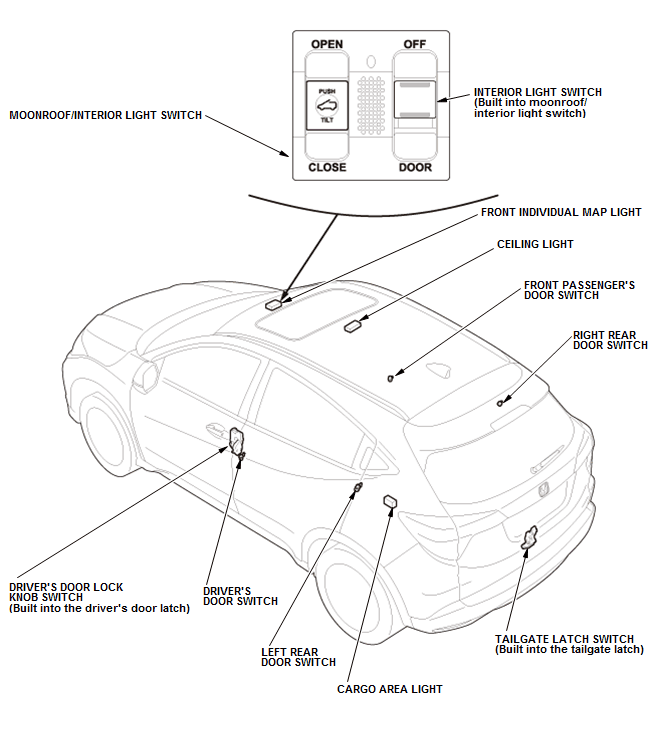

With moonroof

Battery Management System - General Information

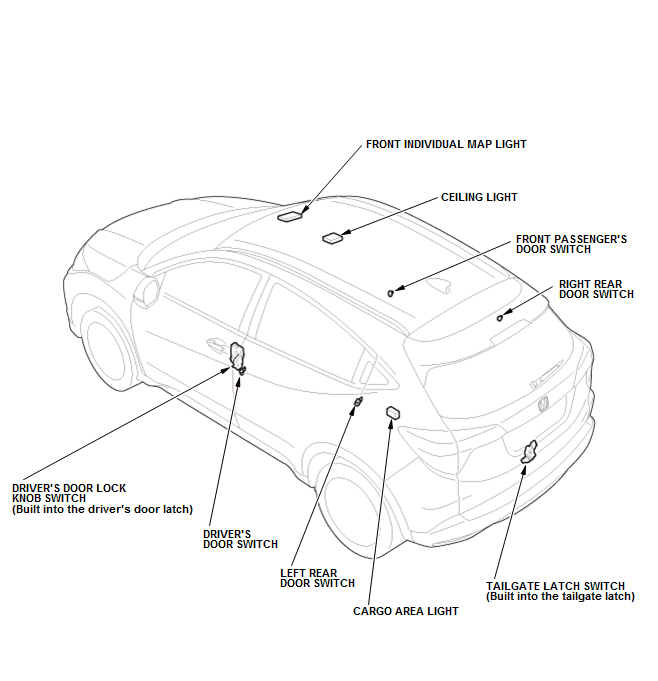

Without moonroof

Battery Management System - General Information

Battery Management System - General Information

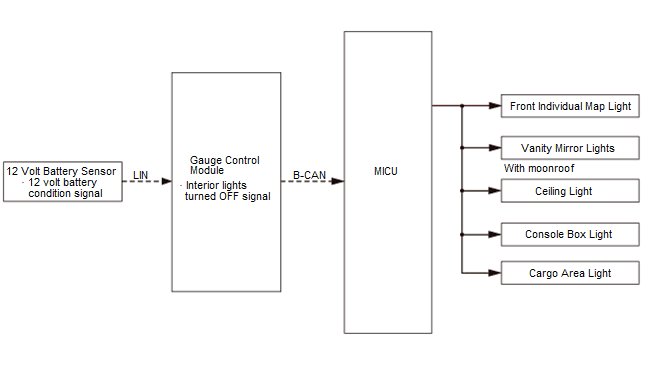

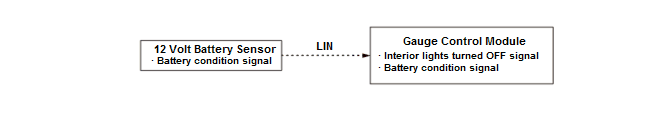

12 VOLT BATTERY MANAGEMENT SYSTEM DESCRIPTION - SYSTEM DIAGRAM

Battery Management System - General Information

CIRCUIT DIAGRAM

12 VOLT BATTERY MANAGEMENT SYSTEM CIRCUIT DIAGRAM

Battery Management System - General Information

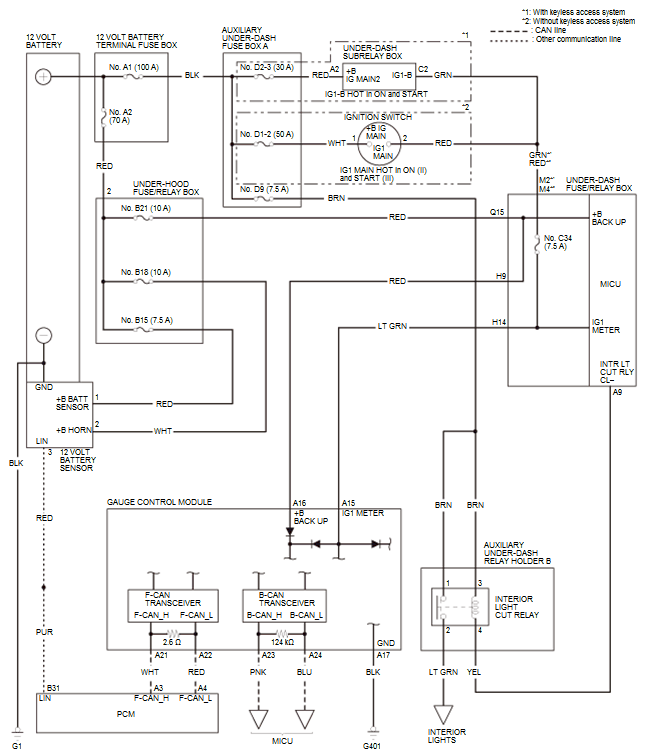

Fig. 1: 12 Volt Battery Management System Circuit Diagram

COMPONENT LOCATION INDEX

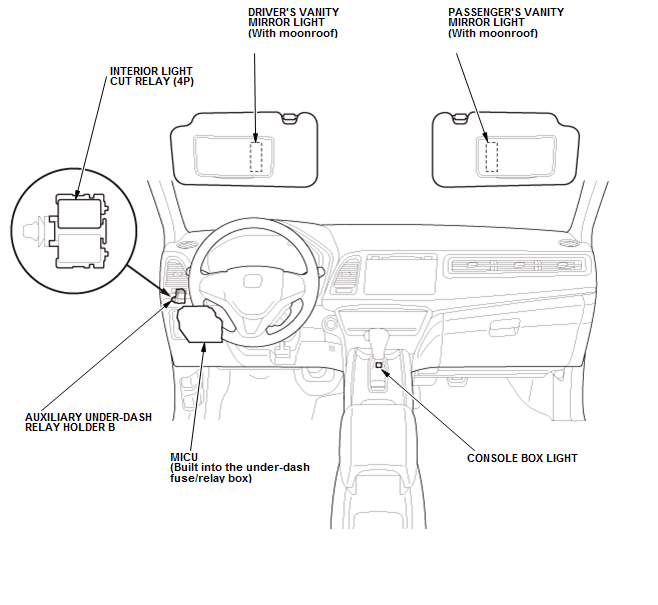

12 VOLT BATTERY MANAGEMENT SYSTEM COMPONENT LOCATION INDEX

Battery Management System - General Information

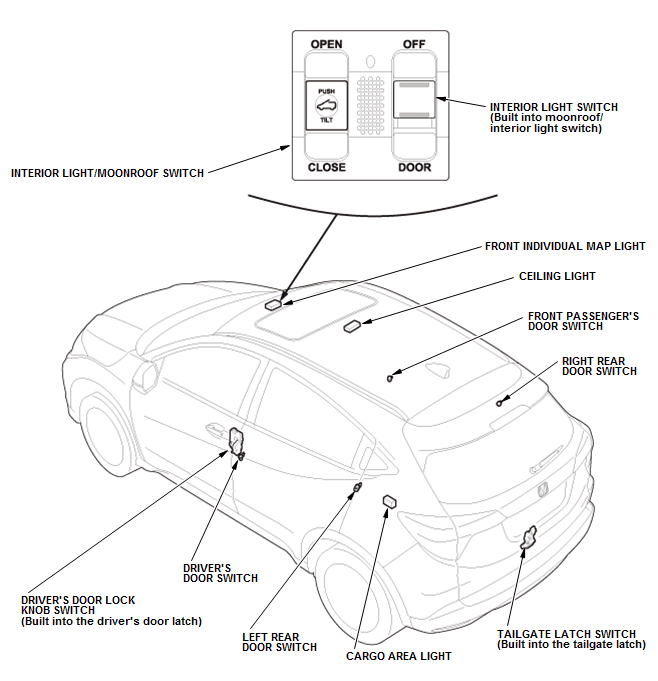

With moonroof

Battery Management System - General Information

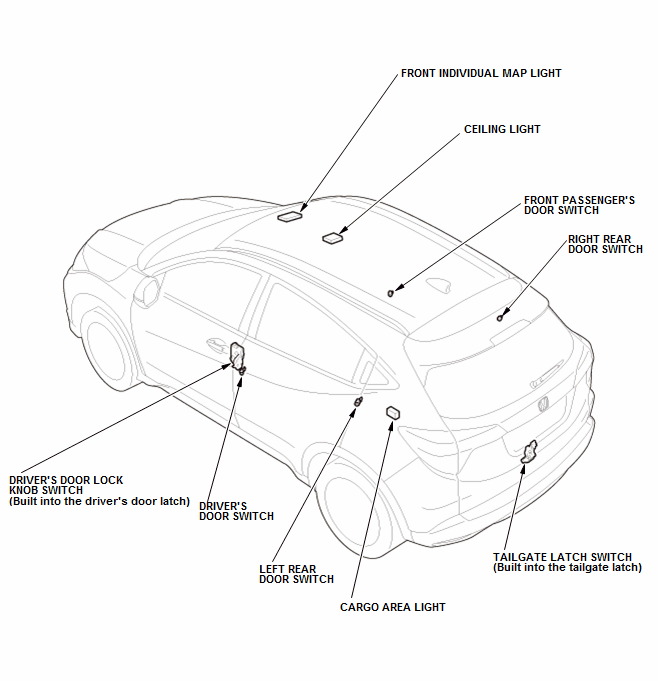

Without moonroof

Battery Management System - General Information

Battery Management System - General Information
