Honda HR-V: Brake Hose and Line Inspection

Inspection

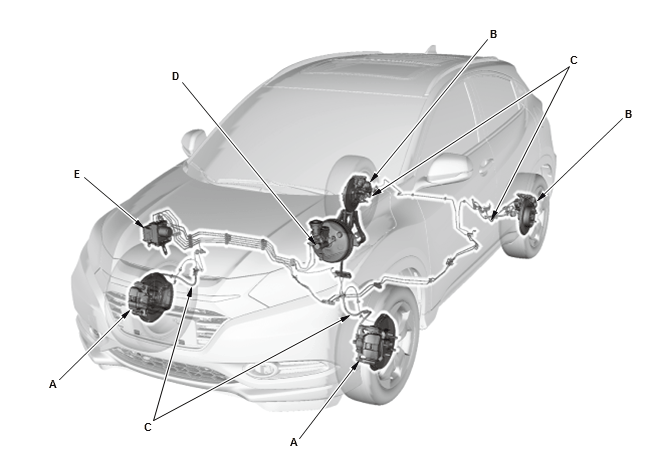

1. Brake Hose and Line - Inspect

  1. Check the brake lines for damage, rusting, and leaks. Also check for bent brake lines

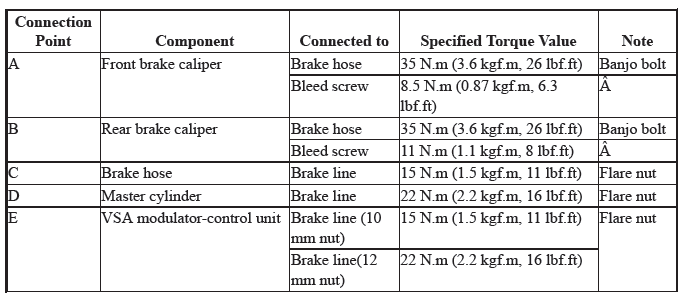

  2. Check for leaks at hose and line joints and connections, and retighten if necessary
  3. Check the master cylinder and the VSA modulator-control unit for damage and leaks.

Brake System - Overhaul, Testing & Troubleshooting

Brake System - Overhaul, Testing & Troubleshooting

BRAKE MASTER CYLINDER INSPECTION (KA/KC)

Inspection

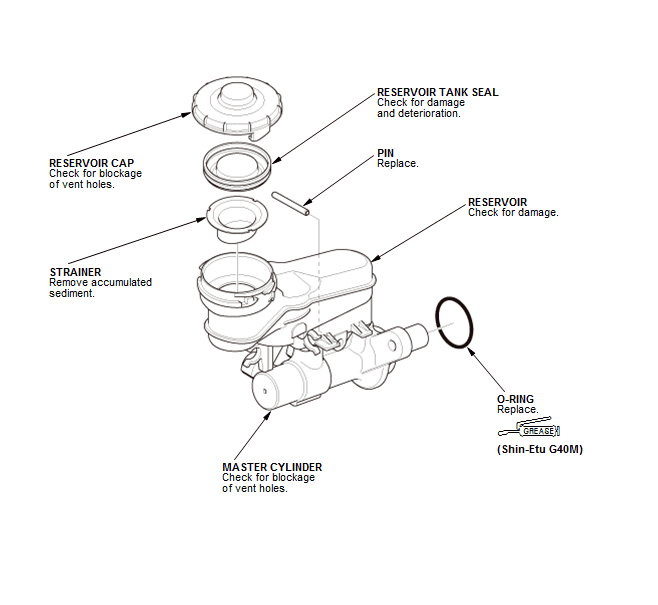

1. Master Cylinder - Inspect

NOTE:

  • Before reassembling, check that all the parts are free of dirt and other foreign particles.
  • Do not try to disassemble the master cylinder assembly. Replace the master cylinder assembly with a new part if necessary.
  • Do not allow dirt or foreign matter to contaminate the brake fluid.
  • Use only new Honda DOT 3 Brake Fluid from an unopened container. Using a non-Honda brake fluid can cause corrosion and shorten the life of the system.
