Honda HR-V: Connector for Inputs and Outputs

CLIMATE CONTROL UNIT CONNECTOR FOR INPUTS AND OUTPUTS

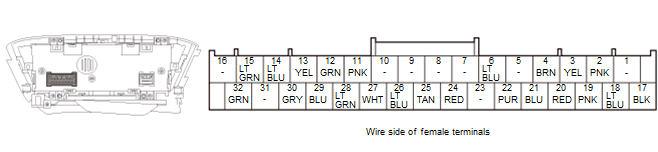

Climate Control Unit Connector A (32P)

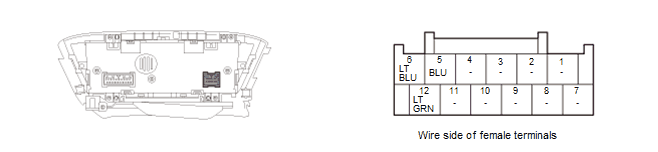

Climate Control Unit Connector B (12P)*

*:Dual A/C type

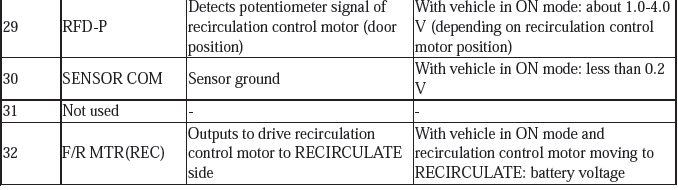

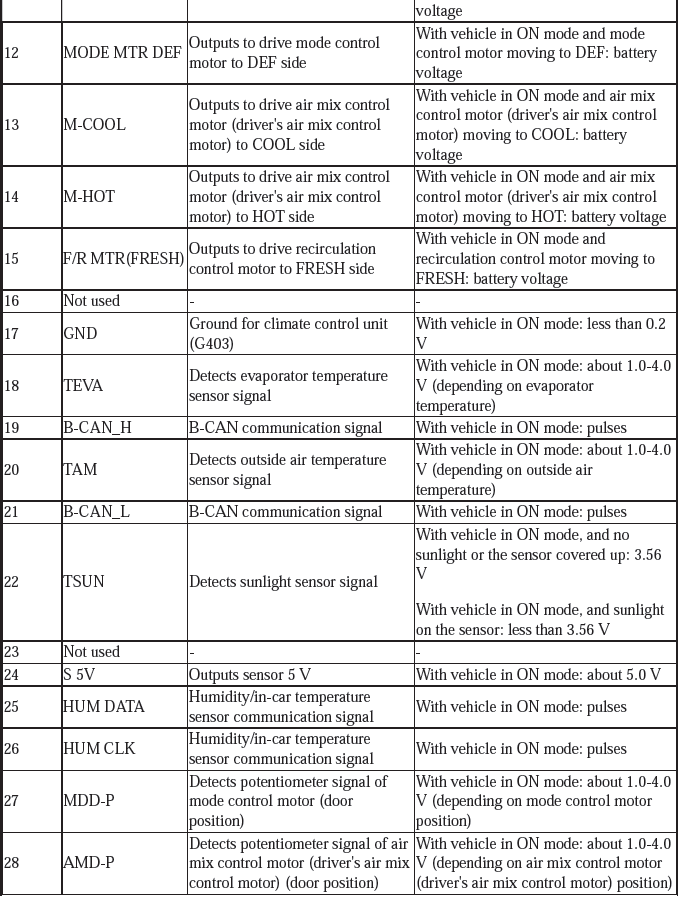

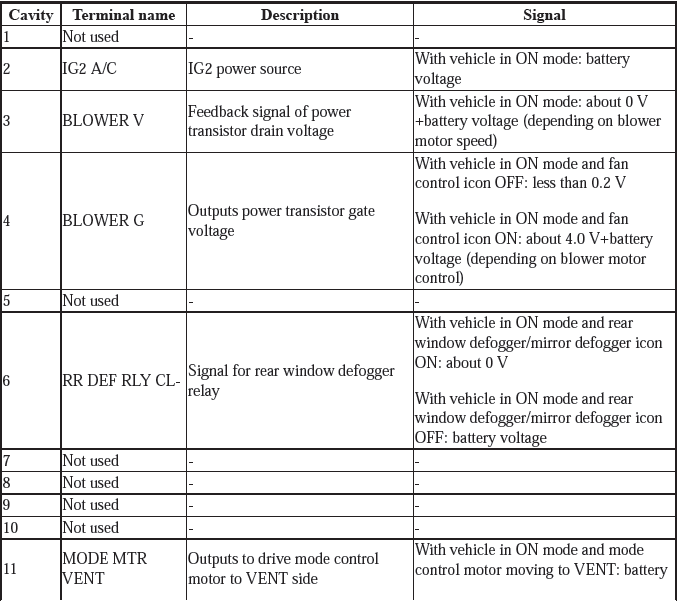

Climate Control Unit Connector A (32P)

HVAC System - Testing & Troubleshooting

HVAC System - Testing & Troubleshooting

HVAC System - Testing & Troubleshooting

HVAC System - Testing & Troubleshooting

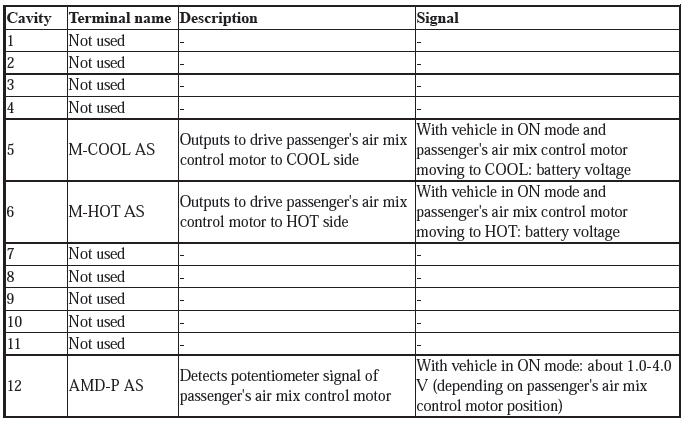

Climate Control Unit Connector B (12P)

HVAC System - Testing & Troubleshooting

HVAC System - Testing & Troubleshooting

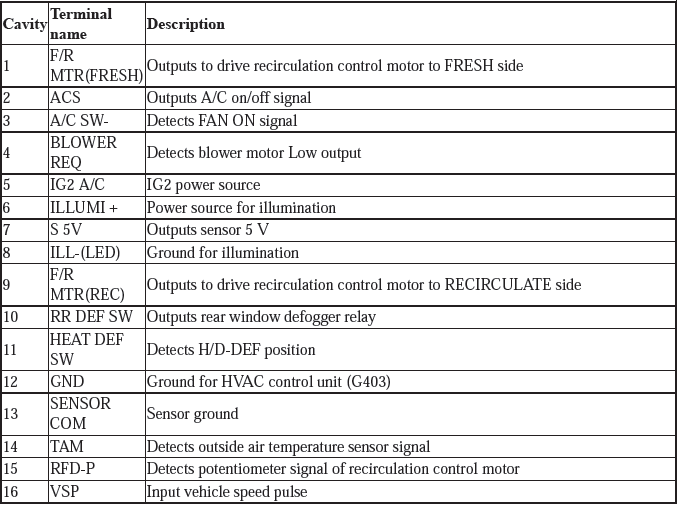

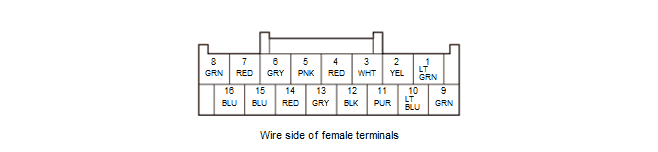

HVAC CONTROL UNIT CONNECTOR FOR INPUTS AND OUTPUTS (KA/KX)

HVAC System - Testing & Troubleshooting

HVAC System - Testing & Troubleshooting
