Honda HR-V: Using HFL

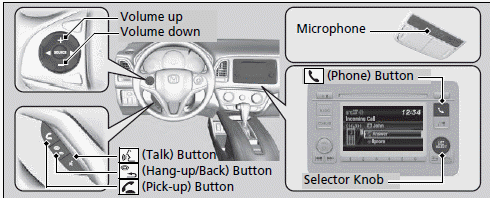

■HFL Buttons

Bluetooth HandsFreeLink


(Pick-up) button: Press to go
directly to the Phone screen or to answer an incoming call.

(Hang-up/Back) button: Press
to end a call or to cancel a command.

(Talk) button: Press to call a
number with a stored voice tag.

(Phone) button: Press to go
directly to the Phone screen.

Selector knob: Rotate to select
an item on the screen, then press .


■HFL Status Display

The audio/information screen notifies you when there is an incoming call.

Bluetooth HandsFreeLink


The information that appears on the audio/ information screen varies between phone models.

You can change the system language to English, French, or Spanish.

■Limitations for Manual Operation

Certain manual functions are disabled or inoperable while the vehicle is in motion.

You cannot select a grayed-out option until the vehicle is stopped.

Only previously stored speed dial entries can be called using voice commands while the vehicle is in motion.
