Honda HR-V: Description

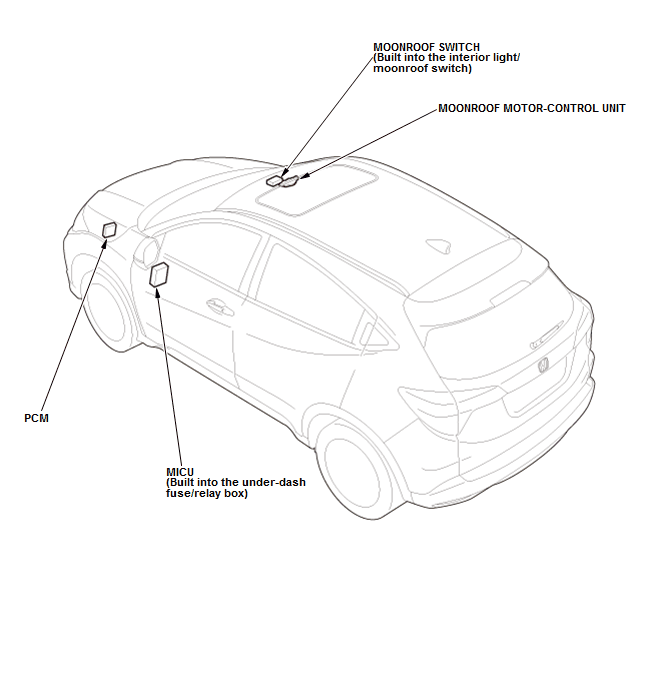

MOONROOF SYSTEM DESCRIPTION - COMPONENTS

Moonroof Switch

The moonroof switch is mounted in the front individual map light assembly.

MOONROOF SYSTEM DESCRIPTION - CONTROL/FUNCTION

Operation (Manual)

The moonroof is activated by pushing the switch to the first detent of the open or close position.

Operation (Auto)

The automatic operation of moonroof is activated by pushing the switch to the second detent of the open or close position. The moonroof will automatically open or close completely even if the switch is released.

Tilt function

Auto tilt up operation

During moonroof auto tilt operation, the moonroof will go to full tilt up position when the moonroof tilt switch is pushed and released.

Auto tilt down operation

The moonroof is moved to the full closing position when the close switch is pushed to second detent position, and then released.

Manual operation (only for tilt down)

In a tilted position, the moonroof is controlled to operate the tilt down when the close switch is pushed to first detent position.

Auto Reverse Function

When the moonroof is closing and the stopping load is greater than the prescribed the value, the moonroof will move in the reverse direction momentarily then stop. The control unit detects "Pinching" by checking the pulses output from the pulse sensor in the moonroof motor.

Learning Function

The learning function allows the moonroof to open and close with auto operation. If learning is not completed, the auto operation will not function.

MOONROOF SYSTEM DESCRIPTION - OVERVIEW

The moonroof motor-control unit includes the moonroof motor, the pulse sensor, and the control unit. The pulse sensor is built into the moonroof motor.

Moonroof - Testing & Troubleshooting

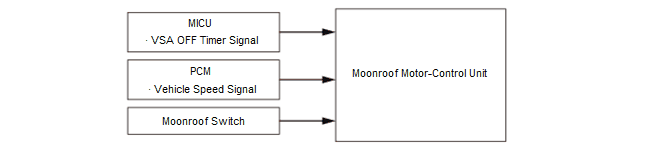

MOONROOF SYSTEM DESCRIPTION - SYSTEM DIAGRAM

Moonroof - Testing & Troubleshooting
