Honda HR-V: DTC Troubleshooting

FUEL AND EMISSIONS SYSTEMS DTC TROUBLESHOOTING INDEX (KA/KC)

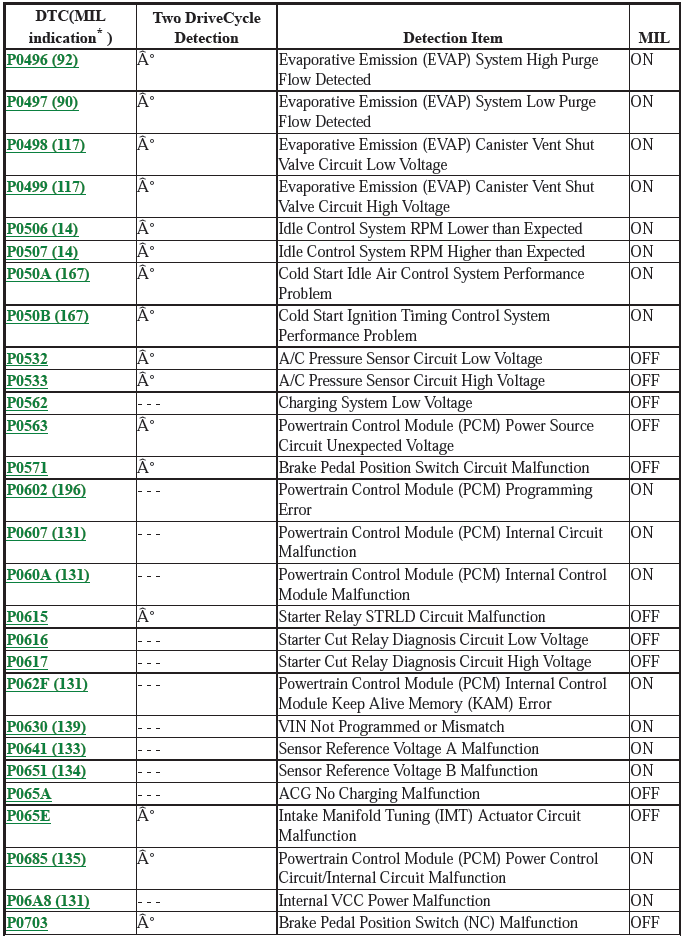

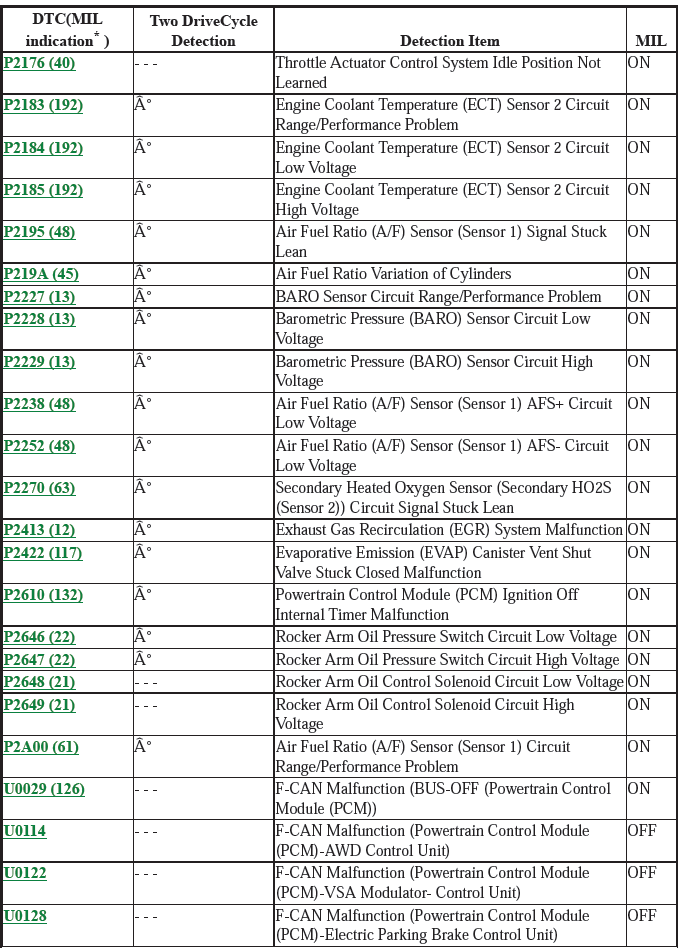

DTC Troubleshooting Index

Fuel and Emissions - Testing & Troubleshooting

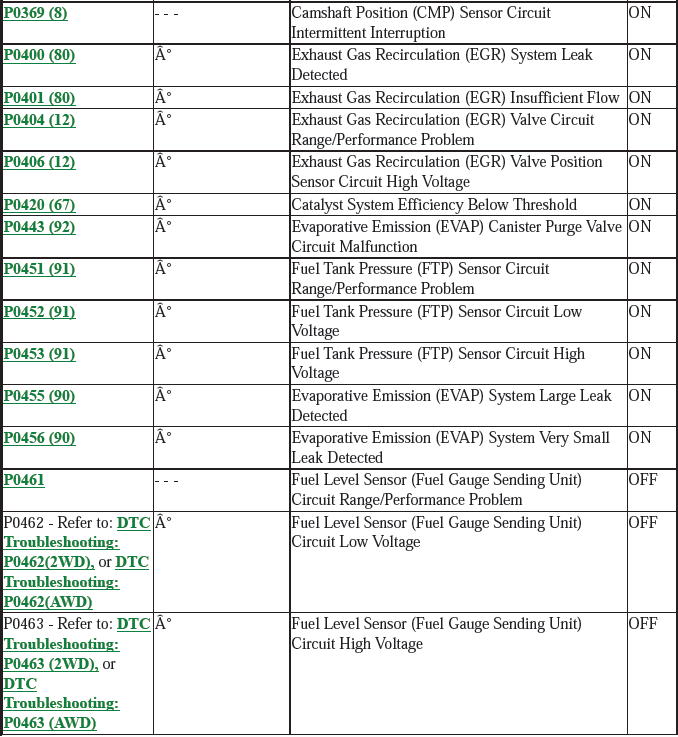

Fuel and Emissions - Testing & Troubleshooting

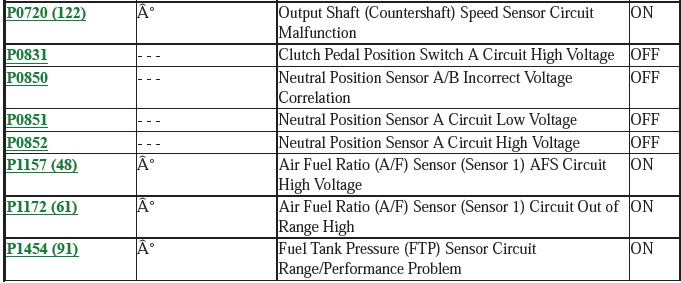

Fuel and Emissions - Testing & Troubleshooting

NOTE: The above DTCs are indicated when the PGM-FI system is selected with the HDS.Some automatic transmission DTCs cause the MIL to come on. If the MIL is on and no DTCs are indicated in the PGM-FI system, select the AT system, and check for automatic transmission DTCs.

*: These DTCs are indicated by a blinking MIL when the SCS line is jumped with the HDS. Some DTCs do not cause the MIL to blink when the SCS line is jumped; these DTCs are shown in the gauge display.

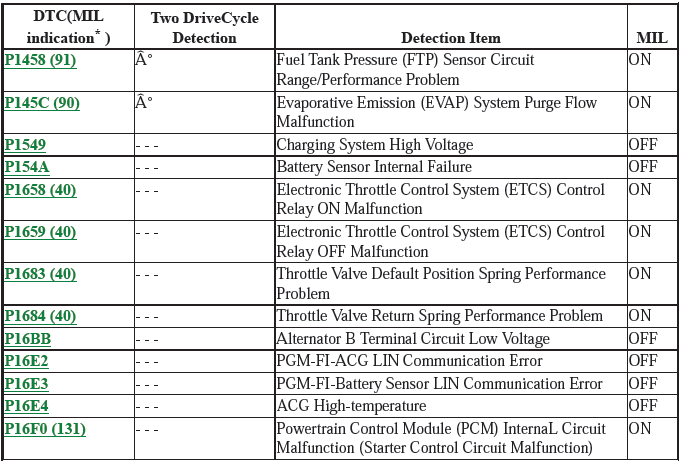

Fuel and Emissions - Testing & Troubleshooting

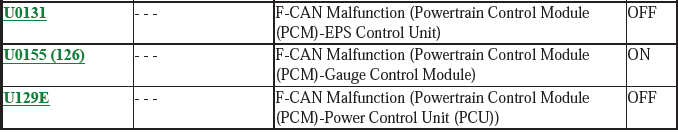

Fuel and Emissions - Testing & Troubleshooting

NOTE: The above DTCs are indicated when the PGM-FI system is selected with the HDS. Some automatic transmission DTCs cause the MIL to come on. If the MIL is on and no DTCs are indicated in the PGM-FI system, select the AT system, and check for automatic transmission DTCs.

*: These DTCs are indicated by a blinking MIL when the SCS line is jumped with the HDS. Some DTCs do not cause the MIL to blink when the SCS line is jumped; these DTCs are shown in the gauge display.

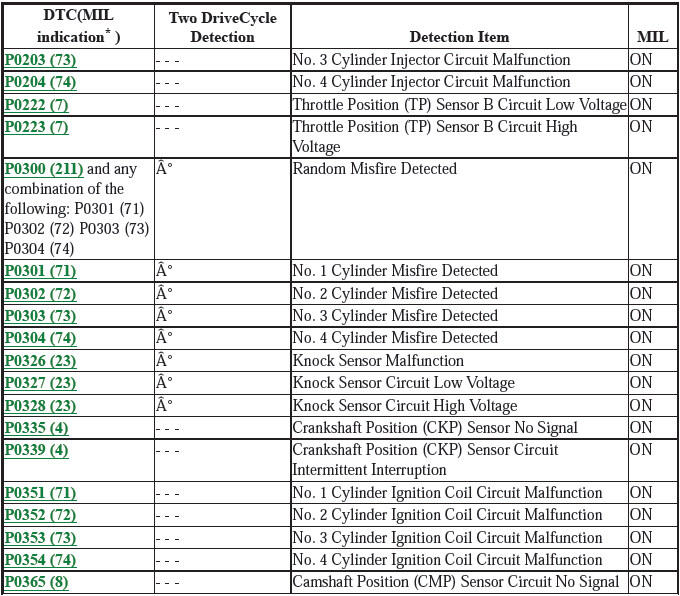

Fuel and Emissions - Testing & Troubleshooting

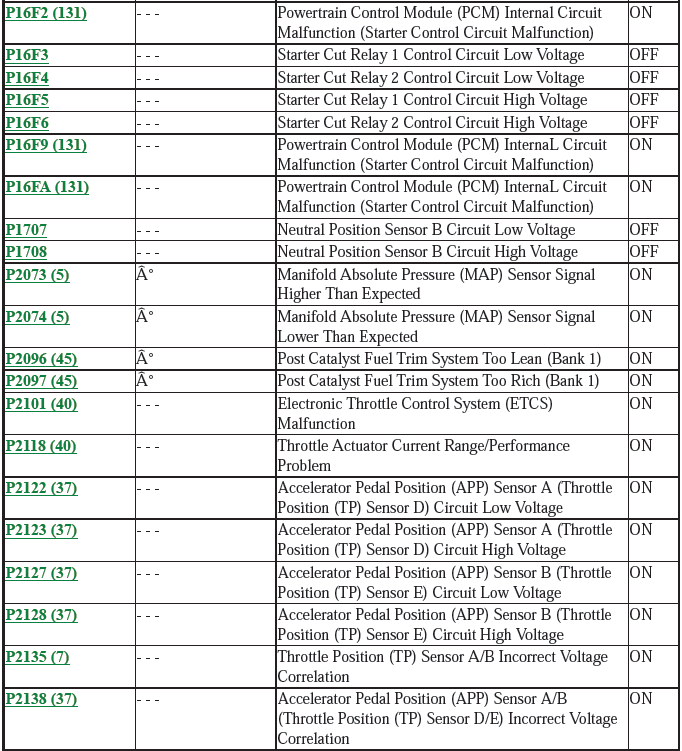

Fuel and Emissions - Testing & Troubleshooting

NOTE: The above DTCs are indicated when the PGM-FI system is selected with the HDS.Some automatic transmission DTCs cause the MIL to come on. If the MIL is on and no DTCs are indicated in the PGM-FI system, select the AT system, and check for automatic transmission DTCs.

*: These DTCs are indicated by a blinking MIL when the SCS line is jumped with the HDS. Some DTCs do not cause the MIL to blink when the SCS line is jumped; these DTCs are shown in the gauge display.

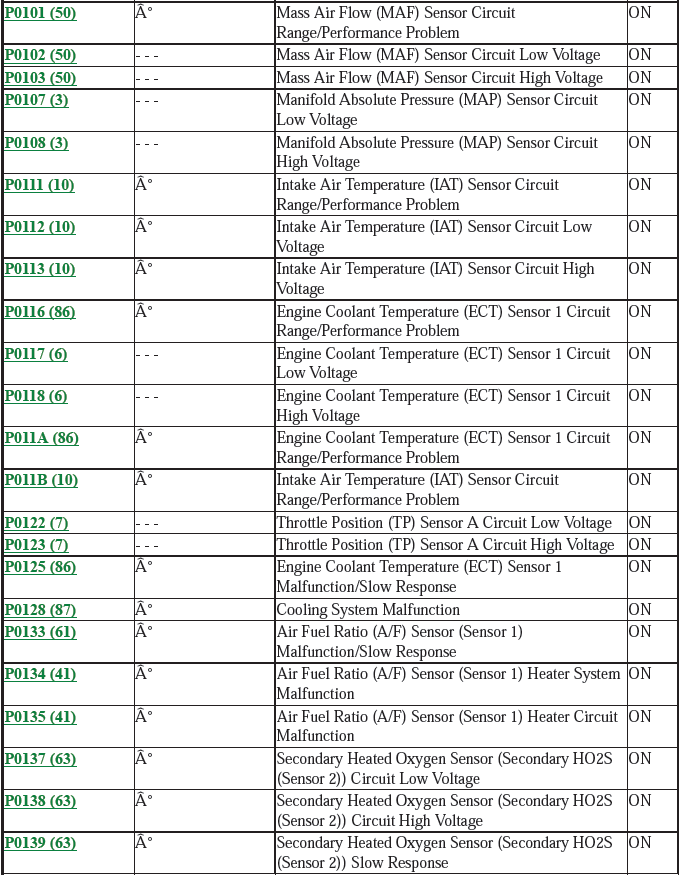

Fuel and Emissions - Testing & Troubleshooting

Fuel and Emissions - Testing & Troubleshooting

NOTE: The above DTCs are indicated when the PGM-FI system is selected with the HDS. Some automatic transmission DTCs cause the MIL to come on. If the MIL is on and no DTCs are indicated in the PGM-FI system, select the AT system, and check for automatic transmission DTCs.

*: These DTCs are indicated by a blinking MIL when the SCS line is jumped with the HDS. Some DTCs do not cause the MIL to blink when the SCS line is jumped; these DTCs are shown in the gauge display.

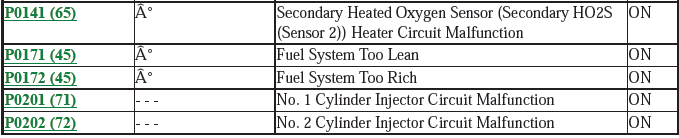

Fuel and Emissions - Testing & Troubleshooting

Fuel and Emissions - Testing & Troubleshooting

NOTE: The above DTCs are indicated when the PGM-FI system is selected with the HDS. Some automatic transmission DTCs cause the MIL to come on. If the MIL is on and no DTCs are indicated in the PGM-FI system, select the AT system, and check for automatic transmission DTCs.

*: These DTCs are indicated by a blinking MIL when the SCS line is jumped with the HDS. Some DTCs do not cause the MIL to blink when the SCS line is jumped; these DTCs are shown in the gauge display.
