Honda HR-V: DTC Troubleshooting

NETWORK COMMUNICATION DTC TROUBLESHOOTING INDEX

NOTE : Record all DTCs, and sort them by DTC type using the DTC troubleshooting index, then troubleshoot the DTC(s) in this order:

  • Internal error DTCs
  • Loss of communication DTCs
  • Signal error DTCs

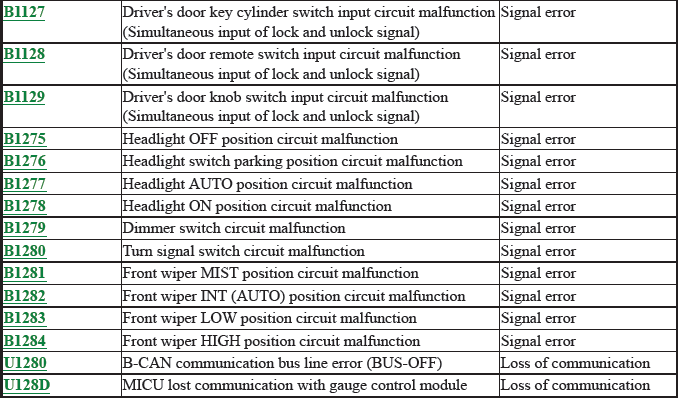

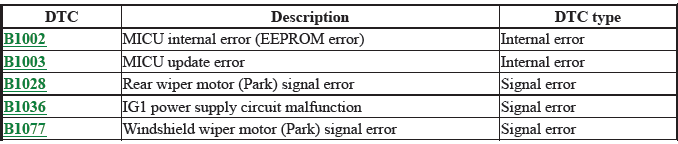

MICU

Network Communication - Testing & Troubleshooting

Network Communication - Testing & Troubleshooting

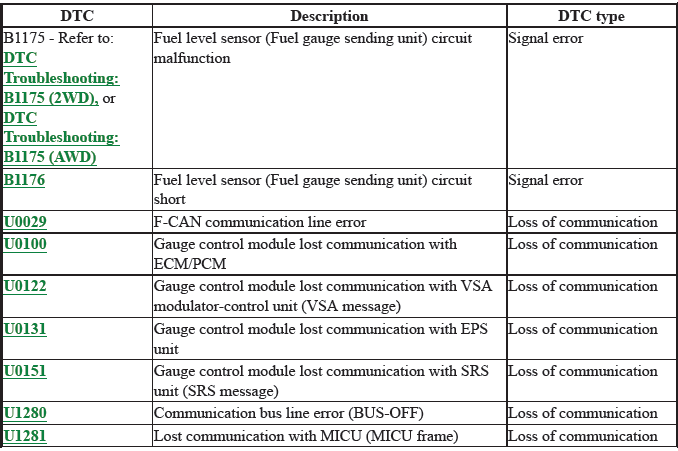

Gauge Control Module

Network Communication - Testing & Troubleshooting

Network Communication - Testing & Troubleshooting

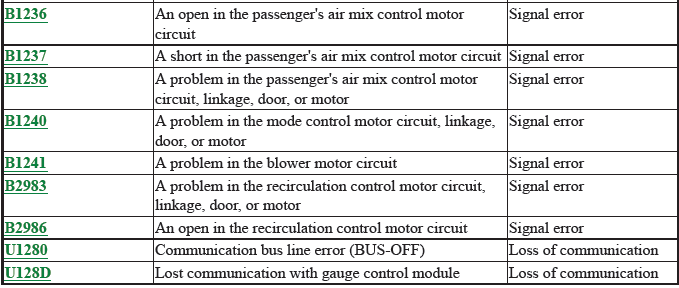

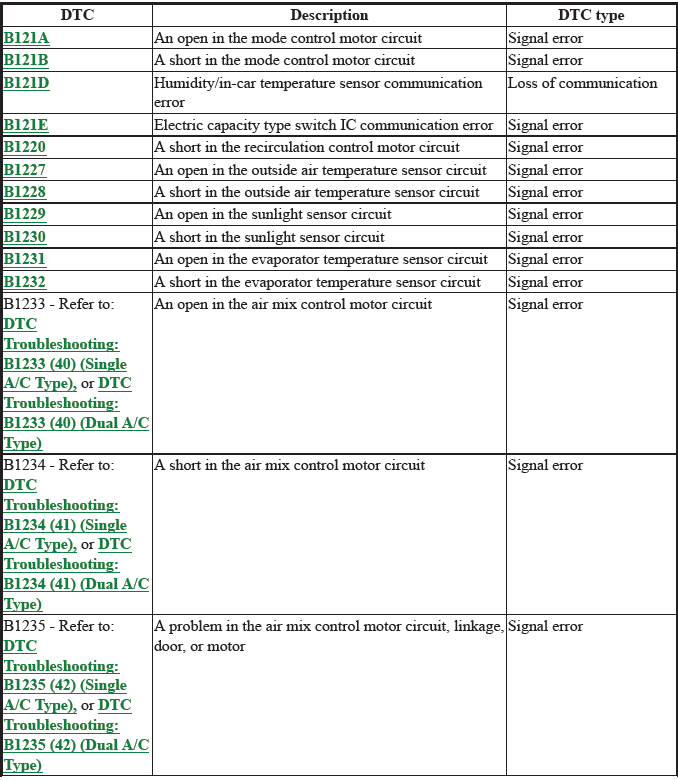

Climate Control Unit

Network Communication - Testing & Troubleshooting

Network Communication - Testing & Troubleshooting

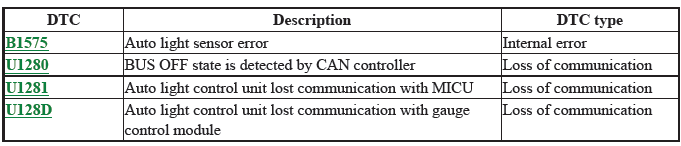

Automatic Lighting Control Unit

Network Communication - Testing & Troubleshooting

Immobilizer-Keyless Control Unit

Network Communication - Testing & Troubleshooting

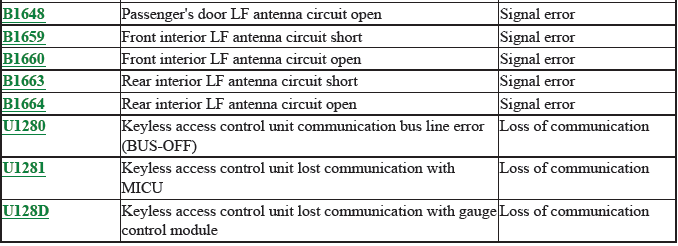

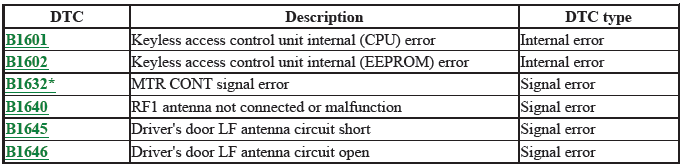

Keyless Access Control Unit

Network Communication - Testing & Troubleshooting

*: With electric steering lock

Network Communication - Testing & Troubleshooting

Network Communication - Testing & Troubleshooting

*: With electric steering lock

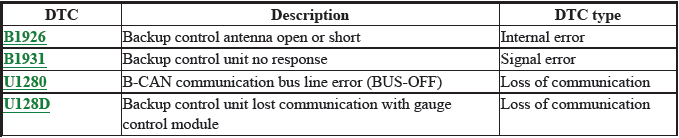

Keyless Access Backup Control Unit

Network Communication - Testing & Troubleshooting

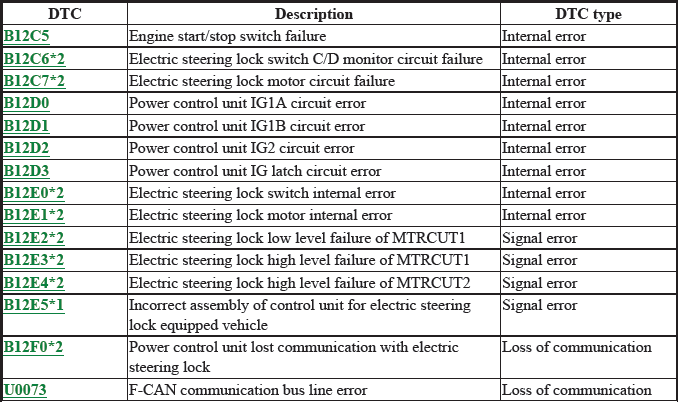

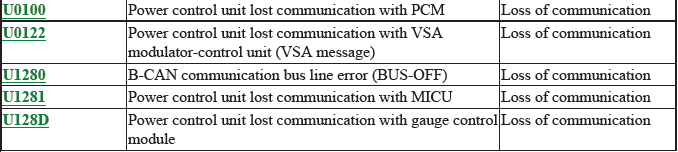

Keyless Access Power Control Unit

Network Communication - Testing & Troubleshooting

Network Communication - Testing & Troubleshooting

*1: Without steering lock
*2: With steering lock

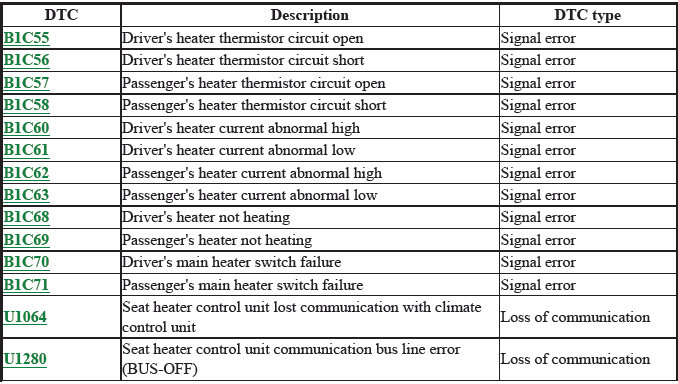

Front Seat Heater Control Unit

Network Communication - Testing & Troubleshooting
