Honda HR-V: Tailgate Outer Handle Switch Removal, Installation, and Test
Removal & Installation
1. Rear Wiper Motor - Remove
2. Rear License Trim - Remove

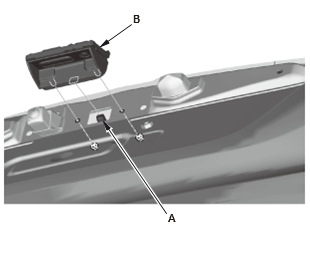

3. Tailgate Outer Handle Switch - Remove
.png)
- Disconnect the connector (A)
- Remove the tailgate outer handle switch (B).
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Test

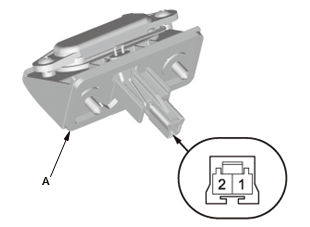

1. Tailgate Outer Handle Switch - Test
.png)
.png)
- Check for continuity between the terminals in
each switch position according to the table
- If the continuity is not as specified, replace the
tailgate outer handle switch (A).
TAILGATE OUTER HANDLE/LOCK SWITCH REMOVAL, INSTALLATION, AND TEST
Removal & Installation
1. Rear Wiper Motor - Remove
2. Rear License Trim - Remove

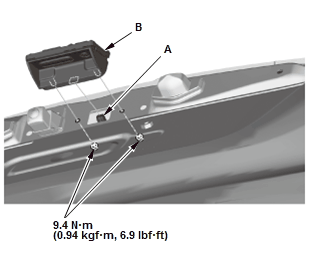

3. Tailgate Outer Handle/Lock Switch - Remove
.png)
- Disconnect the connector (A)
- Remove the tailgate outer handle/lock switch (B).
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Test

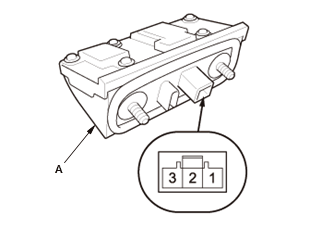

1. Tailgate Outer Handle/Lock Switch - Test
.png)
Outer Handle Switch
.png)
Lock Switch
.png)
- Check for continuity between the terminals in each
switch position according to the tables
- If the continuity is not as specified, replace the tailgate
outer handle/lock switch (A).
