Honda HR-V: DTC Troubleshooting B0079-13: Open or Increased Resistance in the Driver's
Seat Belt Outer Lap Tensioner
Special Tools Required
*SRS Inflator Simulator 07SAZ-TB4011A
*SRS Simulator Lead M 070AZ-SNA0400
*SRS Short Canceller 070AZ-SAA0100
NOTE:
- Before doing this troubleshooting procedure, find out if the vehicle was
in a collision. If so, verify
that all the required components were replaced with new components of the
correct part number,
and that they were properly installed.
- Before doing this troubleshooting procedure, review SRS Precautions and
Procedures, General
Troubleshooting Information, and 12 Volt Battery Terminal Disconnection and
Reconnection.
- Before replacing the SRS unit, check the SRS unit software version with
the HDS. If the software version
is not the latest, update the SRS unit software, and retest.
1. Problem verification:
- Clear the DTCs with the HDS.
- Turn the vehicle to the ON mode, then wait for 10 seconds.
- Check for DTCs with the HDS.
Is DTC B0079-13 indicated?
YES
The failure is duplicated. Go to step 2.
NO
Intermittent failure, the system is OK at this time. Go to Troubleshooting
Intermittent Failures. If
another DTC is indicated, troubleshoot the DTC.
2. Driver's seat belt outer lap tensioner check:
- Turn the vehicle to the OFF (LOCK) mode.
- Disconnect the negative cable from the 12 volt battery, then wait at
least 3 minutes.
- Remove the left side B-pillar lower trim - Refer to: Interior Trim
Removal and Installation - Door
Areas, or Interior Trim Removal and Installation - Tailgate Areas, or
Interior Trim Removal and
Installation - Rear Side Area, or Interior Trim Removal and Installation -
Cargo Areas, or Interior
Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or
Interior Trim
Removal and Installation - Pillar Areas (Without Side Curtain Airbag).

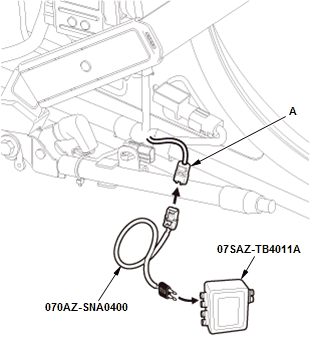

- Disconnect the driver's seat belt outer lap tensioner 2P connector (A)
on the floor wire harness.
- Connect the terminals of SRS simulator lead M to the SRS inflator
simulator (2 Ω connectors), then
connect SRS simulator lead M to the driver's seat belt outer lap tensioner
2P connector on the floor wire
harness.
- Reconnect the negative cable to the 12 volt battery.
- Clear the DTCs with the HDS.
- Turn the vehicle to the ON mode, then wait for 10 seconds.
- Check for DTCs with the HDS.
Is DTC B0079-13 indicated?
YES
Go to step 3.
NO
Open in the driver's seat belt outer lap tensioner; replace the driver's seat
belt, then clear the DTC.
3. Open wire check (LLP+, LLP- lines):
- Turn the vehicle to the OFF (LOCK) mode.
- Disconnect the negative cable from the 12 volt battery, then wait at
least 3 minutes.
- Disconnect the following connector.
SRS unit connector B (39P)
- Connect the SRS short canceller to SRS unit connector B (39P) terminals
No. 9 and No. 10.

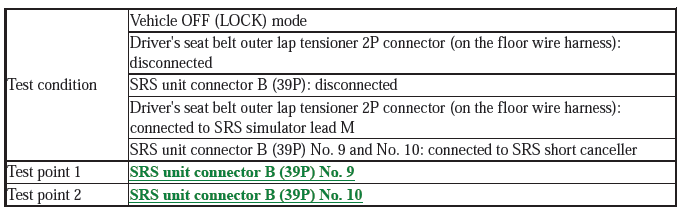

- Measure the resistance between test points 1 and 2.
Is there 2.0-3.0 Ω?
YES
The LLP+ and LLP- wires are OK. Faulty SRS unit or poor connection at SRS
unit connector B (39P)
and the SRS unit. Check the connection; if the connection is OK, replace the SRS
unit. If the DTC does
not clear, replace the floor wire harness.
NO
Open in the floor wire harness; replace the floor wire harness, then clear
the DTC.
