Honda HR-V: Engine Mechanical

COOLING SYSTEM TROUBLE SHOOTING

NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

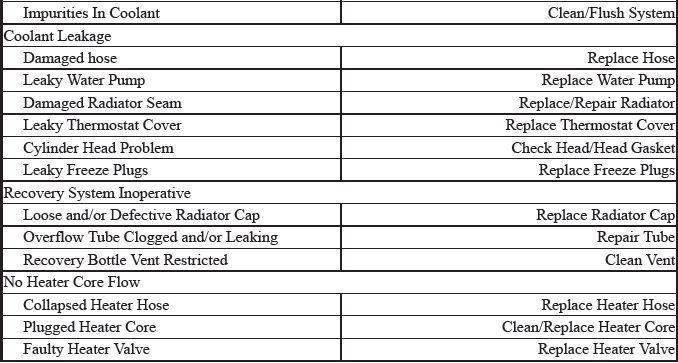

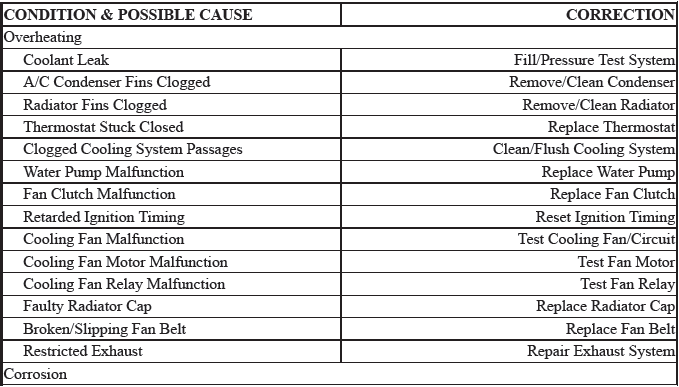

COOLING SYSTEM TROUBLE SHOOTING

Trouble Shooting - Basic Procedures

Trouble Shooting - Basic Procedures

GASOLINE ENGINE - MECHANICAL TROUBLE SHOOTING

NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

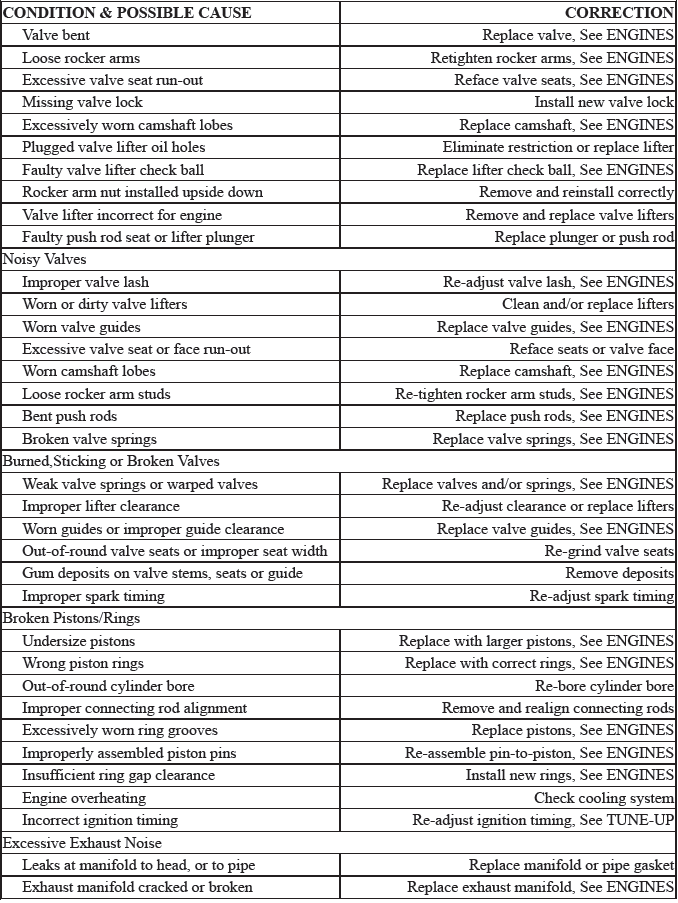

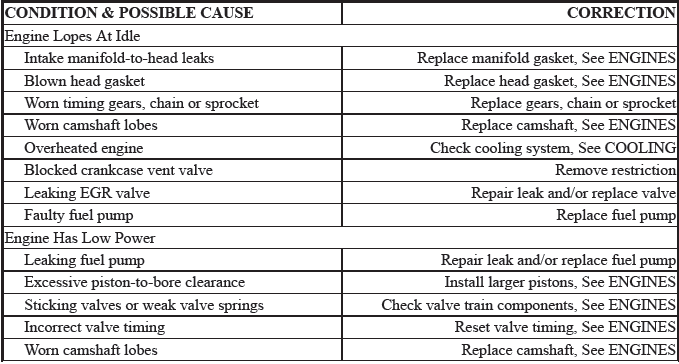

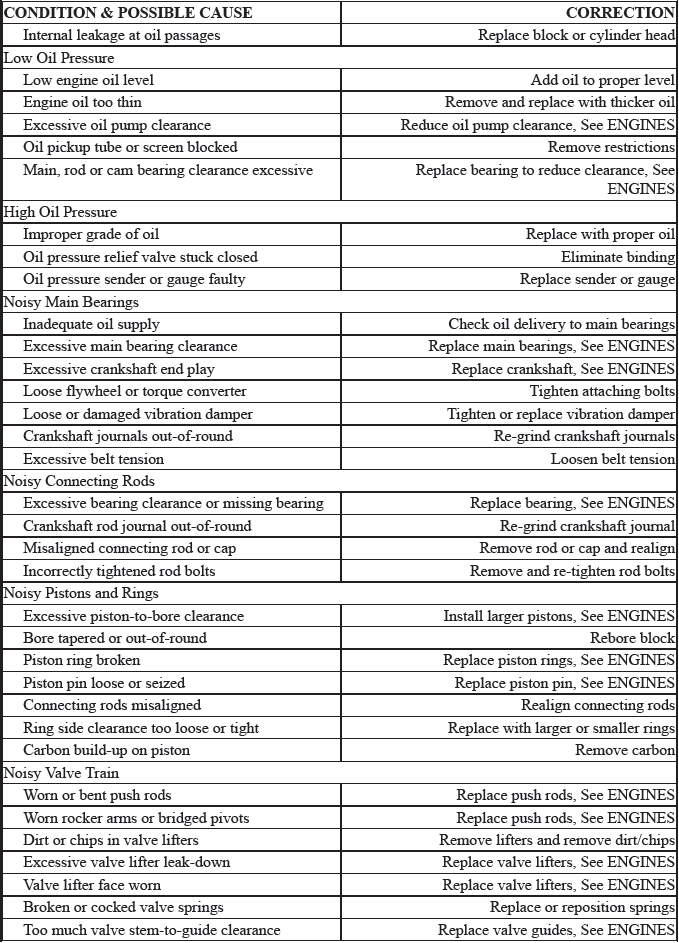

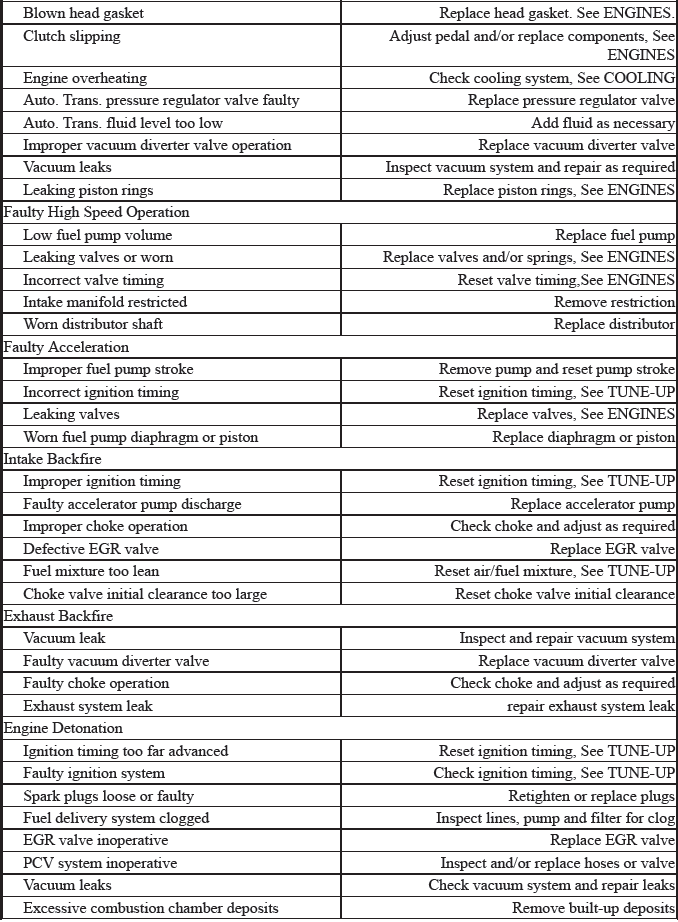

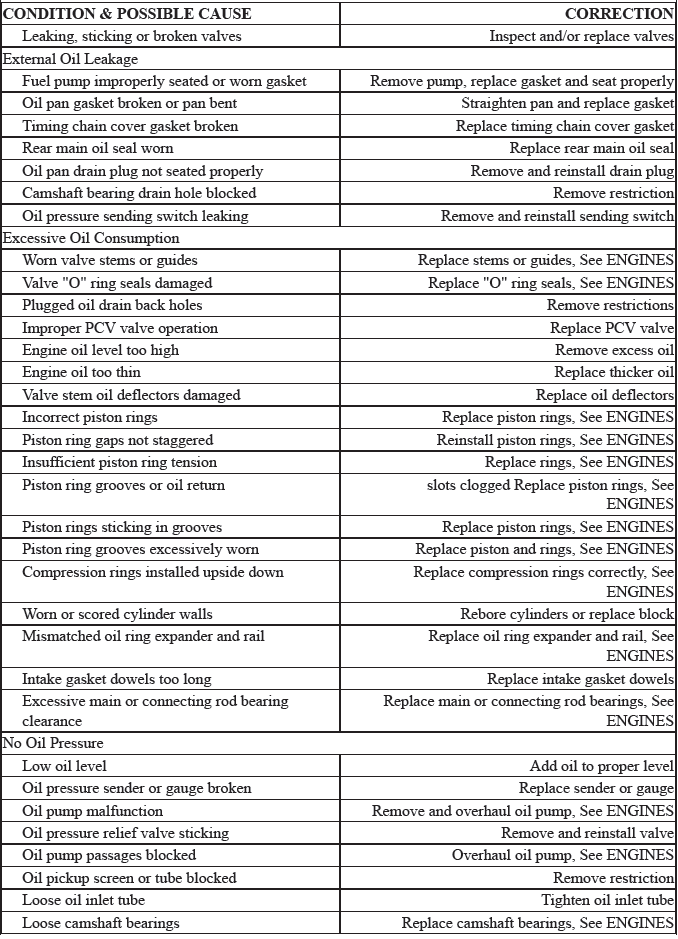

BASIC GASOLINE ENGINE - MECHANICAL TROUBLE SHOOTING CHART

Trouble Shooting - Basic Procedures

Trouble Shooting - Basic Procedures

Trouble Shooting - Basic Procedures

Trouble Shooting - Basic Procedures

Trouble Shooting - Basic Procedures
