Honda HR-V: Front Door Glass Removal and Installation
Removal & Installation
1. Front Door Panel - Remove
2. Front Door Plastic Cover - Remove
.png)

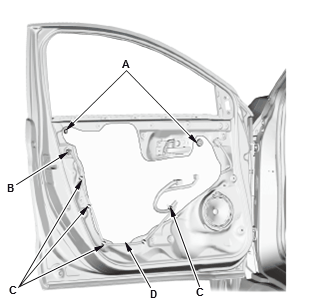

- Remove the plug caps (A)
- Disconnect the connector (B)
- Remove the harness clips (C)
- Remove the front door plastic cover (D) as needed.
NOTE : If the plastic
cover is damaged or torn, replace it with a new one.
3. Front Door Glass - Remove
.png)

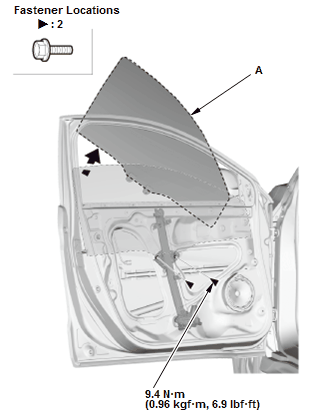

- Lower the front door glass (A) until you can see the bolts, then remove
them
- Carefully pull out the front door glass through the window slot.
NOTE :
Take care not to drop the front door glass inside the door.
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
5. Front Door Glass - Adjustment
6. Power Window Control Unit - Reset
FRONT DOOR LATCH REMOVAL AND INSTALLATION
Removal & Installation
1. Front Door Panel - Remove
2. Front Door Plastic Cover - Remove
.png)

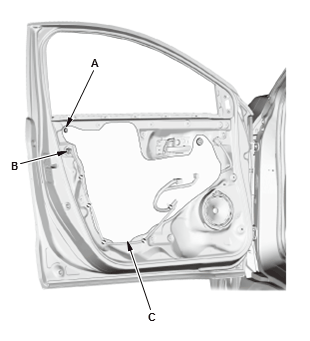

- Remove the plug cap (A)
- Disconnect the connector (B)
- Remove the front door plastic cover (C) as needed.
NOTE : If the plastic
cover is damaged or torn, replace it with a new one.
3. Front Door Inner Handle - Remove
.png)

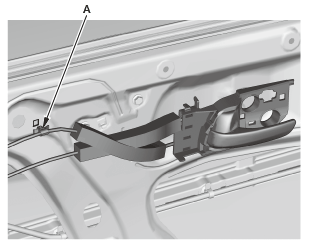

- Remove the clip (A).
.png)
- Open the front door inner handle lids (A).
.png)

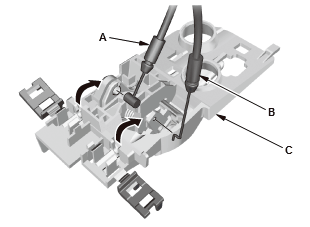

- Disconnect the inner handle cable (A) and the latch cable (B) from
the front door inner handle (C).
4. Front Door Center Lower Channel - Remove
.png)

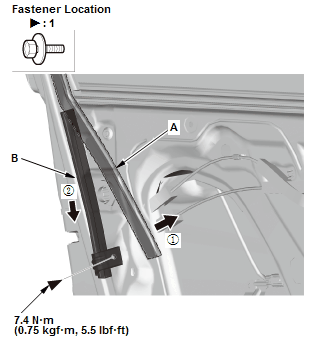

- Pull the glass run channel (A) away as needed
- Remove the front door center lower channel (B).
5. Front Door Latch - Remove
.png)
- Remove the bolts with a TORX T30 bit
- Driver's side: Pull and rotate the front door latch (A) to disconnect
the cylinder
rod (B)
- Pull the front door latch downward to disconnect the outer handle rod
(C), and
then remove the front door latch.
NOTE : Take care not to bend the cables (D).
.png)

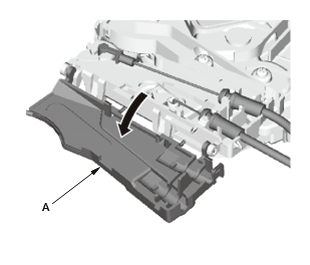

- Open the latch protector lid (A).
.png)

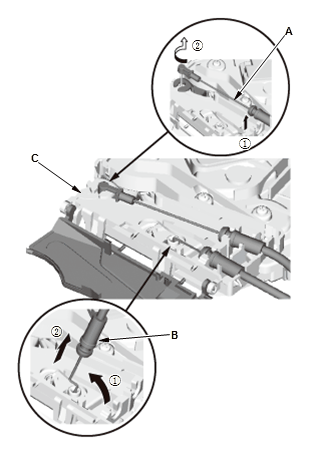

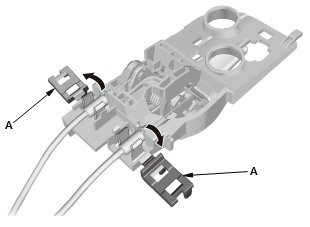

- Disconnect the inner handle cable (A) and the latch cable (B) from
the front door latch (C).
6. All Removed Parts - Install
.png)
- Install the parts in the reverse order of removal.
NOTE :
- If the cable holders of the inner handle cable and the latch cable
are
damaged or stress-whitened, replace them with new ones.

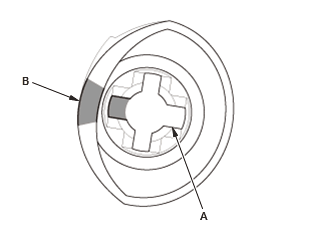

- Make sure the ditch (A) is within the range (B) as shown.
