Honda HR-V: Audio-Navigation Unit Removal and Installation

Removal & Installation

NOTE:

  • When working on electronic components, make sure the work area is clean and dust free.
  • Make sure your hands are clean and free of oils and grease.
  • Eject the disc before disconnecting the audio-navigation unit to prevent damaging the CD/DVD player's load mechanism.
  • If you are replacing the audio-navigation unit, write down the audio presets (if possible), and enter them into the new audio-navigation unit.
  • After installing the audio-navigation unit, park the vehicle outside, and do the GPS initialization.
  • When the audio-navigation unit is replaced or disconnected, do the Map Matching. This part of the initialization matches the GPS coordinates with a road on the map screen. To do this part of the procedure, make sure that the navigation system displays a map, and drive the vehicle on a mapped road shown on the map screen. Do not enter a destination at this time. When the name of the current road you are driving on appears at the bottom of the screen, the entire procedure is complete.

1. Passenger's Dashboard Panel - Remove - Refer to: Passenger's Dashboard Panel Removal and Installation, or Driver's Dashboard Panel Removal and Installation

2. Audio-Navigation Unit Assembly - Remove

Audio Visual Systems - Service Information

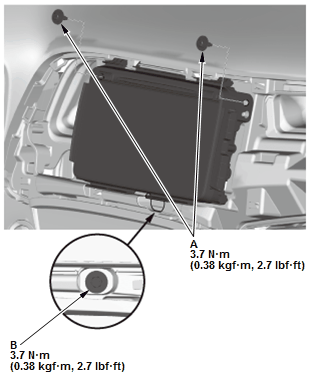

  1. Remove the bolts (A)
  2. Loosen the bolt (B).

    NOTE: Take care not to loosen the bolt excessively, you may drop it.

Audio Visual Systems - Service Information

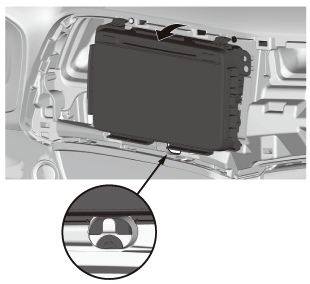

  1. Tilt the audio-navigation unit to front in the direction shown, then disengage the bracket from the bolt.

Audio Visual Systems - Service Information

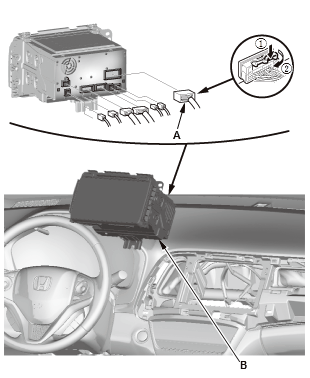

  1. Pull out the audio-navigation unit (B)
  2. Disconnect the connectors.

    NOTE: There is a lever lock on audio-navigation unit connector A

  3. Remove the audio-navigation unit.

3. Audio-Navigation Unit - Remove

Audio Visual Systems - Service Information

NOTE:

  • Discharge static electricity from your body before and during the work.
  • Do not touch the circuit board(s) with your bare hands.
  • Do not touch the terminal connector of the audio panel with your bare hands (If you have touched it, wipe it off thoroughly).

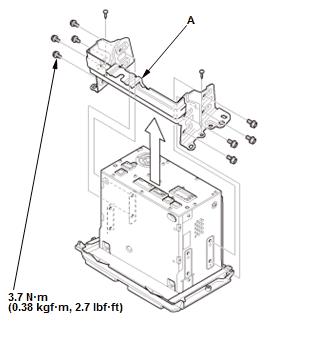

1. Remove the bracket (A).

Audio Visual Systems - Service Information

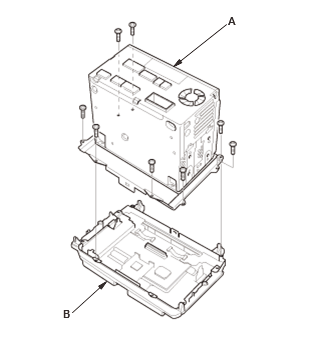

  1. Remove the audio-navigation unit (A) from the audio-navigation panel (B).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

    NOTE:

    • After Installation, do the System Links in the System Diagnostic Mode to confirm that there are no problems in the system, then park the vehicle outside, and do the GPS initialization.
    • If you are replacing the audio-navigation unit or the display panel, do the Touch Panel Check and the Touch Panel Adjustment in the System Diagnostic Mode to check whether the touch panel operates properly.
