Honda HR-V: Front Seat Frame Removal and Installation
Removal & Installation
NOTE : SRS components are located in this area. Review the SRS component
locations - Refer to: SRS
Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and
the precautions
and procedures before doing repairs or service.
1. Front Seat - Remove
2. Front Seat Recline Cover - Remove
3. Front Seat-Back Cover/Pad - Remove
4. Front Seat Cushion Cover/Pad - Remove
5. Front Seat Belt Buckle - Remove

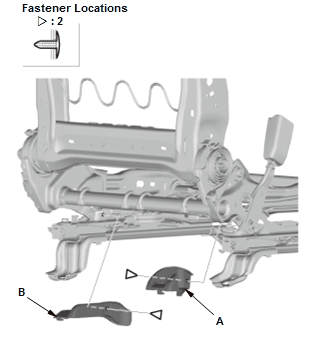

6 Front Seat Upper Rail Cover - Remove
.png)
- Remove the upper rail inner cover (A) and upper rail outer
cover (B).

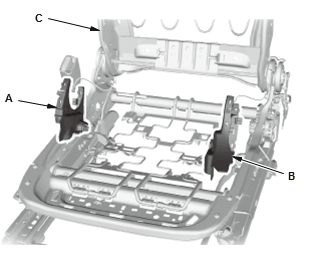

7. Front Seat Recline Cover - Remove
.png)
- Remove the recline inner cover (A) and recline outer cover (B)
from the seat back frame (C).

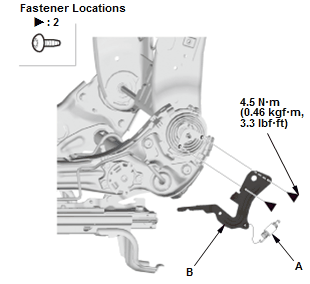

8. Front Seat Recline Lever - Remove
.png)
- Remove the spring (A)
- Remove the bolts with a TORX T25 bit, then remove the front
seat recline lever (B).

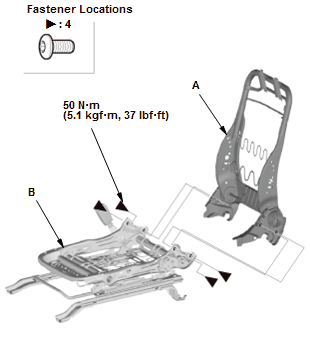

9. Seat Cushion Frame/Seat Back Frame - Remove
.png)
Fig. 1: Seat Frame/Back Fasteners With Torque Specifications
- Remove the bolts with a TORX T50 bit, then remove the seat back frame
(A) from the seat cushion
frame (B).

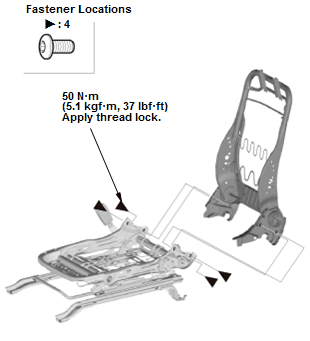

10.All Removed Parts - Install
.png)
Fig. 2: Seat Frame/Back Fasteners With Torque Specifications
- Install the parts in the reverse order of removal.
NOTE : Apply medium strength liquid thread lock to the threads of the bolts
before reinstallation.
FRONT SEAT HEATER CONTROL UNIT REMOVAL AND INSTALLATION
Removal & Installation
1. Climate Control Unit - Remove

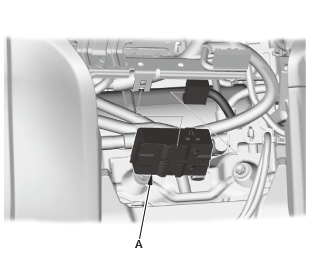

2. Front Seat Heater Control Unit - Remove
.png)
- Remove the front seat heater control unit (A)
- Disconnect the connector.
3. All Removed Parts - Install
