Honda HR-V: Rear Seat Armrest Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Seats - Service Information / Rear Seat Armrest Removal and Installation

Removal & Installation

1. Rear Seat Armrest - Remove

Seats - Service Information

  1. Fold down the right rear seat-back

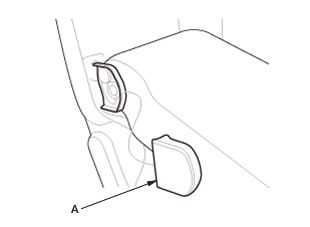

  2. Remove the rear seat armrest trim (A).

Seats - Service Information

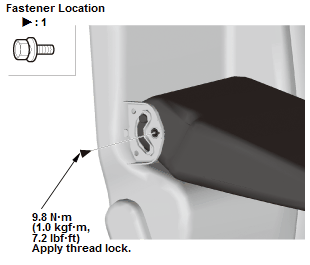

  1. Remove the bolt.

Seats - Service Information

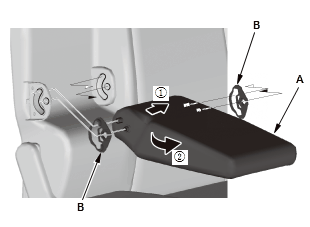

  1. Remove the rear seat armrest (A)
  2. If necessary, remove the bushings (B).

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

REAR SEAT FOOT GUIDE REMOVAL AND INSTALLATION

Removal & Installation

1. Rear Seat Foot Guide Cover - Remove

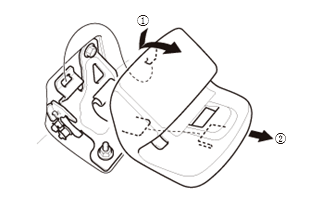

Seats - Service Information

2. Rear Seat Foot Guide - Remove

Seats - Service Information

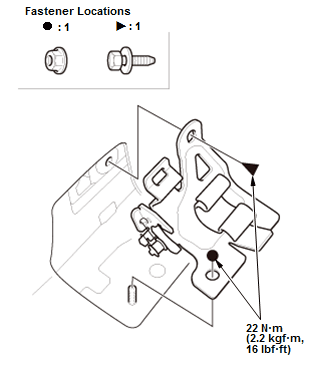

Fig. 5: Rear Seat Foot Torque Specifications

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
