Honda HR-V: Front Seat Recline Cover Removal and Installation
Removal & Installation
1. Front Seat - Remove
2. Front Seat Recline Inner Cover - Remove
.png)

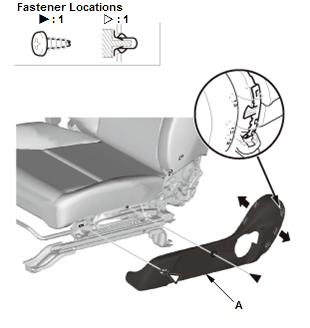

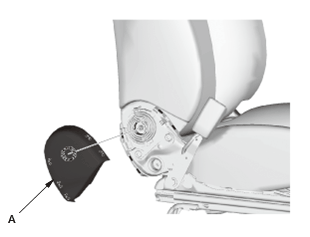

- Remove the front seat recline inner cover (A).
3. Front Seat Recline Outer Cover - Remove
.png)

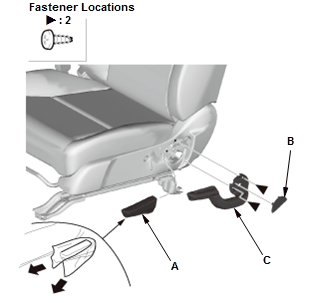

- Remove the front seat recline nob (A)
- Remove the cover (B)
- Remove the screws, then remove the height adjuster
handle (C).
.png)
- Remove the front seat recline outer cover (A).
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
FRONT SEAT REMOVAL AND INSTALLATION
Removal & Installation
NOTE : SRS components are located in this area. Review the SRS component
locations - Refer to: SRS
Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and
the precautions
and procedures before doing repairs or service.
1. 12 Volt Battery Terminal - Disconnect
NOTE : Wait at least 3 minutes before starting work.

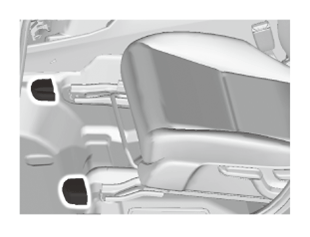

2. Front Seat Front Foot Covers - Remove
.png)

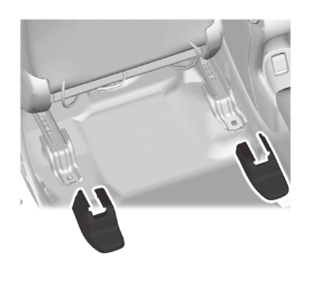

3. Front Seat Rear Foot Covers - Remove
.png)
4. Front Seat Mounting Bolts - Remove
Rear side
.png)

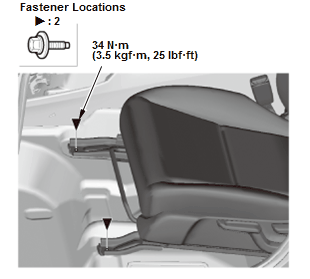

Fig. 3: Front Seat Mounting Bolt Torque Specifications
Front side

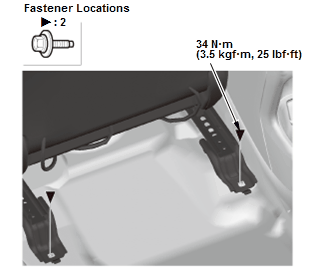

.png)
Fig. 4: Front Seat Mounting Bolt Torque Specifications
5. Front Seat - Remove
Driver's seat (with SPS) KA
KC models
.png)
Driver's seat (without SPS)
KX models
.png)
Passenger's side (with SWS)
KA KC models
.png)
Passenger's side (without
SWS) KX models
.png)

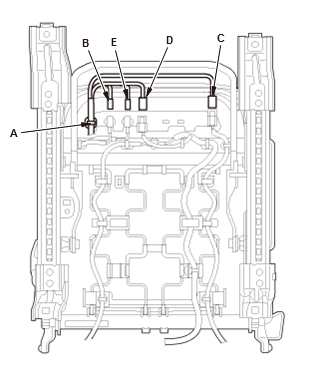

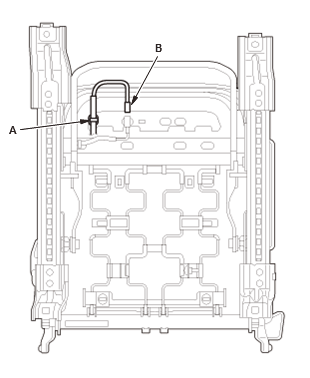

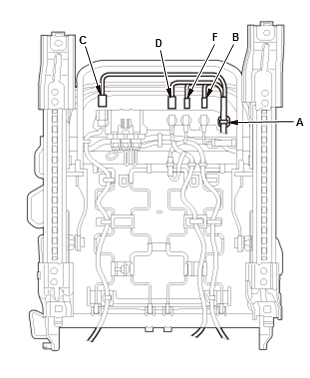

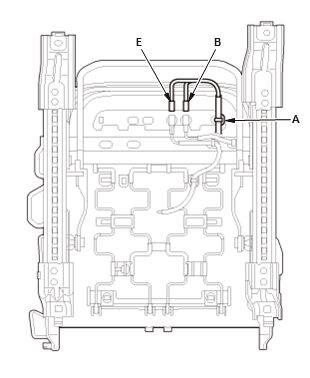

- From under the seat cushion, remove the harness clip (A)
- Disconnect the connector (B)
- Disconnect the connector (C). (with side airbag)
- Disconnect the
connector (D). (with seat heater)
- Disconnect the connector (E). (with
seat position sensor)
- Disconnect the connector (F). (with weight
sensor)
- Remove the front seat.
6. All Removed Parts - Install
.png)
- Install the parts in the reverse order of removal.
NOTE :
- Tighten the front seat mounting bolts by hand first, then tighten
them to the
specified torque.

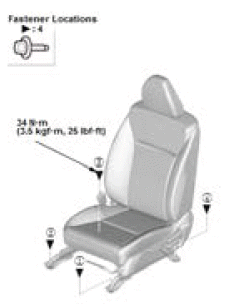

- Tighten the front seat mounting bolts to the specified torque in the
sequence
shown. Slide the front seat all the way back and tighten 1 and 2, then
slide it
forward and tighten 3 and 4.
