Honda HR-V: Handsfreelink System Self-Diagnostic Function
NOTE:
- Check the vehicle 12 volt battery condition first.
- The self-diagnostic function can only be initiated while the HFL is in
its idle state.
1. Turn the vehicle to the ACCESSORY mode

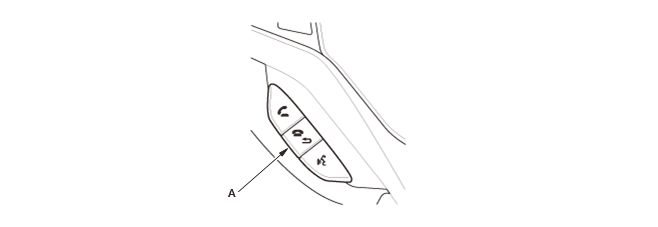

2. Press and hold the HANG-UP/BACK button (A) for more than 5 seconds.
.png)
3. When the HFL system enters the self-diagnostic function, the following
will occurs:
- If the HFL system is OK, the front speaker outputs "The HFT is OK."
- If the Bluetooth module power is not supplied, the front speaker outputs
"The HFT is NG". Replace the audio unit - Refer to: Audio Unit Removal and
Installation (Display Audio Type (7-inch Screen) ), or Audio Unit Removal
and Installation (Color Audio Type (5-inch Screen) ) or audio-navigation
unit.
- If the HFL system does not respond, go to HFL does not respond
troubleshooting - Refer to: HandsFreeLink System Symptom Troubleshooting -
HFL does not respond
(With Navigation), or HandsFreeLink System Symptom Troubleshooting - HFL
does not respond (Without Navigation, Display Audio Type (7-inch Screen) ),
or
HandsFreeLink System Symptom Troubleshooting - HFL does not respond (Without
Navigation, Color Audio Type (5-inch Screen) ).
