Honda HR-V: Headliner Removal and Installation

Removal & Installation

NOTE : SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. 12 Volt Battery Terminal - Disconnect

NOTE : Wait at least 3 minutes before starting work.

2. Both Pillar Trims - Remove

  1. Remove these items:
    • A-pillar trims (both sides) - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)
    • B-pillar upper/lower trims (both sides) - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)
    • Quarter pillar trims (both sides) - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

3. Both Sunvisors and Sunvisor Holders - Remove

4. Grab Handles - Remove

5. Ceiling Light - Remove

6. Front Individual Map Light - Remove

7. HFL Microphone - Remove (For Some Models)

8. Roof Module Trim Panel - Remove (For Some Models)

Interior Trim - Service Information

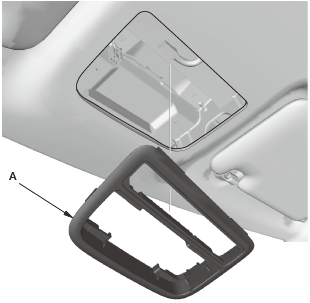

  1. If necessary, remove the roof module trim panel (A).

9. Headliner - Remove

Driver's side (Without moonroof only)

Interior Trim - Service Information

Passenger's side

Interior Trim - Service Information

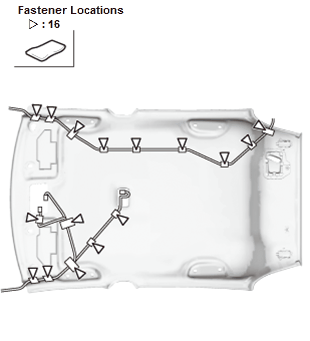

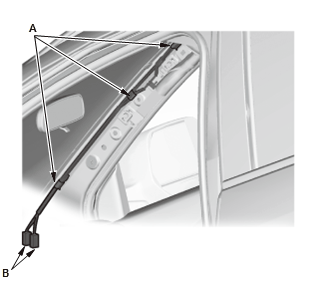

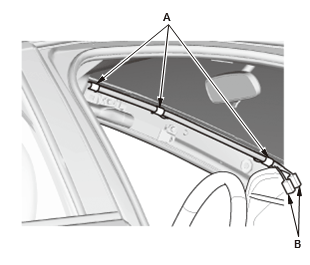

  1. From the A-pillar, remove the harness clips (A)
  2. From the A-pillar, disconnect the connectors (B). (for some models)

Interior Trim - Service Information

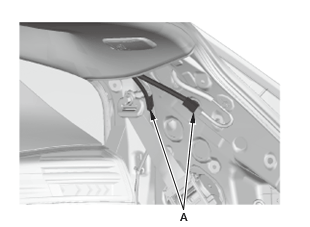

  1. From the rear side panel, disconnect the connectors (A). (for some models)

Without moonroof

Interior Trim - Service Information

With moonroof

Interior Trim - Service Information

  1. Fold down the rear seat-back to the front side
  2. Slide the front seat all the way back, and recline the seat-back fully

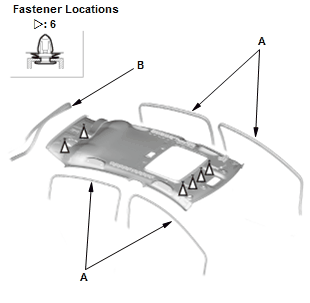

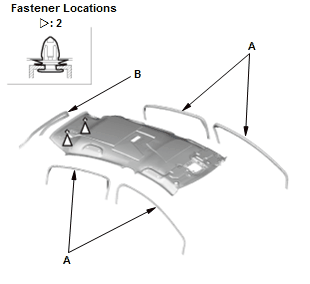

  3. Remove the door opening seals (A) and the tailgate weatherstrip (B) as needed.

Interior Trim - Service Information

  1. With the help of an assistant, remove the headliner (A) through the tailgate opening.

    NOTE : Do not bend the headliner. Bending the headliner will crease and damage it.

Without moonroof

Interior Trim - Service Information

With moonroof

Interior Trim - Service Information

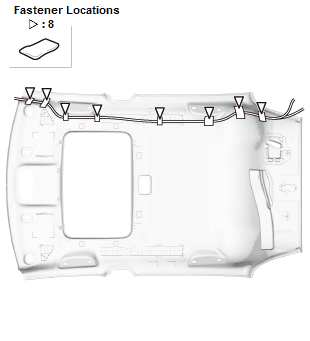

  1. If necessary, remove the cushion tapes.

    NOTE : The positions and number of tapes change with models.

Interior Trim - Service Information

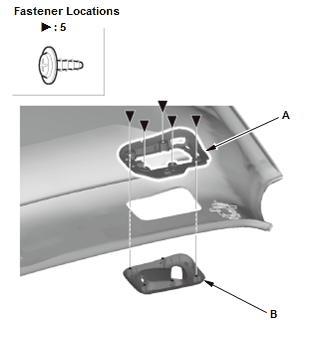

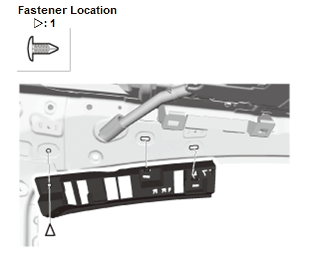

  1. If necessary, remove the retractor cover (A) and the retractor bracket (B).

Interior Trim - Service Information

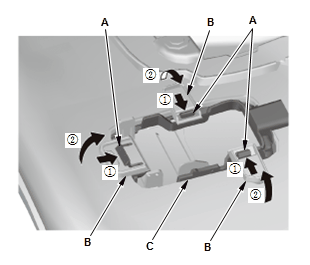

  1. If necessary, release the hooks (A), and then raise the tabs (B).

    Remove the child anchor cap (C).

10.Roof Side Pad - Remove (without side curtain airbag)

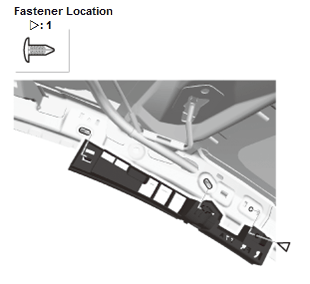

Front

Interior Trim - Service Information

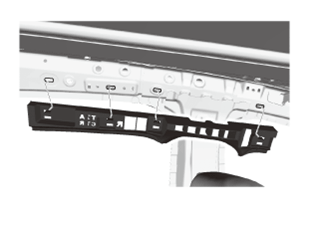

Center

Interior Trim - Service Information

Rear

Interior Trim - Service Information

11.Headliner - Check

Without moonroof

Interior Trim - Service Information

With moonroof

Interior Trim - Service Information

  1. If the side curtain airbag has deployed, replace the headliner, along with the other parts listed for side curtain airbag deployment
  2. To prevent the side curtain airbags from deploying improperly and possibly causing injury, inspect the headliner and all removed trim.

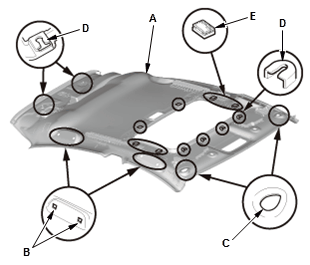

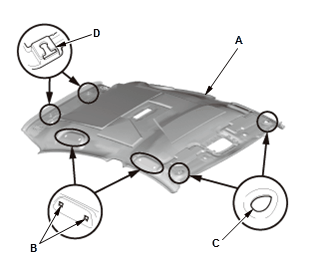

    Replace any pieces with the following damage:

    • Any creases or tears in the headliner (A)
    • Any damages around the grab handle holes (B) or the sunvisor holes (C) in the headliner
    • Any the clip bases (D) and fastener bases (E) (with moonroof) which have come off the headliner.

12.All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

13.Headliner/Pillar Trim Overlap - Check
