Honda HR-V: Interior Trim Removal and Installation - Door Areas

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Interior Trim - Service Information / Interior Trim Removal and Installation - Door Areas

Removal & Installation

Front Door Opening Seal

1. Front Door Opening Seal - Remove

Interior Trim - Service Information

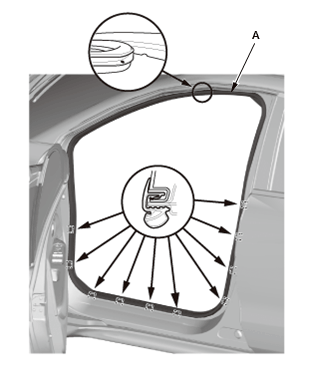

  1. Remove the front door opening seal (A).

2. All Removed Parts - Install

Interior Trim - Service Information

  1. Install the parts reverse order of removal.

    NOTE : Align the painted mark (A) of the front door opening seal (B) with the notch (C) on the body, then push the front door opening seal against the body.

Front Door Sill Trim / Kick Panel

3. Front Door Sill Trim - Remove

Interior Trim - Service Information

  1. Pull out the door opening seal (A) as needed

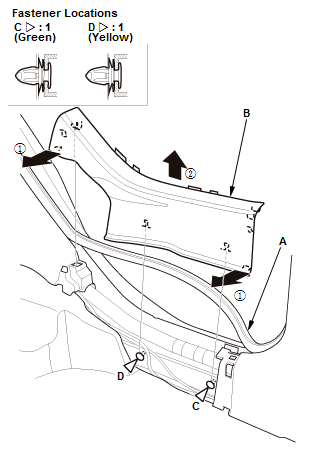

  2. Remove the front door sill trim (B).

    NOTE : The clip will stay in the body.

4. Kick Panel - Remove

Driver's side

Interior Trim - Service Information

Passenger's side

Interior Trim - Service Information

  1. Pull out the door opening seal (A) as needed

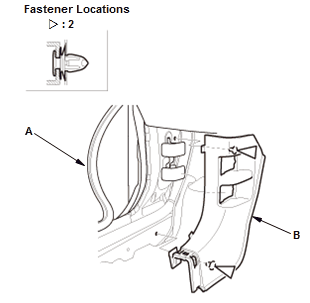

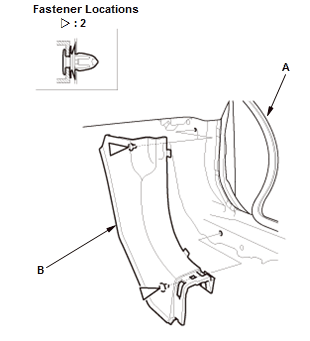

  2. Remove the kick panel (B).

5. All Removed Parts - Install

Interior Trim - Service Information

  1. Install the parts reverse order of removal.

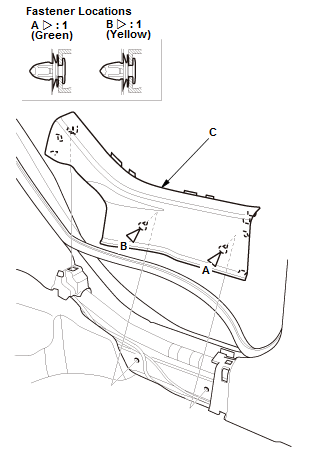

    NOTE : Install the clip on the front door sill trim (A) before installation.

Rear Door Opening Seal

6. Rear Door Opening Seal - Remove

Interior Trim - Service Information

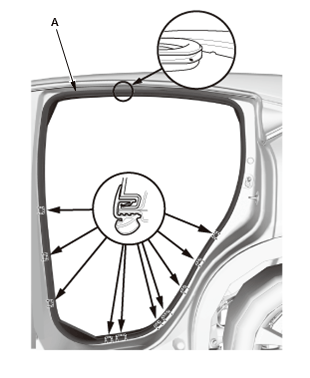

  1. Remove the rear door opening seal (A).

7. All Removed Parts - Install

Interior Trim - Service Information

  1. Install the parts reverse order of removal.

    NOTE : Align the painted mark (A) of the rear door opening seal (B) with the notch (C) on the body, then push the rear door opening seal against the body.

Rear Door Sill Trim

8. Rear Door Sill Trim - Remove

Interior Trim - Service Information

  1. Raise the rear seat cushion
  2. Pull out the door opening seal (A) as needed

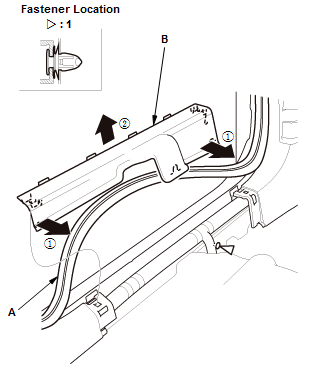

  3. Remove the rear door sill trim (B).

    NOTE : The clips (C, D) will stay in the body.

9. All Removed Parts - Install

Interior Trim - Service Information

  1. Install the parts reverse order of removal.

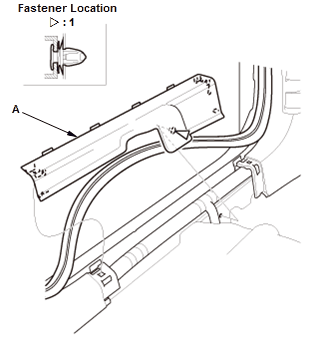

    NOTE : Install the clips (A, B) on the rear door sill trim (C) before installation.
