Honda HR-V: Horn Removal, Installation, and Test

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Exterior Trim - Service Information / Horn Removal, Installation, and Test

Removal & Installation

1. Front Bumper - Remove

2. Horn - Remove

Exterior Trim - Service Information

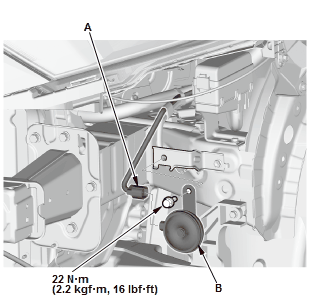

Fig. 2: (High) Horn Bracket Torque Specifications

Exterior Trim - Service Information

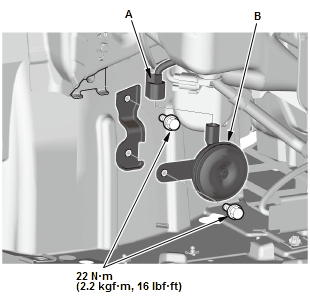

Fig. 3: (Low) Horn Bracket Torque Specifications

Horn (High)

  1. Disconnect the connector (A)

Horn (Low)

  1. Remove the horn (B).

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

Test

1. Horn - Test

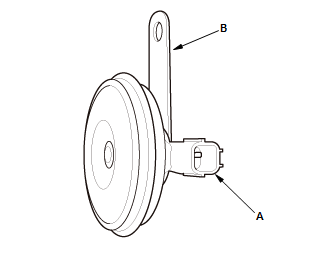

Horn (High)

Exterior Trim - Service Information

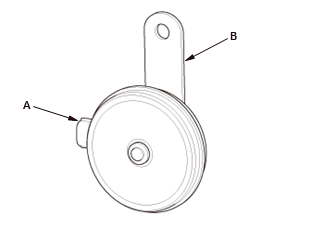

Horn (Low)

Exterior Trim - Service Information

  1. Test the horn by momentarily connecting 12 volt battery power to the terminal (A) and grounding the bracket (B). The horn should sound
  2. If it fails to sound, replace the horn.
