Honda HR-V: Interior Trim Removal and Installation - Rear Side Area

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Interior Trim - Service Information / Interior Trim Removal and Installation - Rear Side Area

Removal & Installation

Rear Side Trim Panel

1. Tonneau Cover - Remove (For Some Models) - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

2. Rear Trim Panel - Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

3. Cargo Area Light - Remove (For Some Models)

4. Rear Door Sill Trim - Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

5. Rear Side Trim Panel - Remove

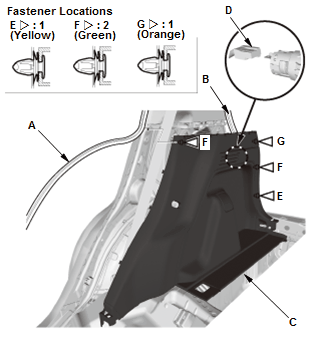

Left side

Interior Trim - Service Information

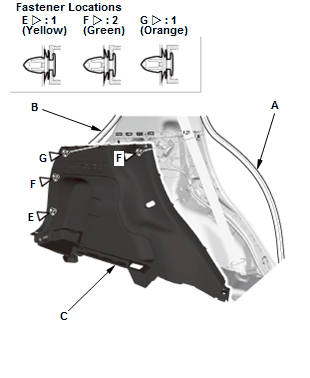

Right side

Interior Trim - Service Information

  1. Remove the rear door opening seal (A) and tailgate weatherstrip (B) as needed
  2. Remove the rear side trim panel (C)
  3. Disconnect the connector (D). (for some models)

6. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
