Honda HR-V: Climate Control Unit Removal and Installation

Honda HR-V (2015-2021) Service Manual / HVAC / HVAC System - Service Information / Climate Control Unit Removal and Installation

Removal & Installation

1. Switch Panel - Remove

2. Glove Box - Remove

3. Climate Control Unit - Remove

HVAC System - Service Information

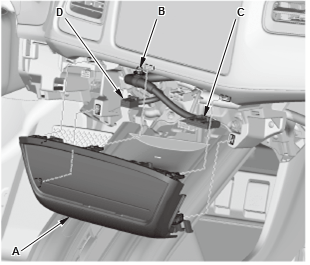

  1. Pull the climate control unit (A)
  2. Remove the clip (B)
  3. Disconnect the connector (C)
  4. Disconnect the connector (D) (Dual A/C type).

HVAC System - Service Information

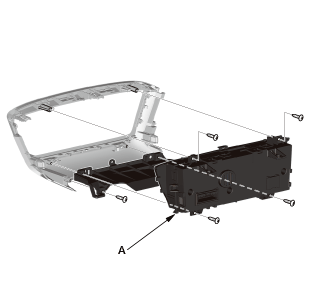

  1. Remove the climate control unit (A).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

    NOTE: After Install run the self-diagnostic function to confirm that there are no problems in the system.

DUST AND POLLEN FILTER REMOVAL AND INSTALLATION

Removal & Installation

1. Dust and Pollen Filter - Remove

HVAC System - Service Information

  1. Turn the vehicle to the OFF (LOCK) mode

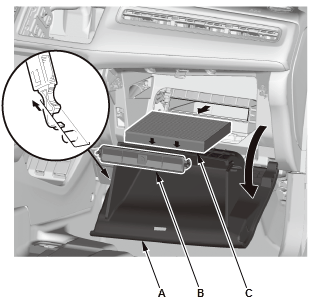

  2. Lower the glove box (A)
  3. Remove the lid (B), then remove the filter (C).

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

    NOTE: Make sure there is no air leaking out of the blower unit.

3. Maintenance Minder - Reset (With Maintenance Minder System)

  1. If the Maintenance Minder required to replace the dust and pollen filter, reset the Maintenance Minder with the gauge. If the Maintenance Minder did not require to replace the dust and pollen filter, reset the Maintenance Minder with the HDS.
