Honda HR-V: Passenger's Dashboard Panel Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Interior Trim - Service Information / Passenger's Dashboard Panel Removal and Installation

Removal & Installation

1. Passenger's Dashboard Panel - Remove

Interior Trim - Service Information

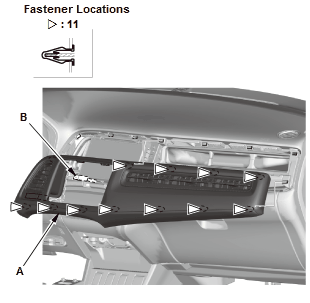

  1. Remove the passenger's dashboard panel (A)
  2. Disconnect the connector (B).

2. Passenger's Dashboard Vent- Remove

Interior Trim - Service Information

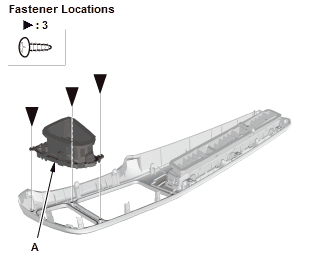

  1. If necessary, remove the passenger's dashboard vent (A).

3. Center Dashboard Vent - Remove

Interior Trim - Service Information

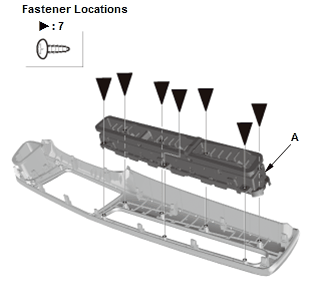

  1. If necessary, remove the center dashboard vent (A).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

PASSENGER'S DASHBOARD UNDERCOVER REMOVAL AND INSTALLATION

Removal & Installation

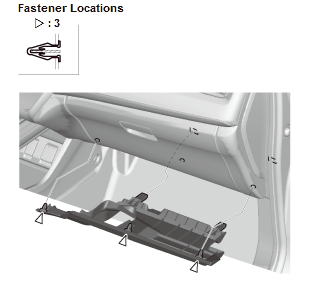

1. Passenger's Dashboard Undercover - Remove

Interior Trim - Service Information

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
