Honda HR-V: Navigation System Symptom Troubleshooting - Rearview Camera Image Does Not Change When Selecting Different Views

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Audio Visual Systems - Testing & Troubleshooting / Symptom Troubleshooting / Navigation System Symptom Troubleshooting - Rearview Camera Image Does Not Change When Selecting Different Views

NOTE:

  • Check the vehicle 12 volt battery condition first.
  • You can select three different rearview camera angles for backing up. If there is no camera image on the display, go to Rearview camera image does not come on or work properly troubleshooting - Refer to: Navigation System Symptom Troubleshooting - Voice control does not work/respond, or Navigation System Symptom Troubleshooting - Audio-navigation unit power will not turn on (No information display on touch screen), or Navigation System Symptom Troubleshooting - Vehicle position icon wanders across the map when driving (does not follow a displayed road) or map vehicle ICON spins, or Navigation System Symptom Troubleshooting - Rearview camera image does not come on or work properly, or Navigation System Symptom Troubleshooting - Audio-navigation unit illumination does not work, or Navigation System Symptom Troubleshooting - Rearview camera image does not change when selecting different views.
  • Check the connectors for poor connections or loose terminals.

1. Problem verification:

  1. Turn the vehicle to the ON mode.
  2. Shift the transmission to R position/mode.
  3. Operate the audio-navigation unit to see if the rearview image changes between the wide view, the normal view, and the top down view in this order.

Does the rearview camera image change properly?

YES

Intermittent failure, the system is OK at this time.

NO

The failure is duplicated, go to step 2.

2. Shorted wire check (CAMERA BIT0, CAMERA BIT1 lines):

  1. Shift the transmission to P position/mode or N position/mode.
  2. Turn the vehicle to the OFF (LOCK) mode.
  3. Disconnect the following connectors.

Audio-navigation unit connector C (24P)

Rearview camera 8P connector

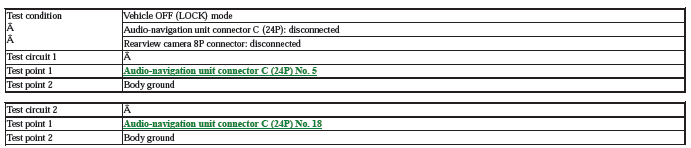

  1. Check for continuity between test points 1 and 2.

Audio Visual Systems - Testing & Troubleshooting

Is there continuity?

YES

Repair a short to body ground in the wire (s) between the audio-navigation unit and the rearview camera.

NO

The CAMERA BIT0 wire and CAMERA BIT1 wire are not shorted. Go to step 3.

3. Shorted wire check (CAMERA BIT0 line to CAMERA BIT1 line).

Check for continuity between test points 1 and 2.

Audio Visual Systems - Testing & Troubleshooting

Is there continuity?

YES

Repair a short in the wires between the audio-navigation unit and the rearview camera.

NO

The CAMERA BIT0 wire to CAMERA BIT1 wire are not shorted. Go to step 4.

4. Open wire check (CAMERA BIT0, CAMERA BIT1 lines).

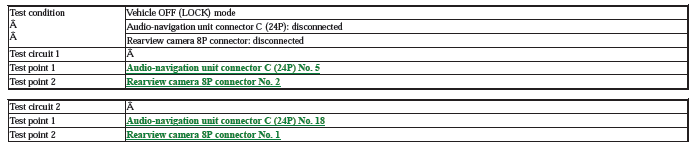

Check for continuity between test points 1 and 2.

Audio Visual Systems - Testing & Troubleshooting

Is there continuity?

YES

The CAMERA BIT0 wire and CAMERA BIT1 wire are OK. Go to step 5.

NO

Repair an open in the wire (s) between the audio-navigation unit and the rearview camera.

5. Audio-navigation unit check 1 (CAMERA BIT0 line):

  1. Reconnect the following connectors.

Audio-navigation unit connector C (24P)

Rearview camera 8P connector

  1. Turn the vehicle to the ON mode.
  2. Shift the transmission to R position/mode.

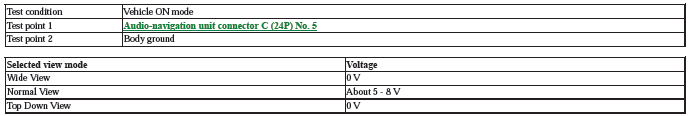

  3. Measure the voltage between test points 1 and 2 as specified in the table.

Audio Visual Systems - Testing & Troubleshooting

Is the voltage OK?

YES

Go to step 6.

NO

Replace the audio-navigation unit.

6. Audio-navigation unit check 2 (CAMERA BIT1 line).

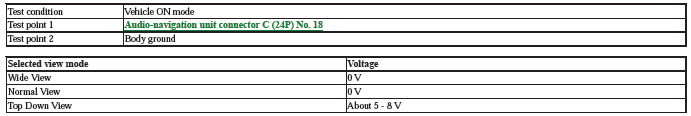

Measure the voltage between test points 1 and 2 as specified in the table.

Audio Visual Systems - Testing & Troubleshooting

Is the voltage OK?

YES

Replace the rearview camera.

NO

Replace the audio-navigation unit.
