Honda HR-V: Parts Marking (KA/KC Models)
To deter vehicle theft, certain major components are marked with the vehicle identification number (VIN). Original parts have self-adhesive labels. Replacement body parts have generic self-adhesive labels. These labels should not be removed. The original engine or transmission VIN plates are not transferable to the replacement engine or transmission.
NOTE: Be careful not to damage the parts' marking labels during body repair. Mask the labels before repairing the part.
UNDER-HOOD EMISSION CONTROL LABEL (KA/KC MODELS)

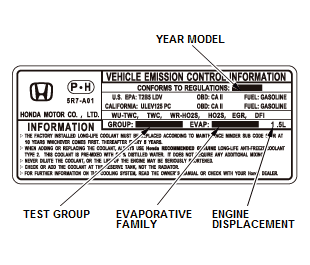

Emission Group Identification
Example:
'16 Model CONFORMS TO REGULATIONS
Test Group and Evaporative Family
Test Group:
- Model Year
G: '16 - Manufacturer Subcode
HNX: Honda - Family Type
V: Passenger Car - Displacement Group
01.8: R18Z9 - Sequence Characters
JA3: '16 model
Evaporative Family:
- Model Year
G: '16 - Manufacturer Subcode
HNX: Honda - Family Type
R: Refueling - Canister Working Capacity Group
- Sequence Characters
VFB: '16 model
VIN, ENGINE, (MOTOR), TRANSMISSION NUMBERS, AND PAINT CODES (KA/KC MODELS)

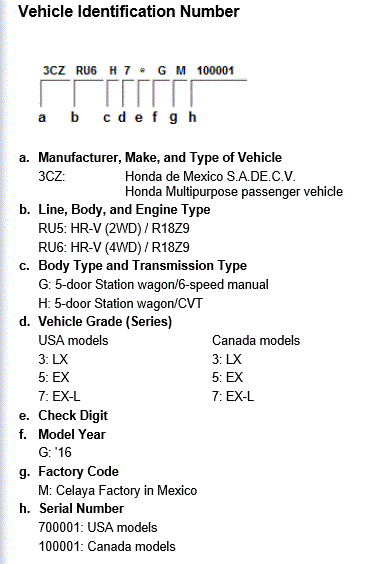

Fig. 1: VIN Body Codes
Engine Number
- Engine Type
R18Z9: 1.8 L SOHC i-VTEC Sequential Multiport Fuel-injected engine - Serial Number
Transmission Number
- Transmission Type
S3JM: 6-speed manual
G2AA: CVT (KA, 2WD)
G2CA: CVT (KC, 2WD)
GPAA: CVT (KA, 4WD)
G5CA: CVT (KC, 4WD) - Serial Number

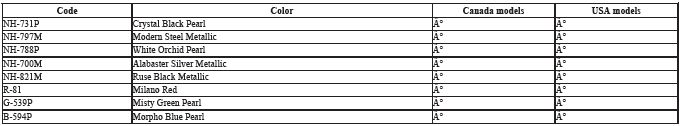

Paint Code

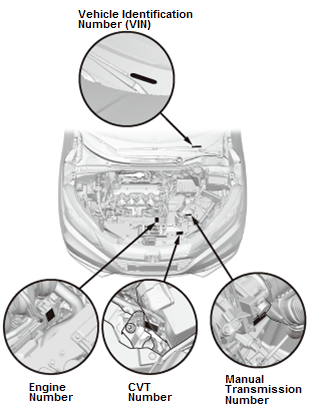

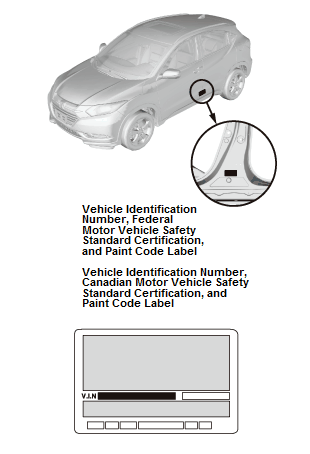

VIN, ENGINE, (MOTOR), AND TRANSMISSION NUMBER LOCATIONS
Engine Compartment:
Front Right Under Floor:
DESIGN SPECIFICATIONS (KA/KC MODELS)
