Honda HR-V: Frame - Service Information

REMOVAL & INSTALLATION

FUEL TANK GUARD REMOVAL AND INSTALLATION

Removal and Installation

2WD

1. Vehicle - Lift

2. Front Fuel Tank Guard - Remove

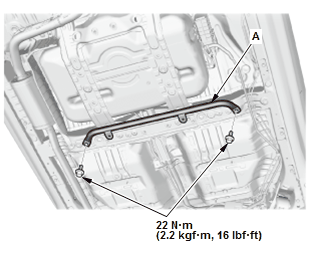

Fig. 1: Front Fuel Tank Guard With Torque Specifications (2WD)

1. Remove the front fuel tank guard (A).

3. Front Floor Undercover - Remove - Refer to: Rear Floor Undercover Removal and Installation (2WD), or Front Floor Undercover Removal and Installation (2WD)

4. Rear Fuel Tank Guard - Remove

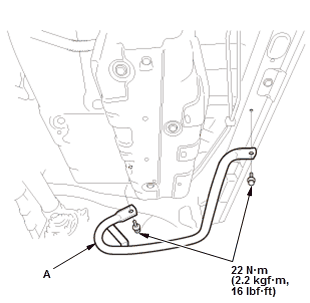

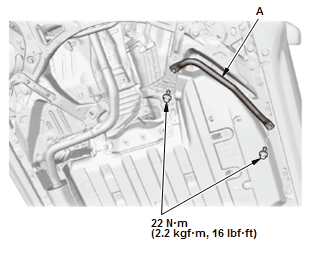

Fig. 2: Rear Fuel Tank Guard With Torque Specifications (2WD)

1. Remove the rear fuel tank guard (A).

5. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

AWD

6. Vehicle - Lift

7. Fuel Tank Guard - Remove

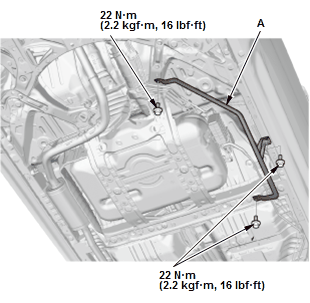

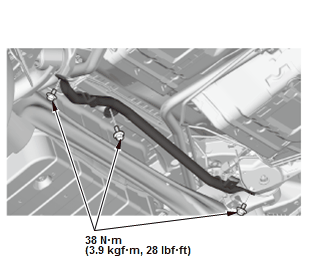

Fig. 3: Fuel Tank Guard With Torque Specifications (AWD)

1. Remove the front fuel tank guard (A).

8. Canister Guard - Remove

Fig. 4: Canister Guard With Torque Specifications (AWD)

1. Remove the canister guard (A).

9. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

PERFORMANCE ROD REMOVAL AND INSTALLATION

Removal and Installation

1. Vehicle - Lift

2. Front Floor Undercover - Remove

1. Remove the front floor undercover - Refer to: Rear Floor Undercover Removal and Installation (2WD), or Front Floor Undercover Removal and Installation (2WD) as needed.

3. Performance Rod - Remove

Fig. 5: Performance Rod With Torque Specifications

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

SUBFRAME REMOVAL AND INSTALLATION

Special Tools Required

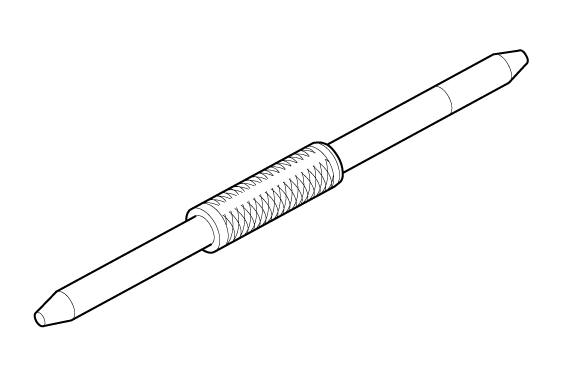

Subframe Alignment Pin 070AGSJAA10S

Removal

1. Front Subframe - Remove

NOTE : After loosing the subframe mounting bolts, be sure to replace them with new ones.

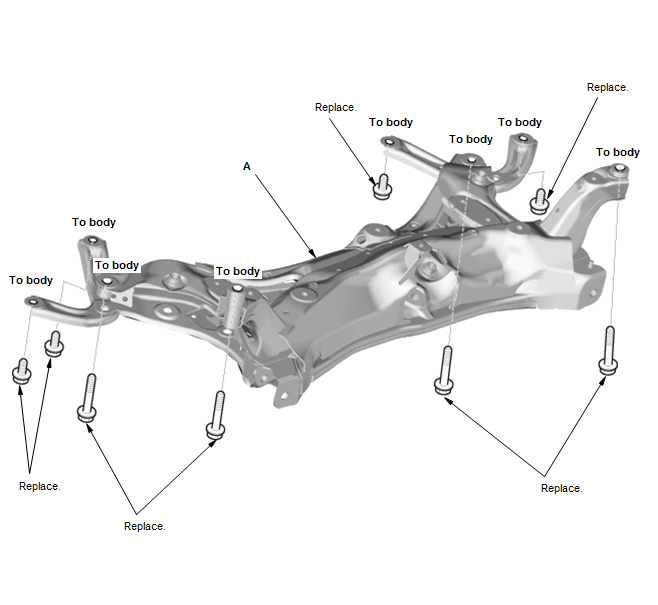

2WD

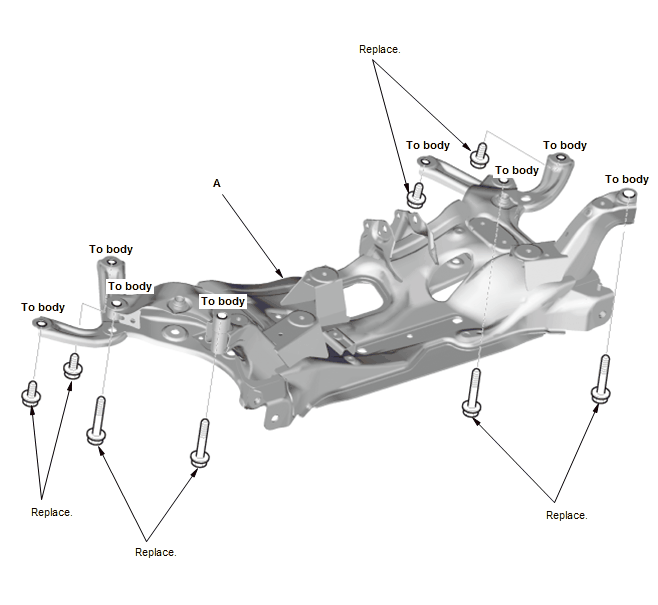

AWD

Installation

1. Front Subframe - Install

NOTE :

• Align the front subframe with the subframe alignment pin.
• After loosing the subframe mounting bolts, be sure to replace them with new ones.

1. Align the front subframe (A) in the following sequence.

1. Lift the front subframe and subframe stays (B) up to the body, and loosely install the new subframe mounting bolts (C, D).
2. Loosely install the new subframe mounting bolts (E).
3. Insert the subframe alignment pin (F) through the right side positioning hole (G) on the subframe, and into the positioning hole (H) on the body, then loosely tighten the right subframe mounting bolt.
4. Insert the subframe alignment pin through the left side positioning hole on the subframe, and into the positioning hole on the body, then loosely tighten the left subframe mounting bolt.
5. Tighten the subframe mounting bolts to the specified torque values starting with the right subframe mounting bolt. Use the subframe alignment pin when tightening the right subframe mounting bolts.
6. Check all of the subframe mounting bolts, and retighten if necessary.

   NOTE : Tighten the bolts in the sequence as shown.

2WD

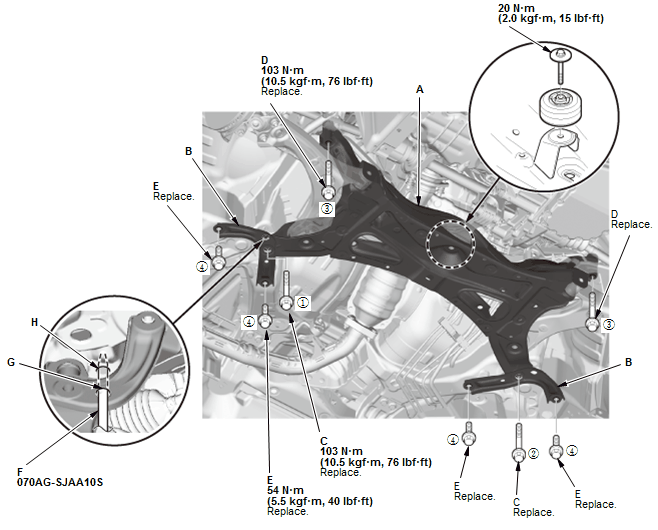

Fig. 6: Front Subframe Tightening Sequence With Torque Specifications (2WD)

AWD

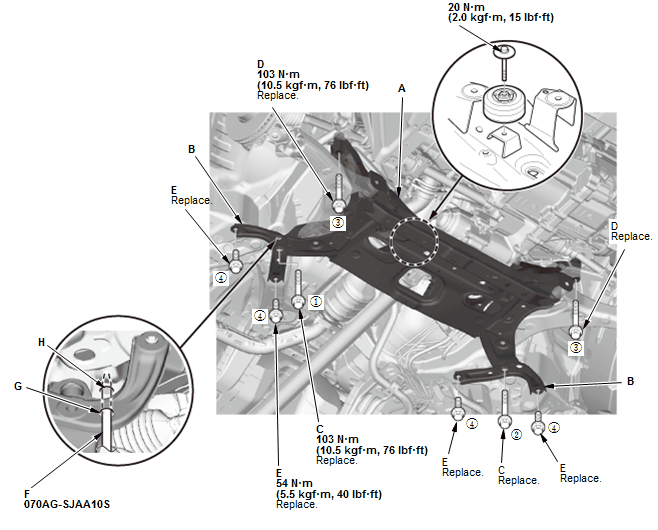

Fig. 7: Front Subframe Tightening Sequence With Torque Specifications (AWD)

2. After reinstalling all removed parts, check and adjust the front wheel alignment.

Frame Component - Location

COMPONENT LOCATION INDEX

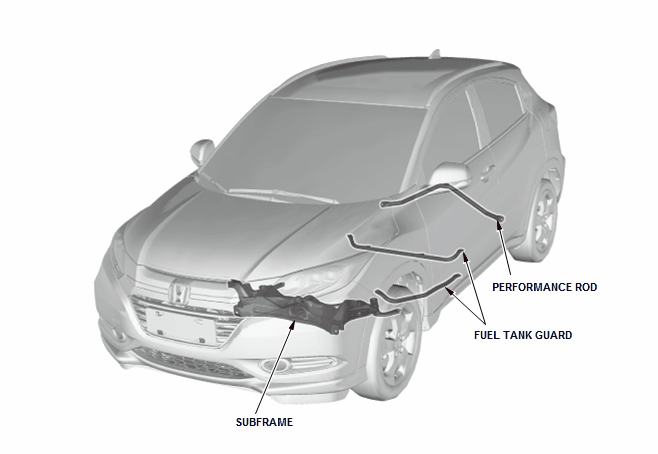

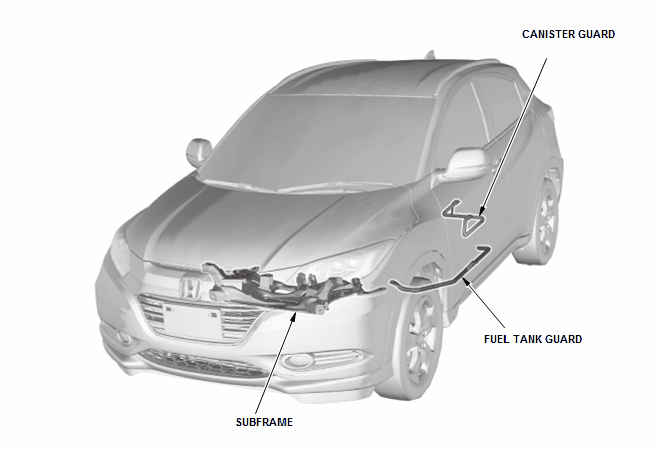

FRAME COMPONENT LOCATION INDEX

2WD

AWD
