Honda HR-V: Rear Door Lower Seal Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Doors - Service Information / Rear Door Lower Seal Removal and Installation

Removal & Installation

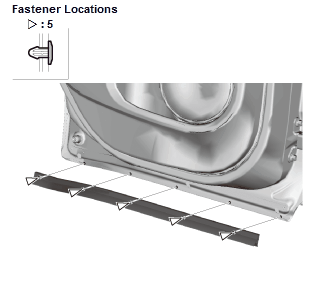

1. Rear Door Lower Seal - Remove

Doors - Service Information

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

REAR DOOR OUTER HANDLE REMOVAL AND INSTALLATION

Removal & Installation

1. Rear Door Quarter Inner Trim - Remove

Doors - Service Information

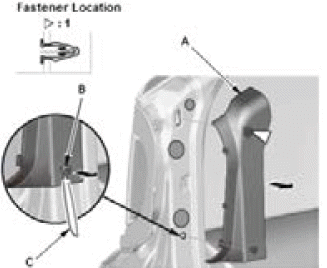

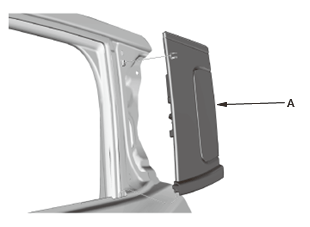

  1. Remove the rear door quarter inner trim (A).

    NOTE : Remove the clip (B) on the lower side with a commercially available trim pad remover (C).

2. Rear Door Outer Handle - Remove

Doors - Service Information

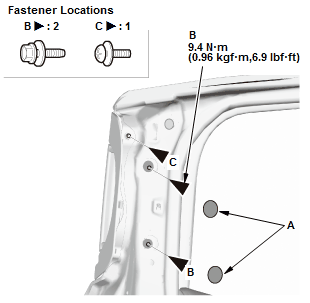

  1. Remove the maintenance hole seals (A), the bolts (B), and the screw (C).

Doors - Service Information

  1. Remove and rotate the rod fastener (A) while holding the rear door outer handle (B), disconnect the outer handle rod (C) with a clip remover.

Doors - Service Information

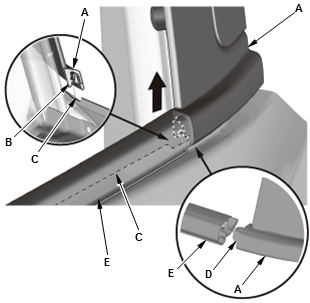

  1. Lift up the rear door outer handle (A), and release the hook (B) of the rear door outer handle from the door (C)
  2. Release the hook (D) of the rear door outer handle from the rear door glass outer weatherstrip (E).

Doors - Service Information

  1. Remove the rear door outer handle (A).

Doors - Service Information

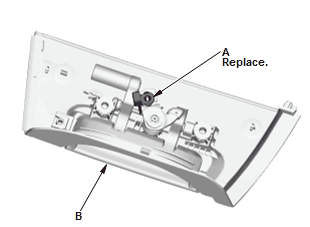

  1. Remove the rod fastener (A) from the rear door outer handle (B), then replace it with a new one.

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
