Honda HR-V: Rear Hub Bearing Unit Removal and Installation (2WD)

Honda HR-V (2015-2021) Service Manual / Suspension System / Suspension System - Service Information / Rear Hub Bearing Unit Removal and Installation (2WD)

Exploded View

1. Hub Bearing Unit - Exploded View

Exploded View

Suspension System - Service Information

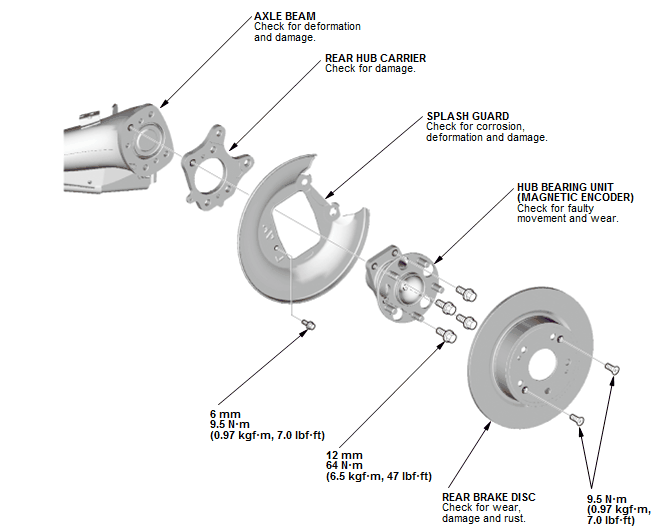

Fig. 24: Rear Hub bearing Exploded View With Torque Specifications

Removal & Installation

NOTE: Refer to the Exploded View as needed during the following procedures.

1. Vehicle - Lift

2. Rear Wheel - Remove

3. Parking Brake - Release

4. Rear Brake Calliper - Remove

5. Rear Brake Disc - Remove

6. Connector (Wheel Speed Sensor) - Disconnect

Suspension System - Service Information

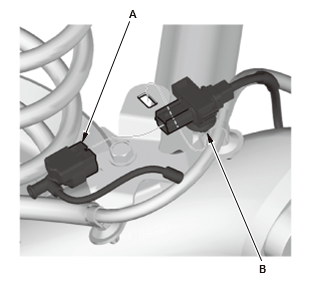

  1. Disconnect the connector (A)
  2. Remove the connector clamp (B).

7. Hub Bearing Unit - Remove

Suspension System - Service Information
Fig. 25: Rear Hub Bearing Mounting Bolts Torque Specifications

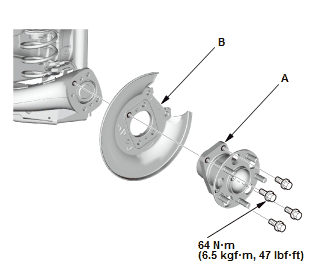

  1. Remove the hub bearing unit (A) and the splash guard/rear hub carrier (B).

    NOTE:

    • Be careful not to damage the rear wheel speed sensor harness.
    • Keep the wheel bearing/encoder away from any magnetic field. The encoder can be damaged or erased.

Suspension System - Service Information

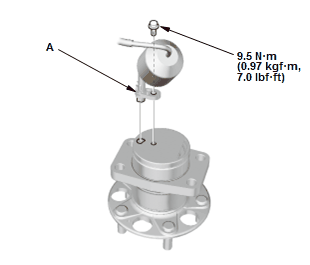

  1. Remove the wheel speed sensor (A).

8. All Removed Parts - Install

  1. Install the hub bearing unit in the reverse order of removal.
